Xerox C240 / C300 Color Printer Parts
« Back to the Xerox C240 / C300 Color Printer
📖 Xerox C240 / C300 Color Printer: Complete Technical Guide
New and refurbished field-replaceable parts for the Xerox C240 / C300 Color Printer. Please call 1-888-742-9565 for parts pricing and availability.

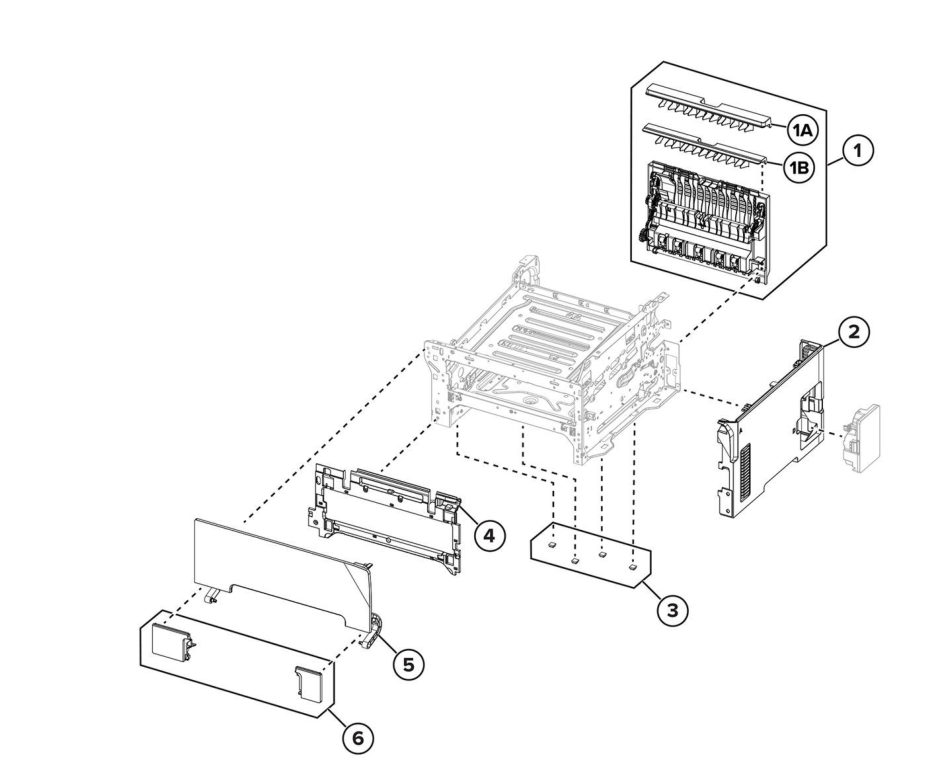

Covers
| Item | Part # | Description |
|---|
| 1 | 948K50860 | Door B |
| 2 | 948K50870 | Right cover |
| 3 | 004E34930 | Rubber feet |
| 4 | 822E89670 | Inner front cover |
| 5 | 948K50910 | Door A |
| 6 | 948K50880 | Lower front cover |

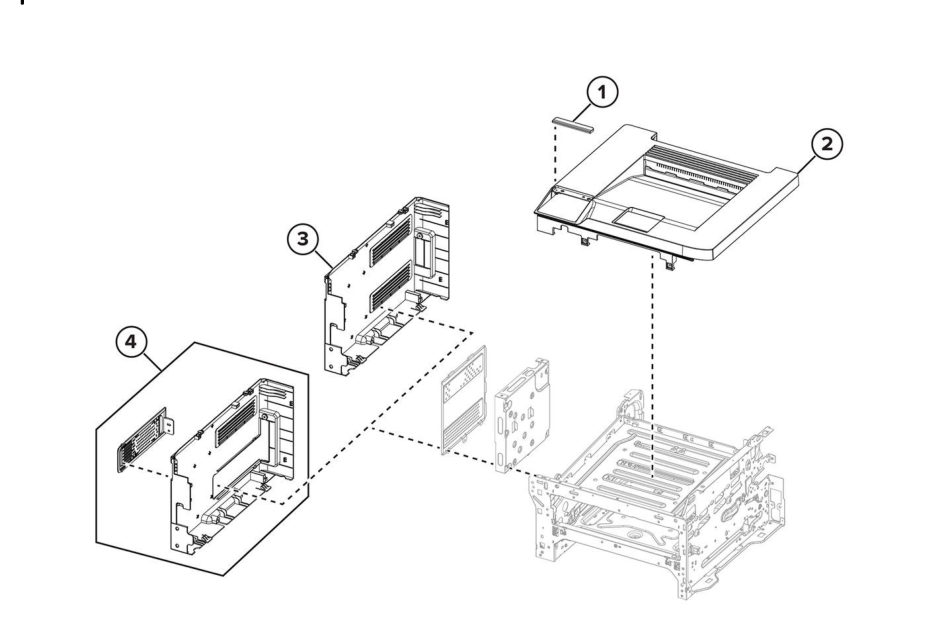

Top and left covers
| Item | Part # | Description |
|---|
| 1 | 056E06110 | Bezel for C240 |
| 1 | 056E06150 | Bezel for C300 |
| 2 | 948K50850 | Top cover |
| 3 | 822E89650 | Left cover for C240 |
| 4 | 948K50920 | Left cover for C300, C2432 |

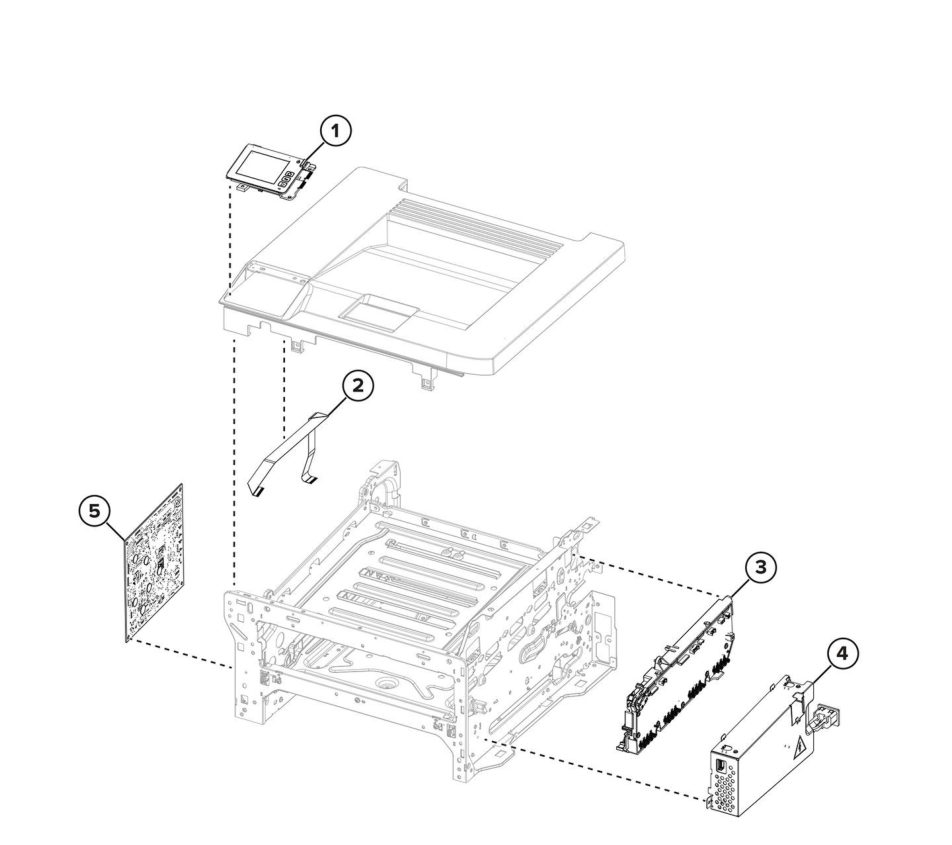

Electronics
| Item | Part # | Description |
|---|
| 1 | 948K50890 | Control panel |
| 2 | 023K01820 | Flat cables for C240 |
| 2 | 023K01830 | Flat cables for C300, C2432 |
| 3 | 105K44700 | High voltage power supply |
| 4 | 105K44690 | Low voltage power supply, 100/110 V |
| 4 | 105K44680 | Low voltage power supply (LVPS), 220 V |
| 5 | 961K18670 | Controller board for C240 |
| 5 | 961K18710 | Controller board for C300, C2432 |

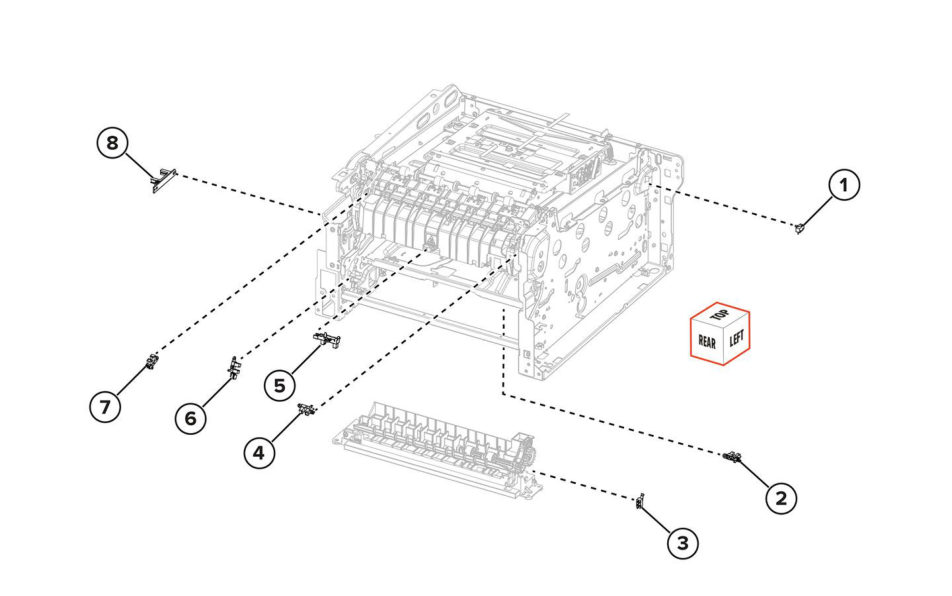

Sensors
| Item | Part # | Description |
|---|
| 1 | 110N01560 | Printhead interlock switch |
| 2 | 130N01897 | Sensor (manual feeder) |
| 3 | 110N01561 | Tray interlock switch |
| 4 | 130N01897 | Sensor (fuser exit) |
| 5 | 130N01897 | Sensor (fuser buckle) |
| 6 | 130N01897 | Sensor (input) |
| 7 | 130N01897 | Sensor (bin/narrow media) |
| 8 | 130N01904 | Sensor (waste toner bottle) |

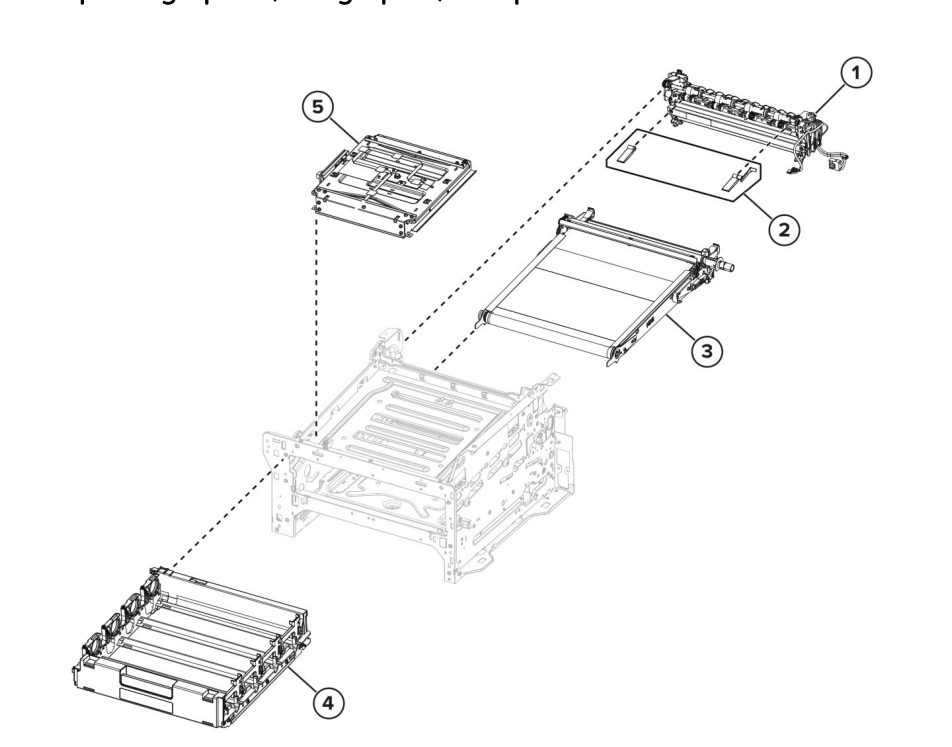

Electrophotographic (xerographic) components
| Item | Part # | Description |
|---|
| 1 | 121K76830 | Fuser, 100 V |
| 1 | 121K76820 | Fuser, 110 V |
| 1 | 121K76810 | Fuser, 220 V |
| 2 | 120N00572 | Bin flag |
| 3 | 133N23276 | Transfer module |
| 4 | 050N00712 | Print cartridge tray |
| 5 | 046N00242 | Printhead for C240 |
| 5 | 046K02320 | Printhead for C300, C2432 |

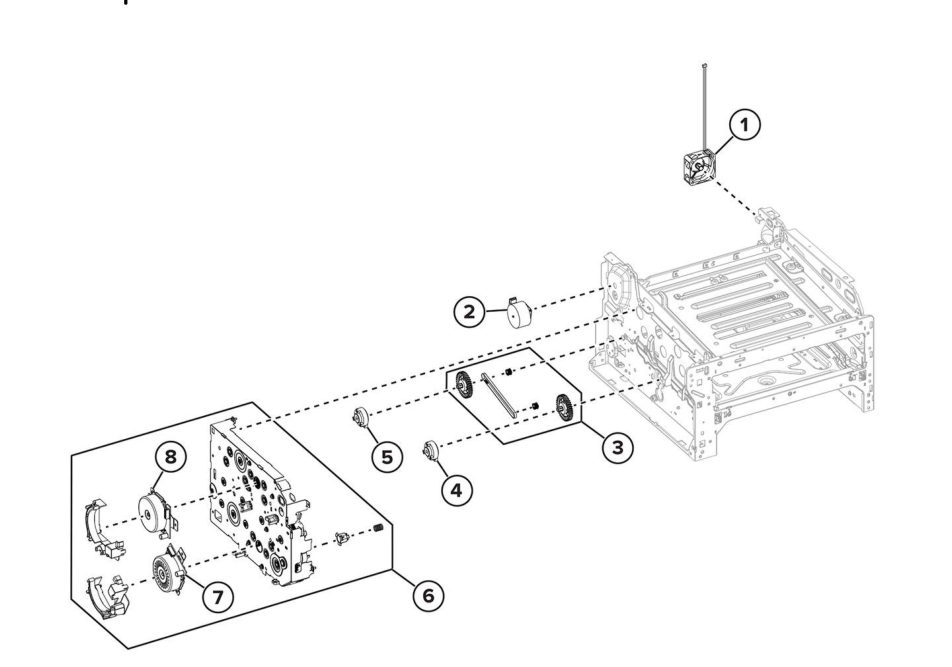

Drive components
| Item | Part # | Description |
|---|
| 1 | 127N07967 | Exhaust fan |
| 2 | 127N07963 | Motor (fuser) for C240 |
| 2 | 127N07961 | Motor (fuser) for C300, C2432 |
| 3 | 023N01404 | Belt, gear, and pulley |
| 4 | 005N01213 | Staging clutch |
| 5 | 005N01213 | Pick clutch |
| 6 | 007K32490 | Gearbox for C240 |
| 6 | 007K32480 | Gearbox for C300, C2432 |
| 7 | 127N07962 | Motor (K/transfer belt) |
| 8 | 127E20620 | Motor (CMY) |

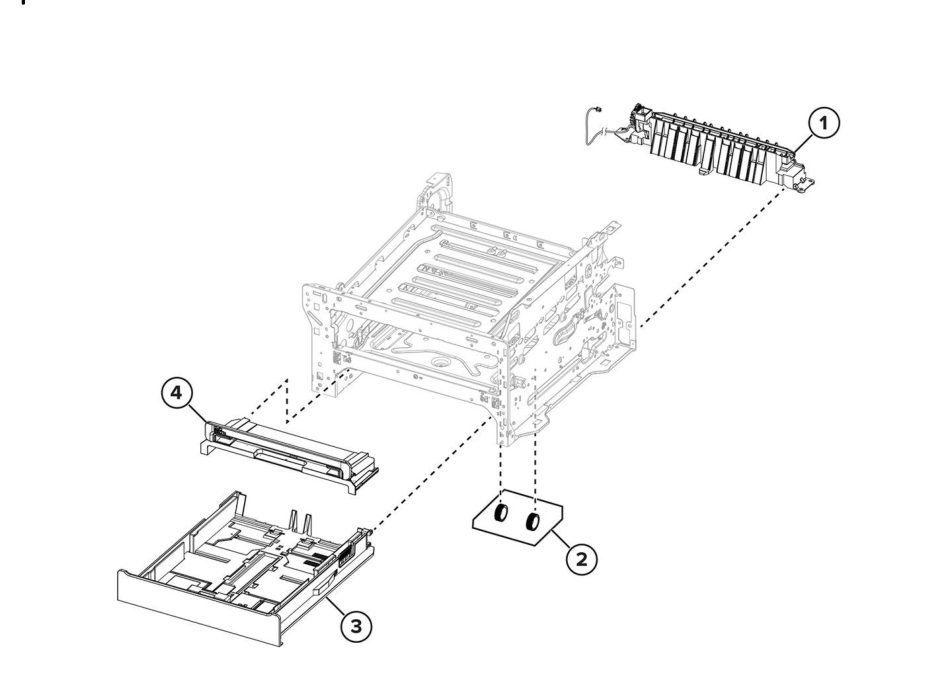

Paper feed
| Item | Part # | Description |
|---|
| 1 | 014K13810 | Separator bracket for C240 |
| 1 | 014K13800 | Separator bracket for C300, C2432 |
| 2 | 022N02905 | Pick rollers |
| 3 | 850K09480 | Tray insert |
| 4 | 059E21650 | Manual feeder |

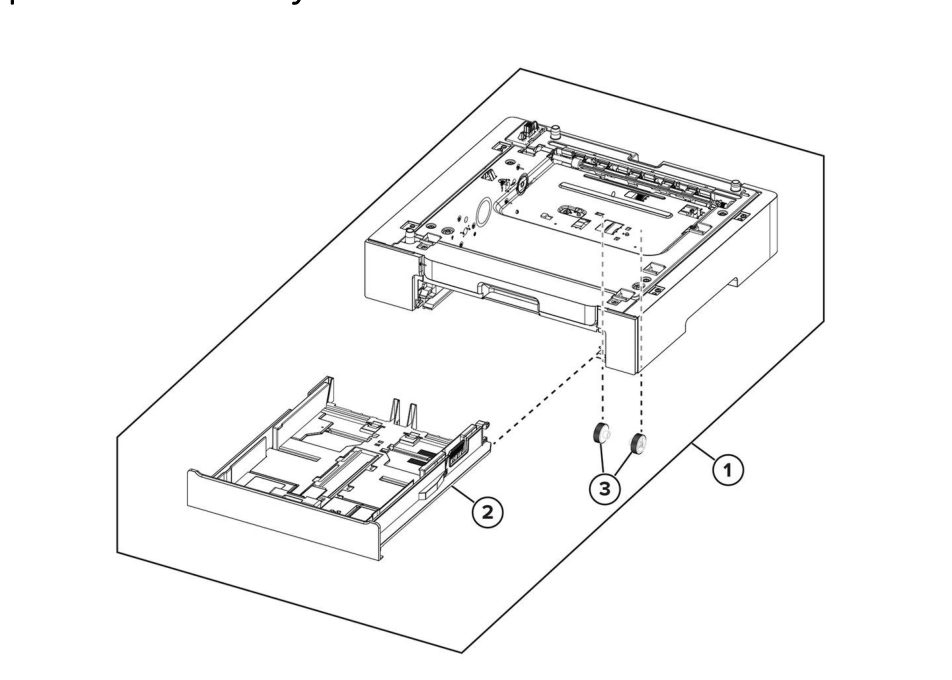

Optional 250-sheet tray
| Item | Part # | Description |
|---|
| 1 | 850K09510 | Optional 250-sheet tray |
| 2 | 850K09480 | 250-sheet tray insert |
| 3 | 022N02905 | Pick tires |
