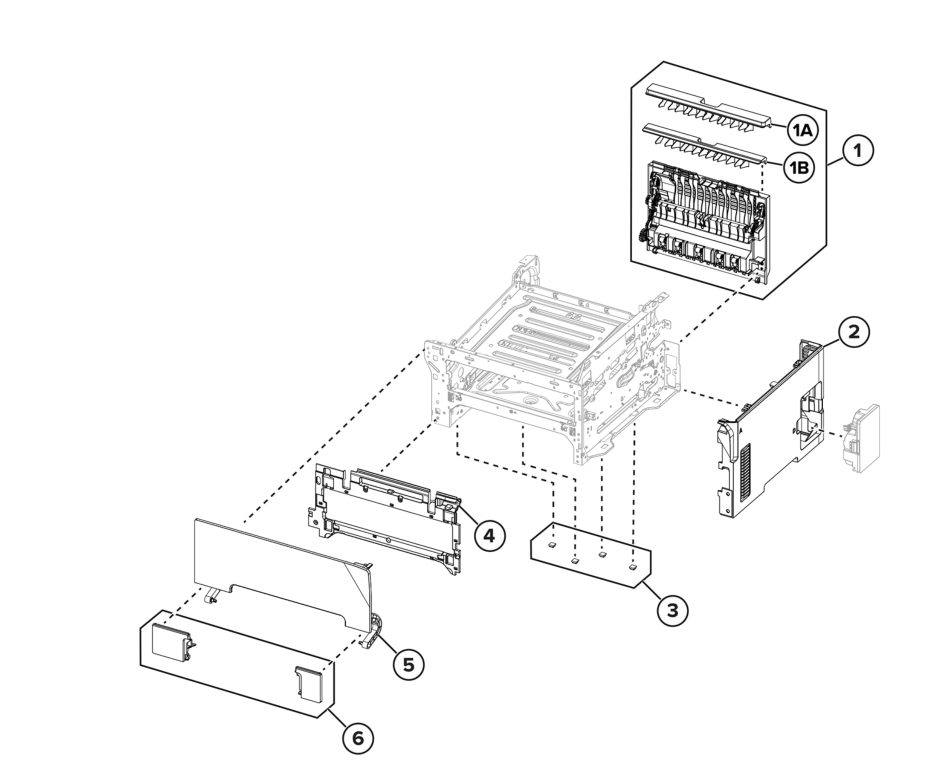

Covers
| Item | Part # | Description |
|---|
| 1 | 948K50860 | Door B |
| 2 | 948K50870 | Right cover |
| 3 | 004E34930 | Rubber feet |
| 4 | 822E89670 | Inner front cover |
| 5 | 948K50840 | Door A |
| 6 | 948K50880 | Lower front cover |

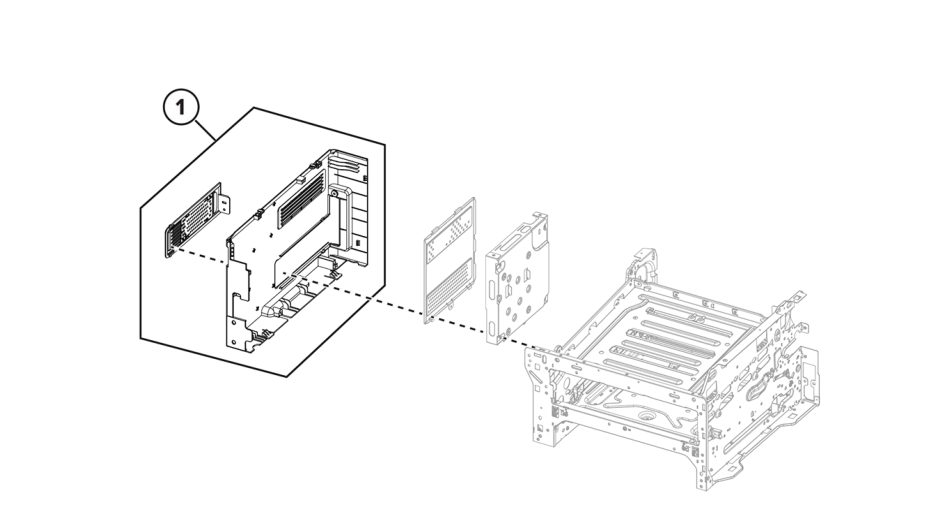

Left covers
| Item | Part # | Description |
|---|
| 1 | 822E89650 | Left cover |

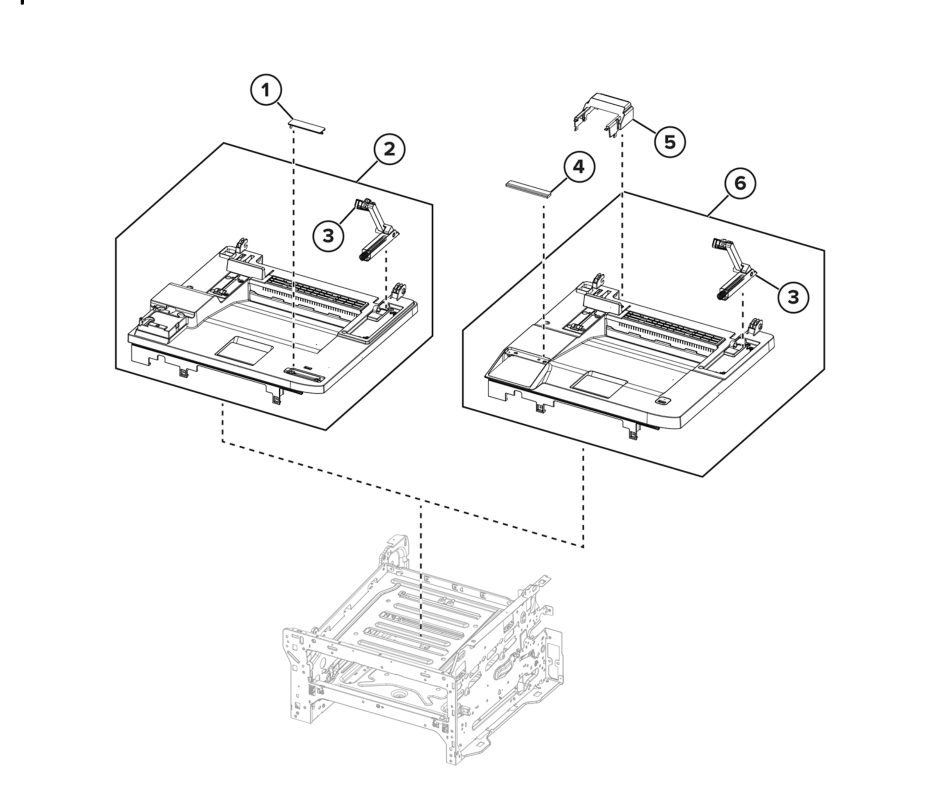

Top covers
| Item | Part # | Description |
|---|
| 1 | 056E06170 | Bezel for XC2432 |
| 1 | 056E06120 | Bezel for C305ae |
| 1 | 971E18590 | Bezel for ZC364 |
| 2 | 948K50830 | Top cover for C305ae, XC2432, ZC364 |
| 3 | 029N00447 | Scanner pivot arm |
| 4 | 056E06100 | Bezel for C245 |
| 4 | 971E18580 | Bezel for C255a |
| 4 | 056E06140 | Bezel for C303a |
| 5 | 822E89660 | Fax card cover for C255a, C303a, C305ae, |
| 6 | 948K50820 | Top cover for C245, C255a, C303a |

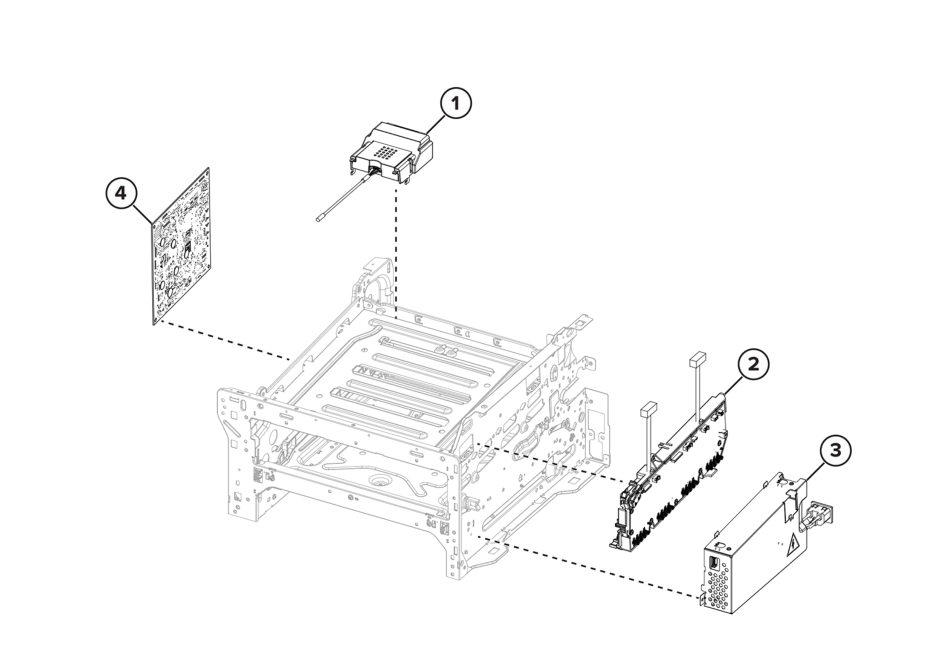

Electronics
| Item | Part # | Description |
|---|
| 1 | 961K18700 | Fax card for C305ae, XC2432, ZC364 |
| 2 | 105K44700 | High voltage power supply |
| 3 | 105K44690 | Low voltage power supply, 110 / 100 V |
| 3 | 105K44680 | Low voltage power supply, 220V |
| 4 | 961K18690 | Controller board for C305ae, XC2432, |

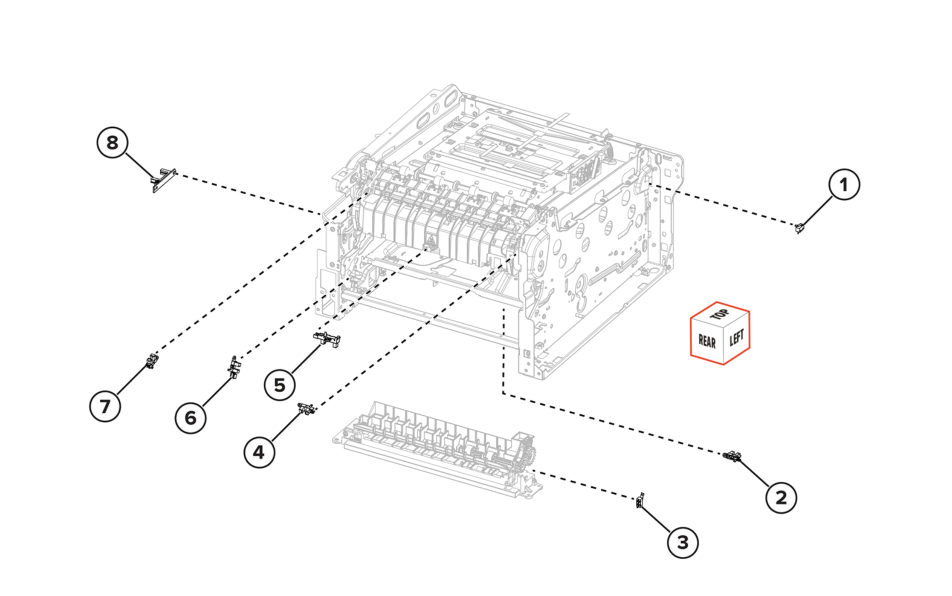

Sensors
| Item | Part # | Description |
|---|
| 1 | 110N01560 | Printhead interlock switch |
| 2 | 130N01897 | Sensor (manual feeder) |
| 3 | 110N01561 | Tray interlock switch |
| 4 | 130N01897 | Sensor (fuser exit) |
| 5 | 130N01897 | Sensor (fuser buckle) |
| 6 | 130N01897 | Sensor (input) |
| 7 | 130N01897 | Sensor (bin/narrow media) |
| 8 | 130N01904 | Sensor (waste toner bottle) |

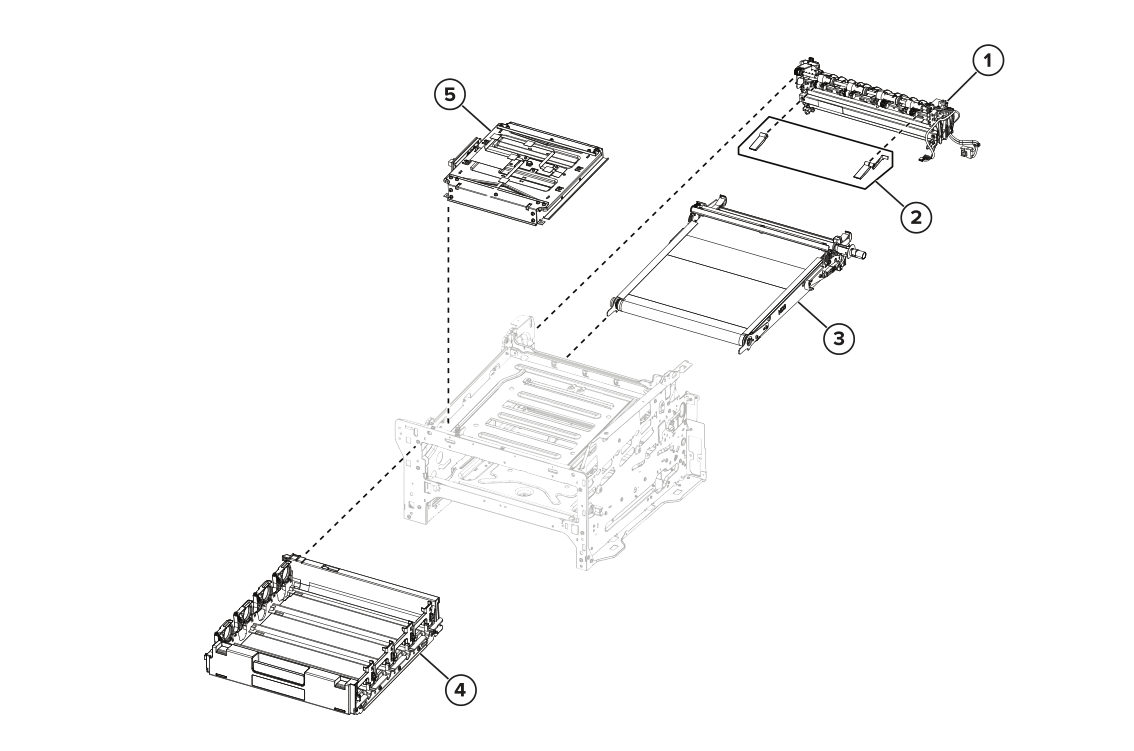

Electrophotographic (xerographic) components
| Item | Part # | Description |
|---|
| 1 | 121K76830 | Fuser, 100 V |
| 1 | 121K76820 | Fuser, 110 V |
| 1 | 121K76810 | Fuser, 220 V |
| 2 | 120N00572 | Bin flag |
| 3 | 133N23276 | Transfer module |
| 4 | 050N00712 | Print cartridge tray |
| 5 | 046N00242 | Printhead for C245, C255a |
| 5 | 046K02320 | Printhead for C305ae, XC2432, ZC364 |

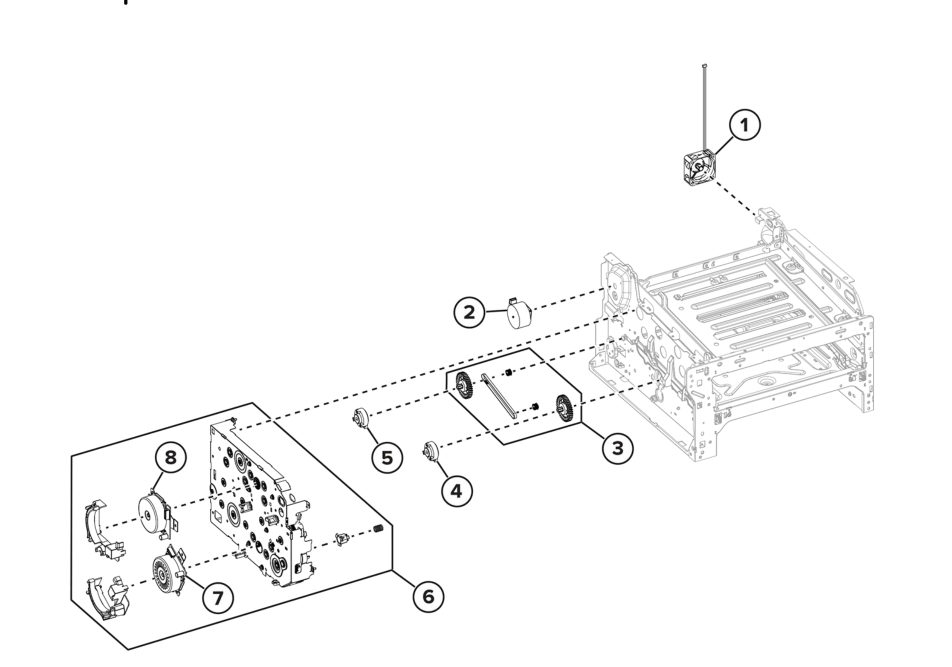

Drive components
| Item | Part # | Description |
|---|
| 1 | 127N07967 | Exhaust fan |
| 2 | 127N07961 | Motor (fuser) for C305ae, XC2432, ZC364 |
| 3 | 023N01404 | Belt, gear, and pulley |
| 4 | 005N01213 | Staging clutch |
| 5 | 005N01213 | Pick clutch |
| 6 | 007K32480 | Gearbox for C305ae, XC2432, ZC364 |
| 7 | 127N07962 | Motor (K/transfer belt) |
| 8 | 127E20620 | Motor (CMY) |

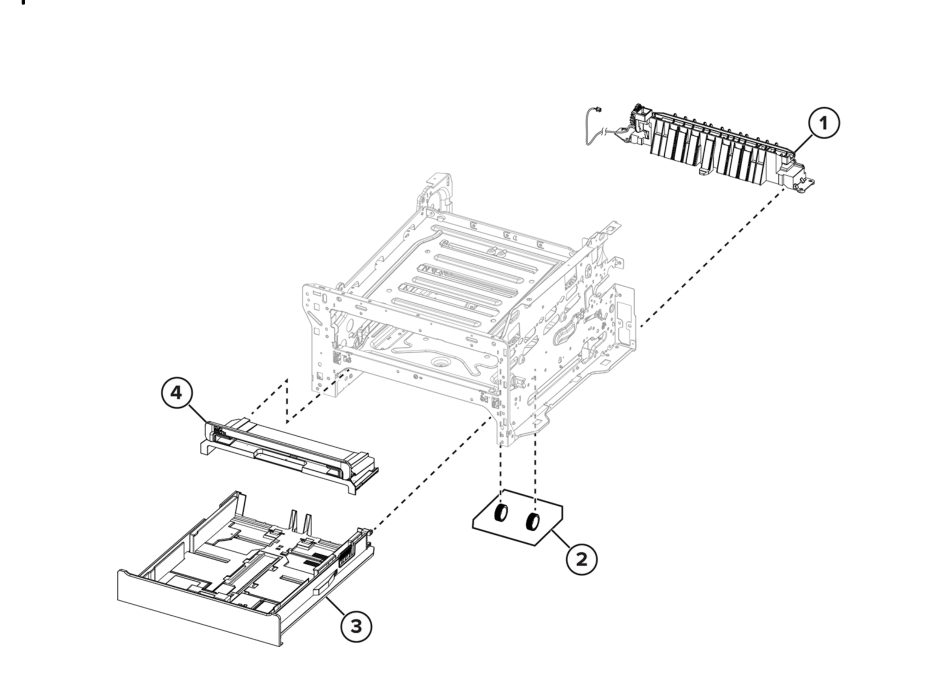

Paper feed
| Item | Part # | Description |
|---|
| 1 | 014K13800 | Separator bracket for C305ae XC2432, |
| 2 | 022N02905 | Pick rollers |
| 3 | 850K09480 | Tray insert |
| 4 | 059E21650 | Manual feeder |

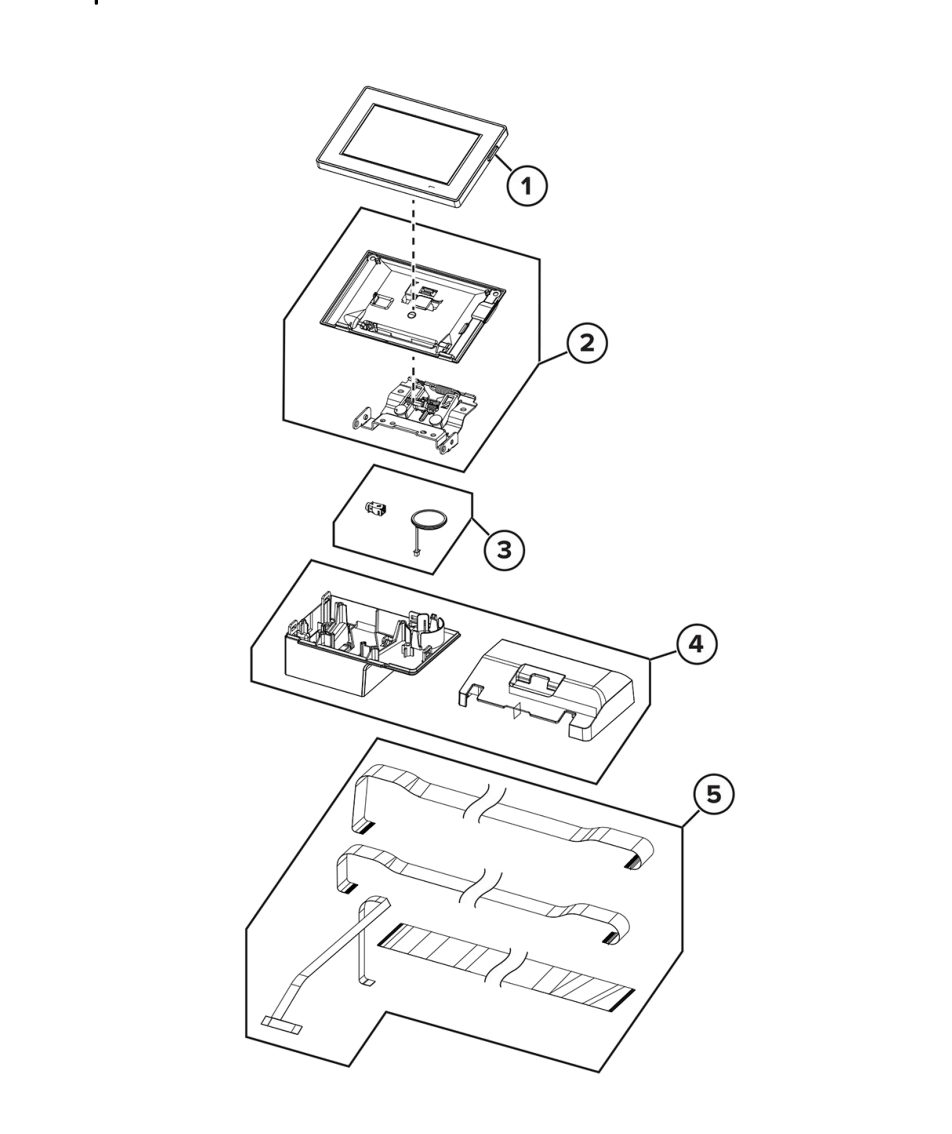

Control panel
| Item | Part # | Description |
|---|
| 1 | 948K50900 | Control panel |
| 2 | 003K29910 | Rear cover and hinge |
| 3 | 930K12790 | Headphone jack and speaker |
| 4 | 822E91560 | Control panel housing |
| 5 | 023K01840 | Flat cables |

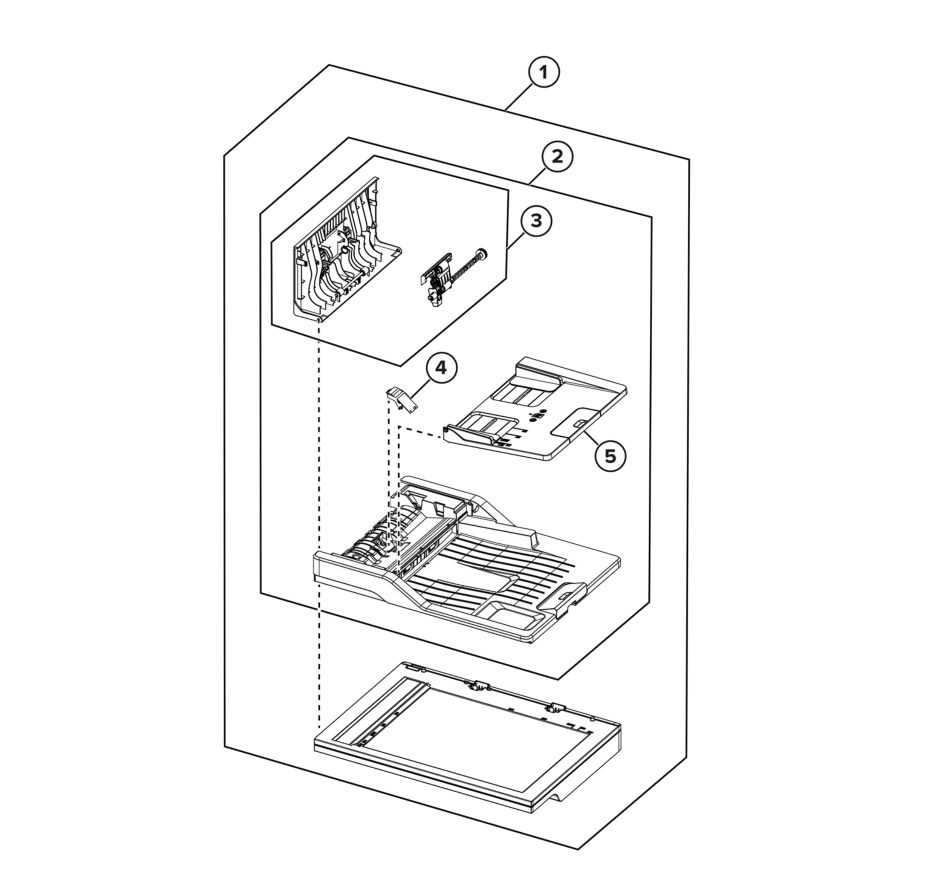

Flatbed scanner and ADF
| Item | Part # | Description |
|---|
| 1 | 133K36140 | Flatbed scanner and ADF for C305ae, |
| 2 | 133K36120 | ADF for C305ae, XC2432, ZC364 |
| 3 | 948K50930 | ADF cover |
| 4 | 019N01154 | ADF separator pad |
| 5 | 850K09490 | ADF tray |

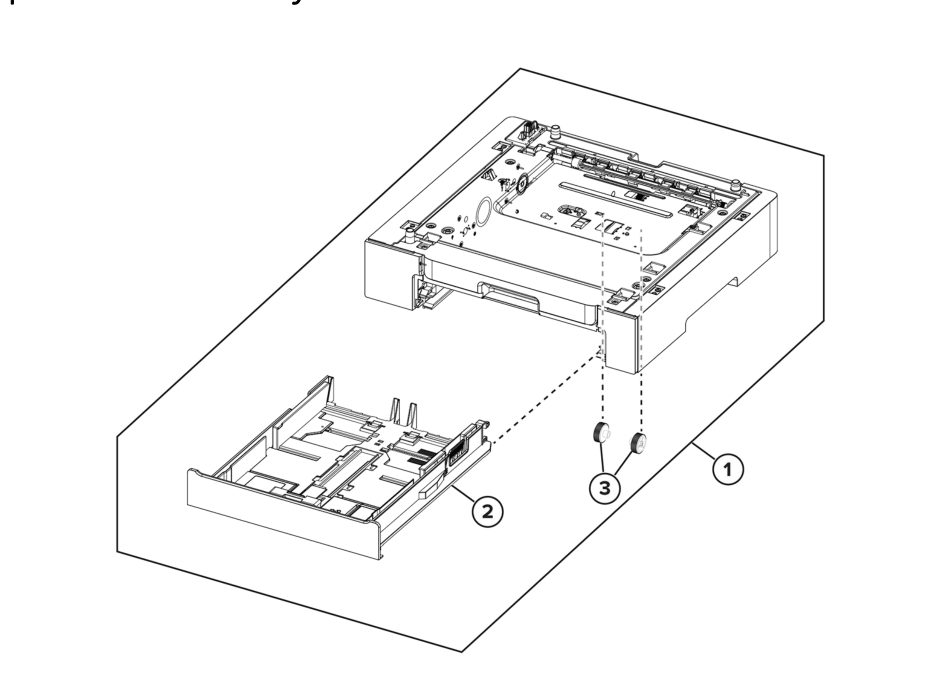

Optional 250-sheet tray
| Item | Part # | Description |
|---|
| 1 | 850K09510 | Optional 250-sheet tray |
| 2 | 850K09480 | 250-sheet tray insert |
| 3 | 022N02905 | Pick tires |
