Xerox Versalink C400 and C405 Parts

-- select -- AMT Datasouth Parts Brother Printer Parts Canon imagePROGRAF iPF610 Parts Compuprint Parts Dascom Parts Dell Laser Printer Parts Epson Parts Fujitsu Printer Parts Genicom Parts Godex Printer Parts HP Parts for Printers, MFPs, & Scanners IBM Infoprint Parts Ithaca Parts Konica Parts Lexmark Parts for Printers and Scanners Oki Parts (Okidata Parts) Olivetti Parts OTC (Output Technology) Parts Printek Parts Printronix Parts PSI Parts Ricoh Parts Samsung Printer and MFP Parts Sato Parts Sharp Printer Parts Source Technologies Parts Tally Parts Tharo Parts Toshiba Parts TSC Parts Videojet Spare Parts Visioneer Parts Xerox Parts Zebra Parts

-- select -- Xerox 4500 Parts Xerox 6510 & WC6515 Parts Xerox B210 Parts Xerox B400 & B405 Parts Xerox B410 Parts Xerox C315 Parts Xerox C410 Parts Xerox DocuMate 150 152i Parts Xerox DocuMate 2x2 Parts Xerox DocuMate 3220 Scanner Parts Xerox DocuMate 752 Parts Xerox DocuMate DM3920 Parts Xerox DocuPrint N4525 Parts Xerox Finisher (Stacker/Stapler) 7700FNS/A Parts Xerox Phaser 4500 4510 Parts Xerox Phaser 4600 & 4620 Parts Xerox Phaser 5500 & 5550 Finisher 097S03282 Parts Xerox Phaser 5500 and 5550 Options Parts Xerox Phaser 5500 and 5550 Parts Xerox Phaser 6000/6010 WC 6015 MFP Parts Xerox Phaser 6180MFP Parts Xerox Phaser 6500 & WorkCentre 6505 Parts Xerox Phaser 6600 & WorkCentre 6605 Parts Xerox Phaser 7700 Parts Xerox Phaser 7750 Parts Xerox Phaser 8400/8500/8550/8560 Parts Xerox Versalink B625 Parts Xerox Versalink C400 and C405 Parts Xerox VersaLink C625 Parts Xerox WorkCentre 3010 3040 3045 Parts Xerox WorkCentre 7132 and Options Parts Xerox WorkCentre C2424 Copier Printer Xerox WorkCentre WC 7525, 7530, 7535, 7545, 7556 Parts

Looking for whole machines? Click here

Please call for parts

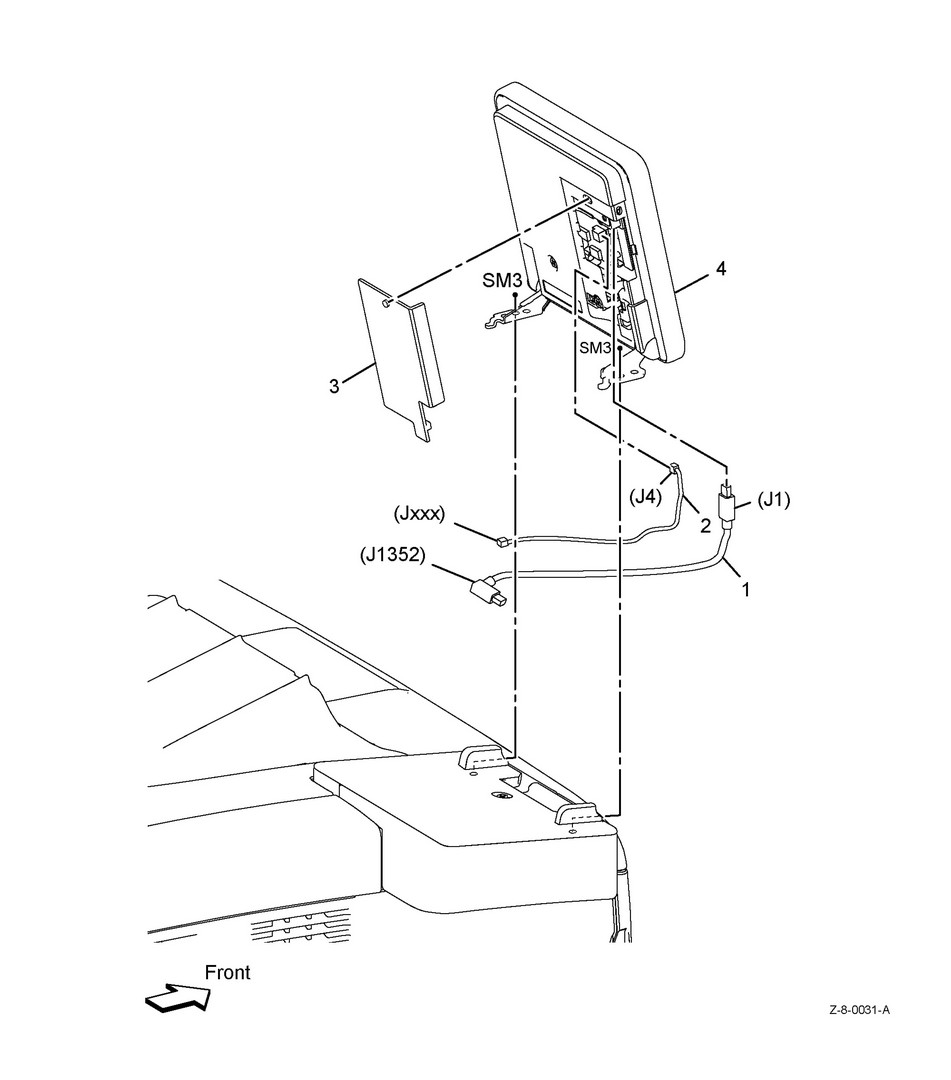

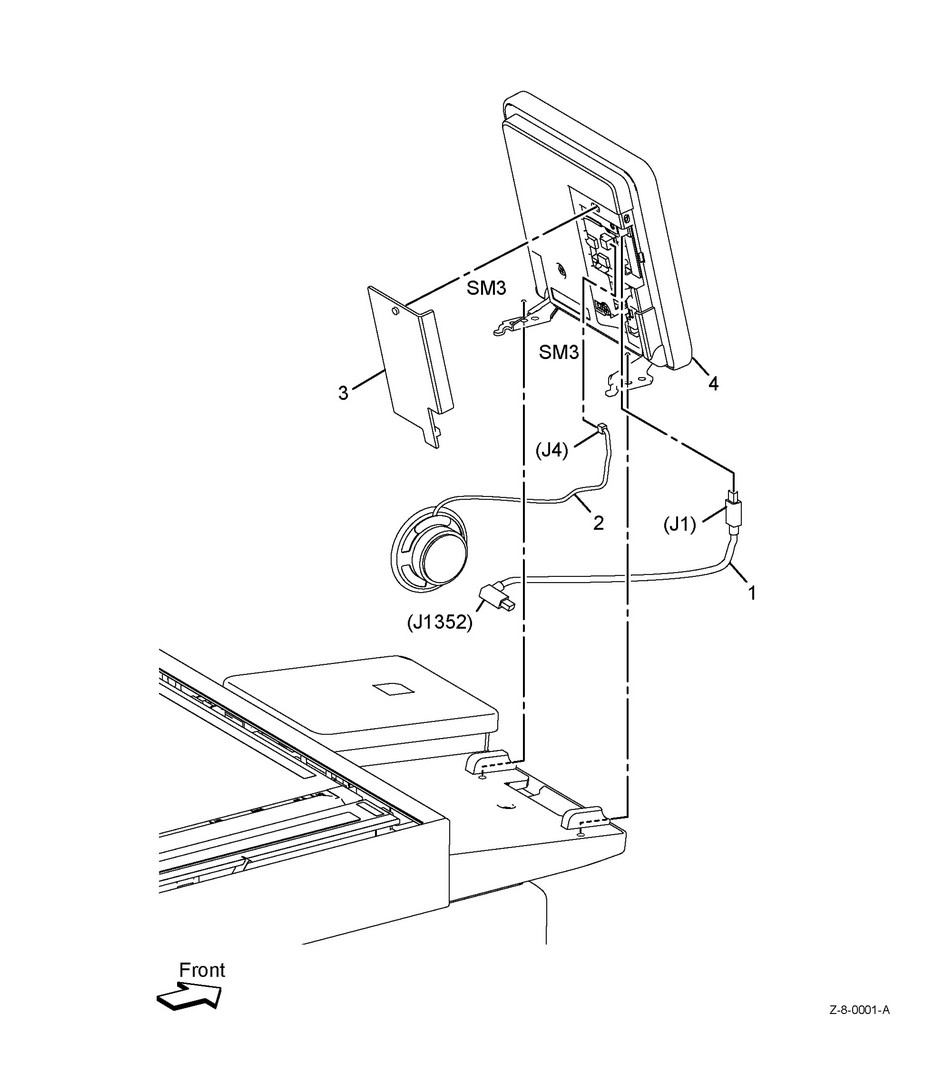

1 1 952K38420 UI harness assembly C400 (REP 1.1) 2 - Speaker harness (Not Spared) 3 822E32001 UI access door 4 948K20152 UI console assembly C400 (REP

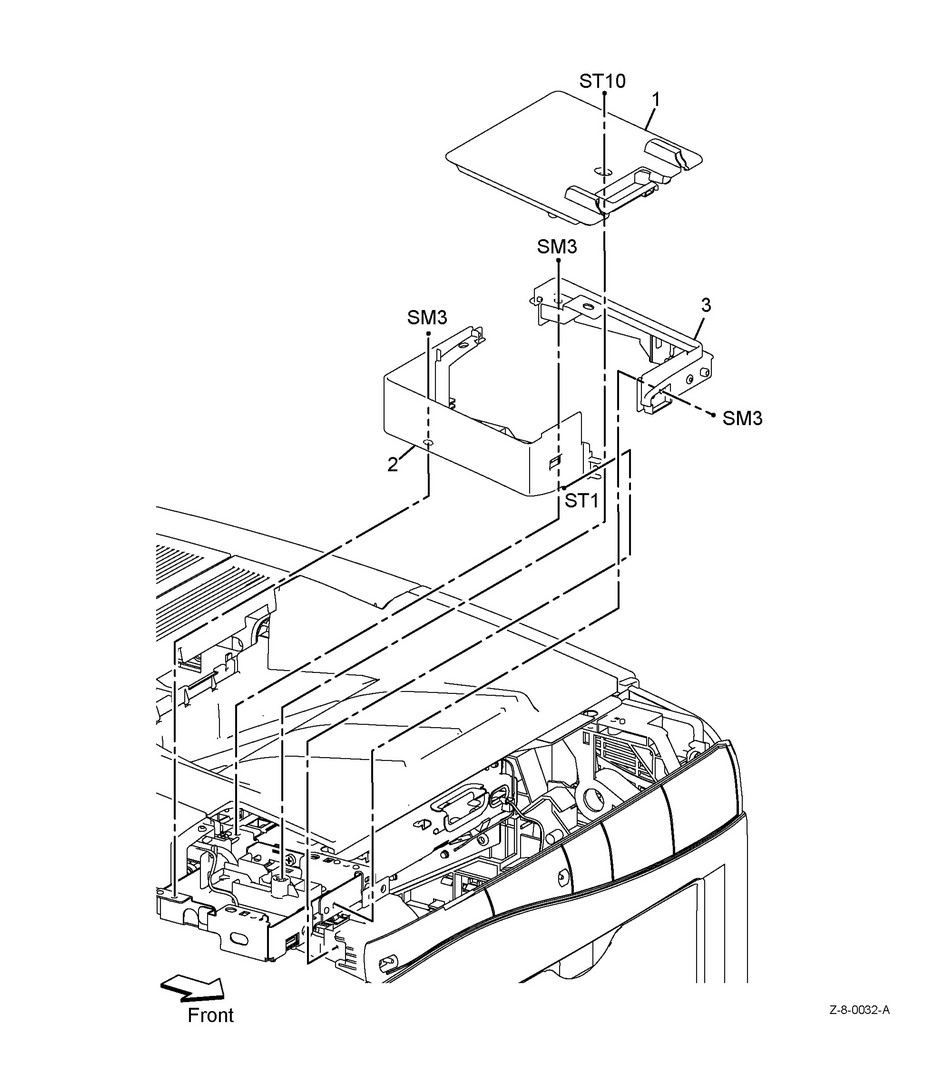

3 1 - UI top cover (Not Spared) 2 822E29781 UI bottom left cover (REP 1.5) 3 - UI bottom right cover (Not Spared) (REP 1.6)

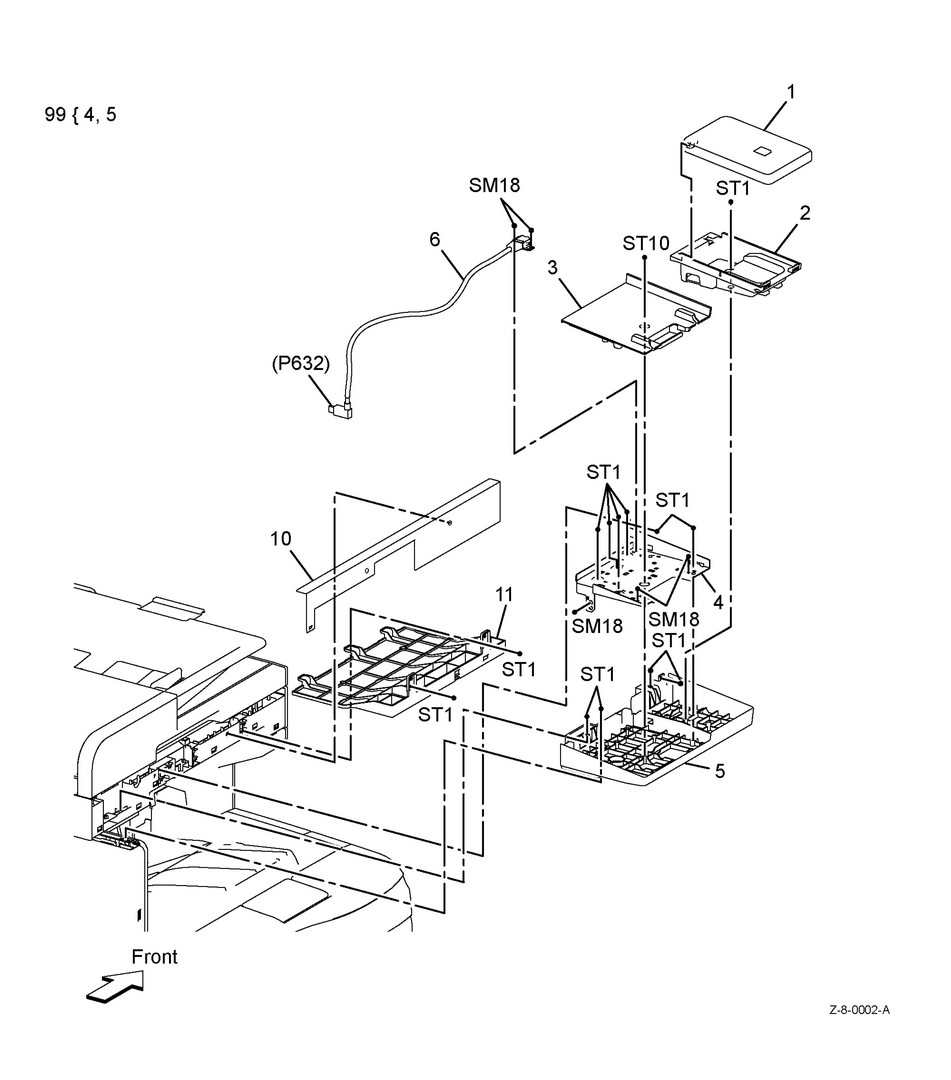

4 1 822E31951 ICCR top cover 2 - ICCR inner cover (Not Spared) 3 - UI base top cover (Not Spared) 4 - Bottom plate (P/O PL 1.2B Item 99 5 - UI bottom base cover (P/O PL 1.2B Item 99) 6 - ICCR USB harness assembly (Not Spared) (REP 1.4) 7 - Not Used 8 - Not Used 9 - Not Used 10 822E34292 IIT front cover 11 - IIT front under cover (Not Spared) 99 607K03890 UI bottom base kit

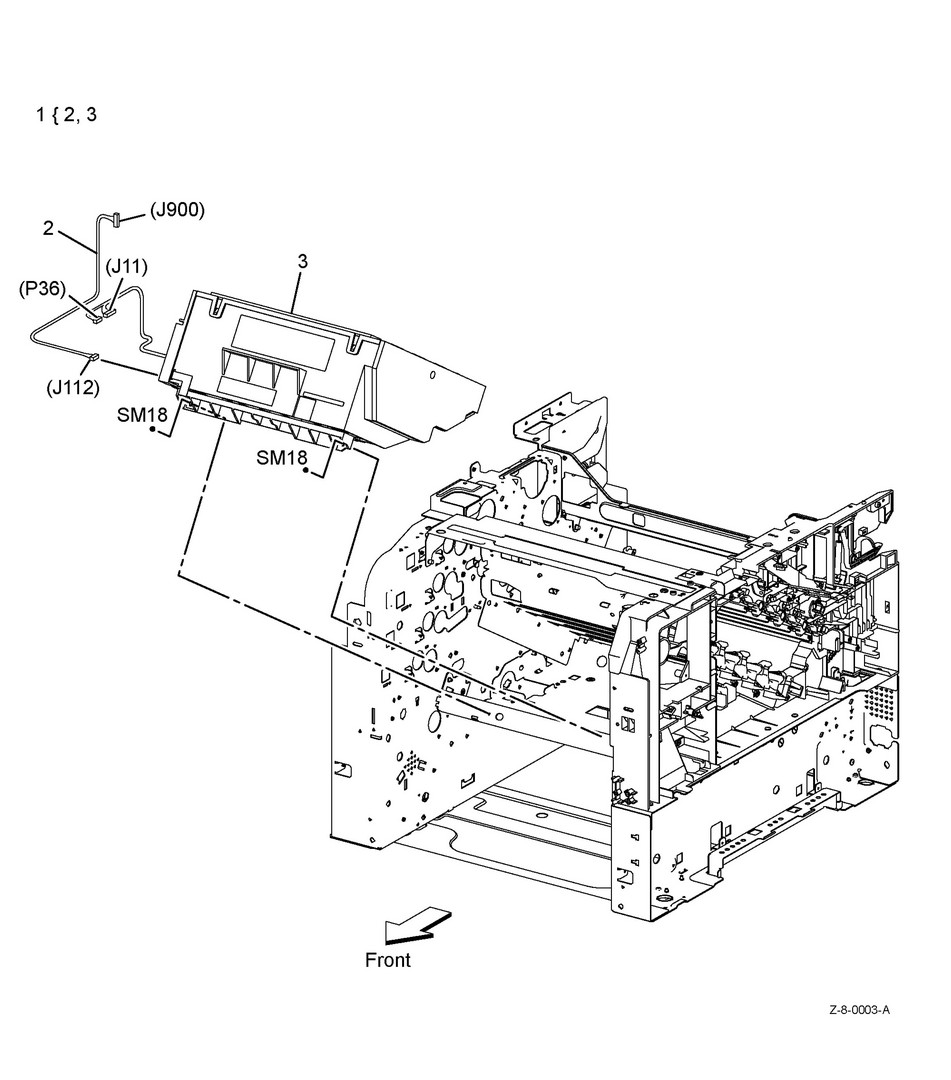

5 1 062K24638 ROS assembly (110V) (REP 2.1) 1A 062K27951 ROS assembly (220V) (REP 2.1) 2 - Video harness assembly (P/O PL 2.1 Item 1) 3 - ROS sub assembly (P/O PL 2.1 Item 1)

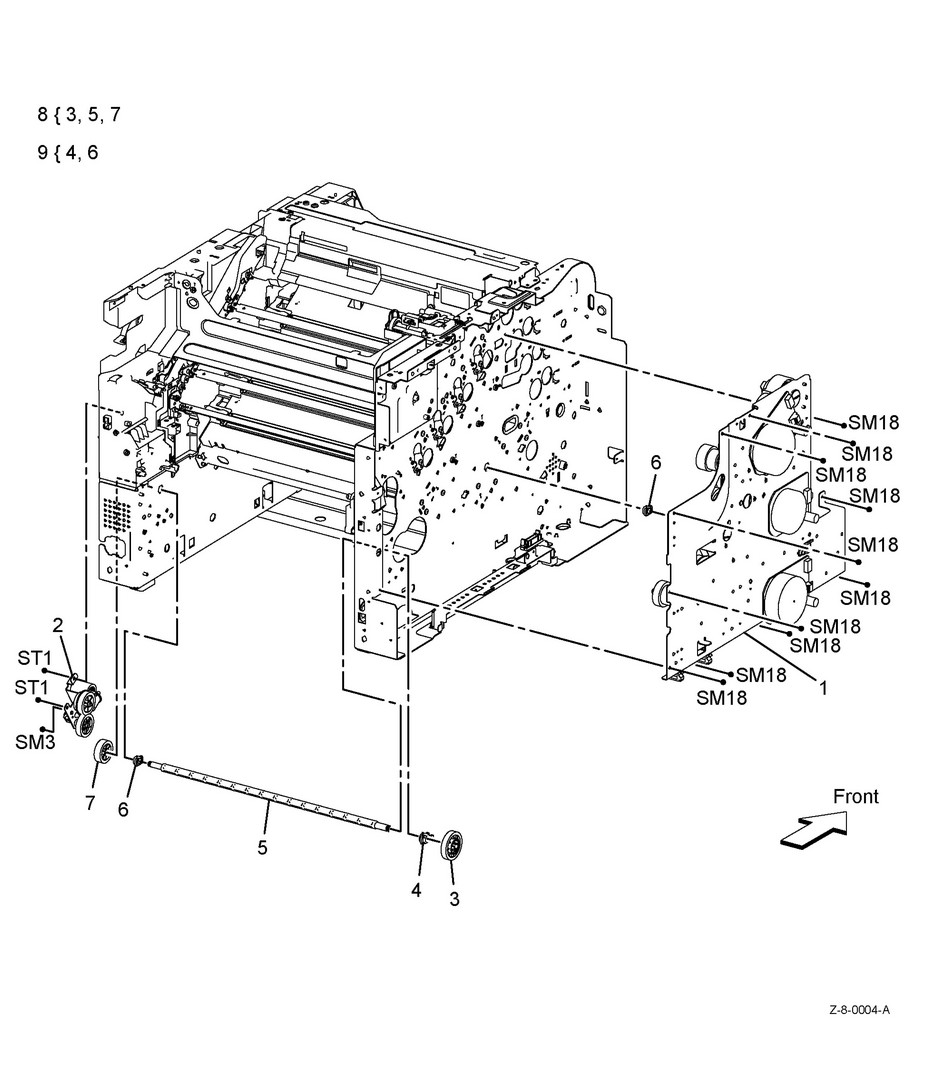

6 1 007K98851 Main drive assembly (REP 3.1) 2 007K17963 Waste drive assembly (REP 3.2) 3 - Waste gear 2 (P/O PL 3.1 Item 8) 4 - Waste bearing 1 (P/O PL 3.1 Item 9) 5 - Drive shaft (P/O PL 3.1 Item 8) 6 - Waste bearing 2 (P/O PL 3.1 Item 9) 7 - Waste gear 3 (P/O PL 3.1 Item 8) 8 007K17971 Drive shaft assembly (REP 3.3) 9 604K90781 Waste bearing kit

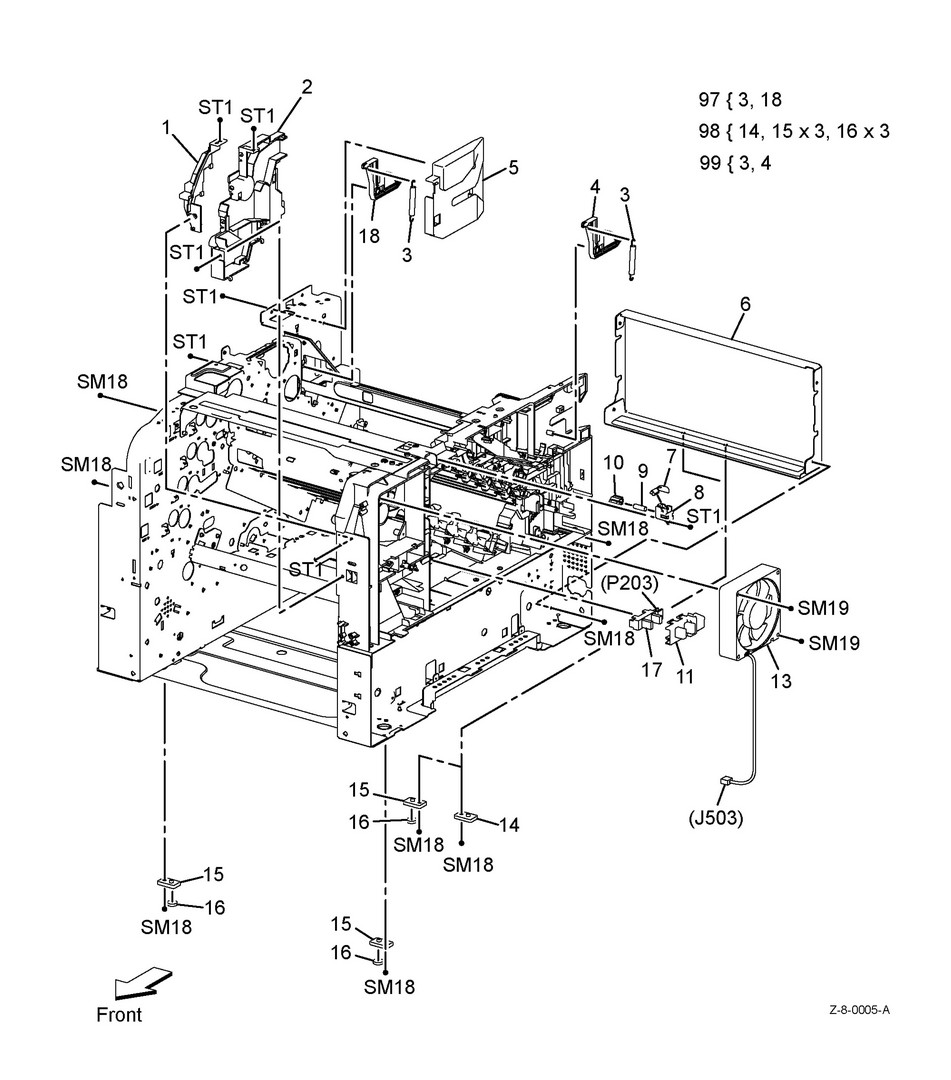

7 1 - Frame duct (Not Spared) 2 - Base duct (Not Spared) 3 - Latch spring (P/O PL 4.1 Item 97) 4 - Right rear latch (P/O PL 4.1 Item 99) (REP 4.3) 5 - Left latch bracket (Not Spared) 6 - S3 rear frame (Not Spared) 7 - Right interlock belt actuator (Not Spared) 8 - Interlock belt holder (Not Spared) 9 - Interlock belt spring (Not Spared) 10 - Interlock belt actuator (Not Spared) 11 - Waste sensor cover (Not Spared) 12 - Fan screw (not shown) (Not Spared) 13 127E86480 Main fan (REP 4.1) 14 - Rear foot (P/O PL 4.1 Item 98) 15 - Front base foot (P/O PL 4.1 Item 98) 16 - Foot (P/O PL 4.1 Item 98) 17 930W00511 Toner full sensor (REP 4.2) 18 - Left rear latch (P/O PL 4.1 Item 97) 97 604K73980 Left rear latch 98 607K00880 Foot assembly (Kit contains Rear Foot, 3 Front Foot Base and 3 Foot) 99 604K76350 Right rear latch

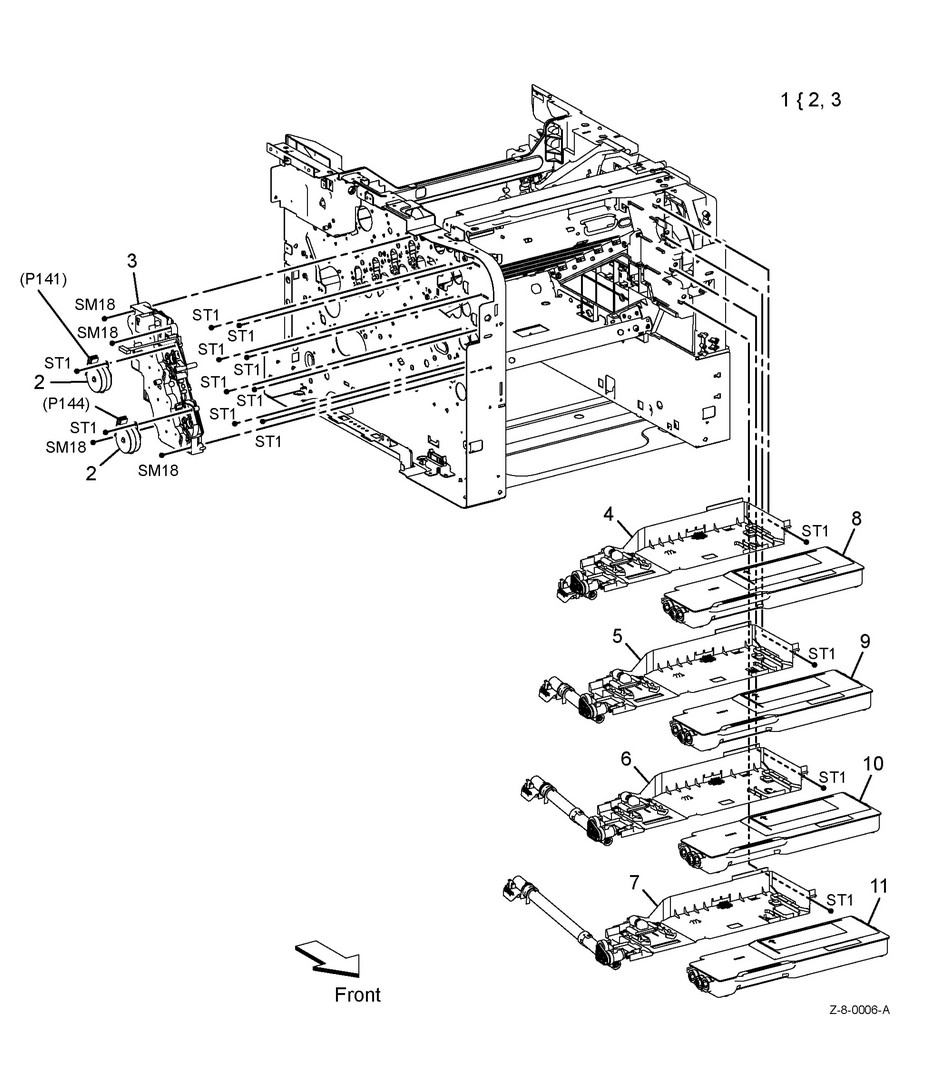

8 1 127K64252 Upper dispenser motor assembly (REP 5.1) 2 127K64260 Dispenser motor (REP 5.2) 3 - Gear motor assembly (P/O PL 5.1 Item 1) 4 094K93433 Dispenser assembly - Y (REP 5.3) 5 094K93423 Dispenser assembly - M (REP 5.3) 6 094K93413 Dispenser assembly - C (REP 5.3) 7 094K93403 Dispenser assembly - K (REP 5.3) 8 - Toner cartridge - Y (variants below) - 106R03537 Metered (WW) - 106R03533 Extra high capacity (DMO) - 106R03529 Extra high capacity (XE) - 106R03525 Yellow Toner Cartridge New 106R03525 8K Page Yield Compatible (New) $39.00 - 106R03521 High capacity (DMO) - 106R03517 High capacity (XE) - 106R03513 Yellow Toner Cartridge New 106R03513 4800 Page Yield Compatible (New) $48.00 - 106R03509 Standard capacity (DMO) - 106R03501 Standard capacity (NA/XE) - 116R00020 Dealer configuration (for authorised use only) 9 - Toner cartridge - M (variants below) - 106R03527 Magenta Toner Cartridge New 106R03527 8K Page Yield Compatible (New) $39.00 - 106R03535 Extra high capacity (DMO) - 106R03511 Standard capacity (DMO) - 106R03531 Extra high capacity (XE) - 106R03523 High capacity (DMO) - 106R03519 High capacity (XE) - 106R03539 Metered (WW) - 106R03515 Magenta Toner Cartridge New 106R03515 4800 Page Yield Compatible (New) $48.00 - 106R03503 Standard capacity (NA/XE) - 116R00019 Dealer configuration (for authorised use only) 10 - Toner cartridge - C (variants below) - 106R03526 Cyan Toner Cartridge New 106R03526 8K Page Yield Compatible (New) $39.00 - 106R03522 High capacity (DMO) - 106R03518 High capacity (XE) - 106R03538 Metered (WW) - 106R03514 Cyan Toner Cartridge New 106R03514 4800 Page Yield Compatible (New) $48.00 - 106R03502 Standard capacity (NA/XE) - 106R03510 Standard capacity (DMO) - 106R03534 Extra high capacity (DMO) - 106R03530 Extra high capacity (XE) - 116R00018 Dealer configuration (for authorised use only) 11 - Toner cartridge - K (variants below) - 106R03512 Black Toner Cartridge New 106R03512 5K Page Yield Compatible (New) $42.00 - 106R03516 High capacity (XE) - 106R03536 Metered (WW) - 106R03508 Standard capacity (DMO) - 106R03528 Extra high capacity (XE) - 106R03520 High capacity (DMO) - 106R03532 Extra high capacity (DMO) - 106R03524 Black Toner Cartridge New 106R03524 10500 Page Yield Compatible (New) $30.00 - 106R03500 Standard capacity (NA/XE) - 116R00021 Dealer configuration (for authorised use only)

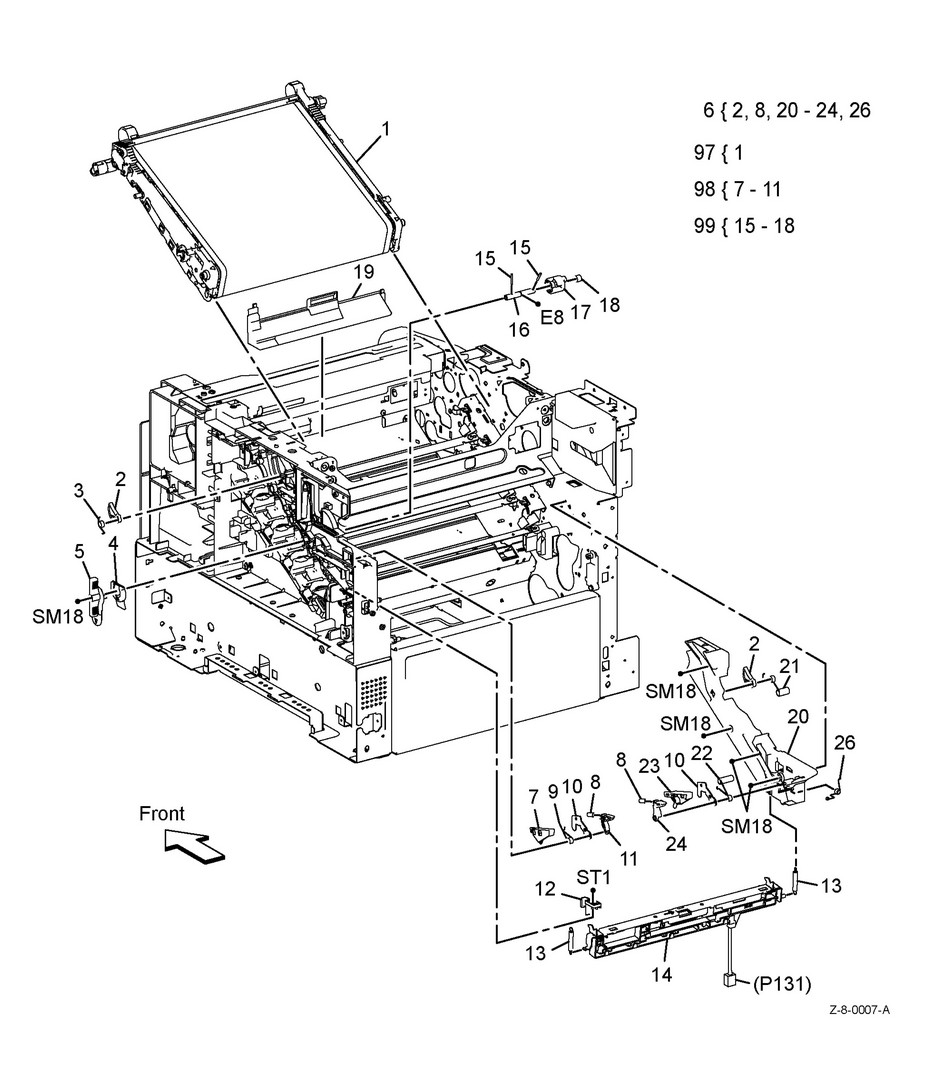

9 1 - Transfer belt assembly (P/O PL 6.1 Item 97) (REP 6.3) 2 - Transfer front latch (P/O PL 6.1 Item 6) 3 - Transfer front right spring (Not Spared) 4 - Coupling actuator (Not Spared) 5 803E15100 Waste box lock 6 032K07422 Left transfer belt guide assembly (REP 6.1) 7 - Housing (P/O PL 6.1 Item 98) 8 - Transfer latch spring (P/O PL 6.1 Item 6) 9 - Transfer rear right spring (P/O PL 6.1 Item 98) 10 - Transfer latch plate (P/O PL 6.1 Item 98) 11 - Transfer right latch arm (P/O PL 6.1 Item 98) 12 - Color toner density (CTD) right guide (Not Spared) 13 809E96300 Color toner density (CTD) spring (REP 6.2) 14 130K77830 Color toner density (CTD) sensor assembly (REP 6.2) 15 - Dowel pin (P/O PL 6.1 Item 99) 16 - Coupling shaft (P/O PL 6.1 Item 99) 17 - Transfer retract coupling (P/O PL 6.1 Item 99) 18 - Coupling spring (P/O PL 6.1 Item 99) 19 - Transfer harness cover (Not Spared) 20 - Left belt guide (P/O PL 6.1 Item 6) 21 - Transfer front left spring (ACO) (P/O PL 6.1 Item 6) 22 - Transfer rear left spring (P/O PL 6.1 Item 6) 23 - Transfer left latch housing (P/O PL 6.1 Item 6) 24 - Transfer left latch arm (P/O PL 6.1 Item 6) 25 - Not used 26 - Spring (P/O PL 6.1 Item 6) 97 604K77533 Transfer belt assembly (see NOTE) 98 604K76280 Transfer belt right latch kit (REP 6.4) 99 604K76290 Coupling kit (REP 6.5)

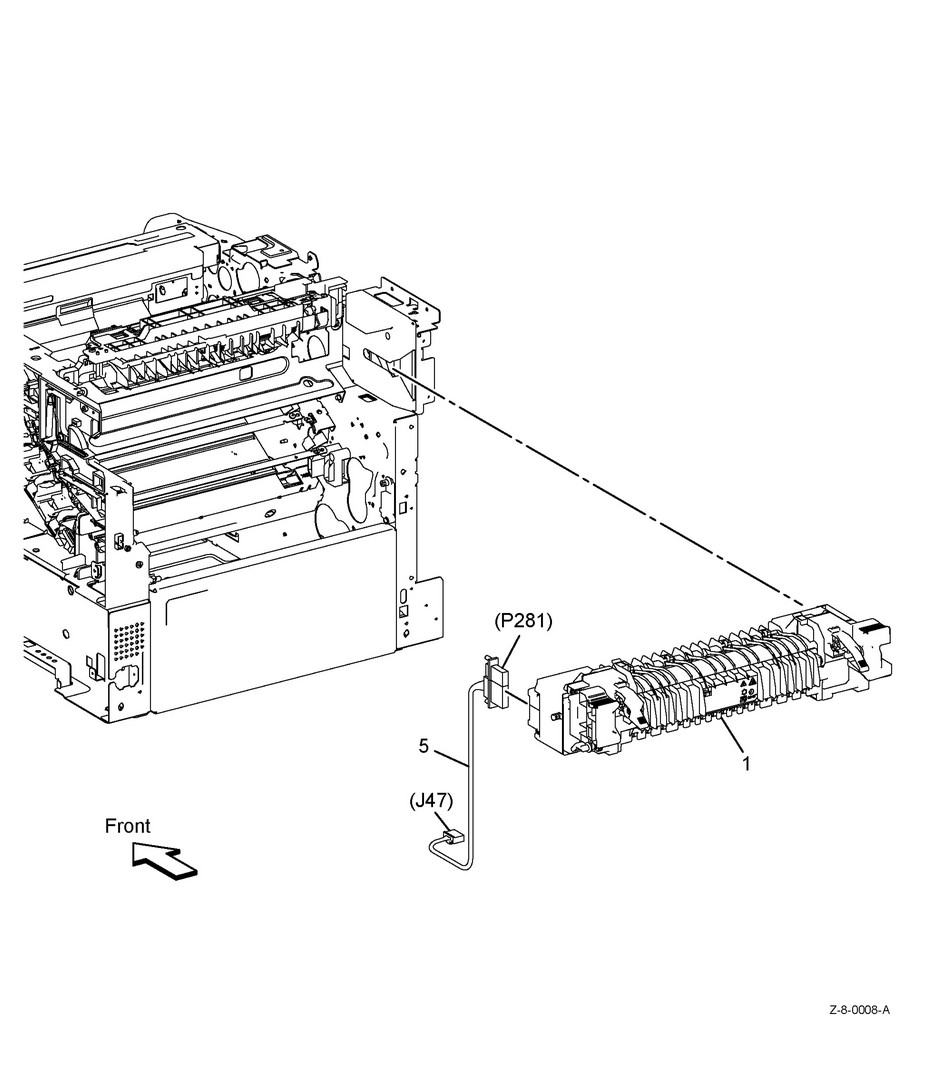

10 1 115R00088 Fuser assembly (110V) (REP 7.1) 1A 115R00089 Fuser assembly (220V) (REP 7.1) 2 - Not used 3 - Not used 4 - Not used 5 - Harness assembly (Not Spared)

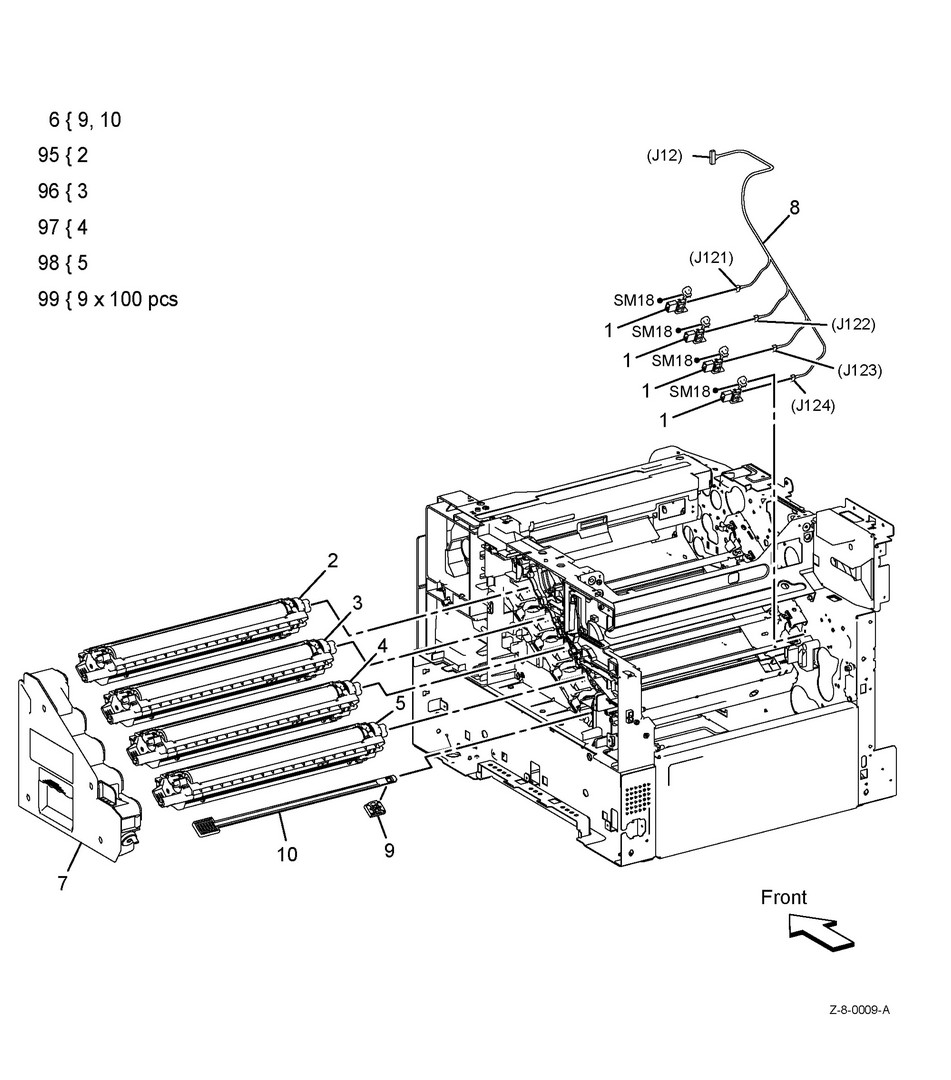

11 1 019K12700 Transfer CRUM connector assembly (REP 8.1) 2 - CRU xerographic development assembly - Y (P/O PL 8.1 Item 95) 3 - CRU xerographic development assembly - M (P/O PL 8.1 Item 96) 4 - CRU Xerographic Development assembly - C (P/O PL 8.1 Item 97) 5 - CRU Xerographic Development assembly - K (P/O PL 8.1 Item 98) 6 042K94440 Lens cleaner assembly 7 108R01124 Waste box assembly 8 - CRUM xerographic harness assembly (Not Spared) 9 - Cleaner assembly base (P/O PL 8.1 Item 6) 10 - Cleaner rod (P/O PL 8.1 Item 6) 95 604K77585 CRU Xerographic development assembly (imaging unit) - Y 96 604K77575 CRU Xerographic development assembly (imaging unit) - M 97 604K77565 CRU Xerographic development assembly (imaging unit) - C 98 604K77555 CRU Xerographic development assembly (imaging unit) 99 - Cleaner assembly base

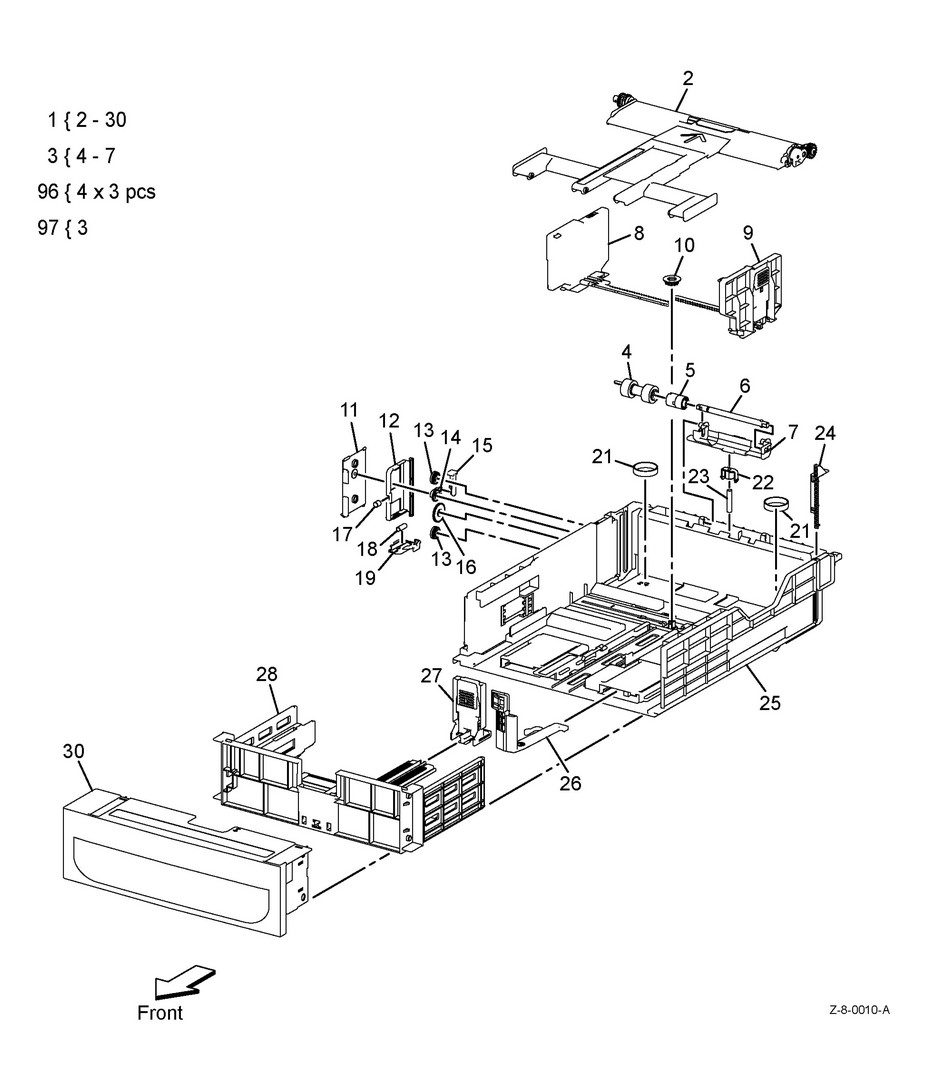

12 1 050K66497 IOT 550 cassette assembly 2 - Bottom plate assembly (P/O PL 9.1 Item 1) 3 - Cassette retard holder assembly (P/O PL 9.1 Item 97) (REP 9.1) 4 - Retard roller assembly (P/O PL 9.1 Item 96) (See NOTE) 5 - Retard friction clutch (P/O PL 9.1 Item 3) 6 - Cassette retard shaft (P/O PL 9.1 Item 3) 7 - Cassette retard holder (P/O PL 9.1 Item 3) 8 - Left side guide assembly (P/O PL 9.1 Item 1) 9 - Right side guide assembly (P/O PL 9.1 Item 1) 10 - Pinion gear (P/O PL 9.1 Item 1) 11 - Bottom lock cover (P/O PL 9.1 Item 1) 12 - Bottom lock rack (P/O PL 9.1 Item 1) 13 - Bottom lock pinion gear (P/O PL 9.1 Item 1) 14 - Bottom lock lever gear (P/O PL 9.1 Item 1) 15 - Bottom lock lever (P/O PL 9.1 Item 1) 16 - Bottom lock gear (P/O PL 9.1 Item 1) 17 - Bottom lock spring (P/O PL 9.1 Item 1) 18 - Lock spring (P/O PL 9.1 Item 1) 19 - Left lock actuator (P/O PL 9.1 Item 1) 20 - Not used 21 - Upper bottom spring (P/O PL 9.1 Item 1) 22 - MSI retard spring holder (P/O PL 9.1 Item 1) 23 - Cassette retard spring (P/O PL 9.1 Item 1) 24 - Upper lift rack (P/O PL 9.1 Item 1) 25 - Base housing (P/O PL 9.1 Item 1) 26 - End extension lever (P/O PL 9.1 Item 1) 27 - End guide assembly (P/O PL 9.1 Item 1) 28 - End housing (P/O PL 9.1 Item 1) 29 - Not used 30 - Cassette handle (P/O PL 9.1 Item 1) 96 675K47673 Feed roller assembly kit New 675K47673 (New) Contact for Details 97 604K77661 Cassette retard holder assembly (Kit Contains Cassette Retard Holder assembly and Instruction)

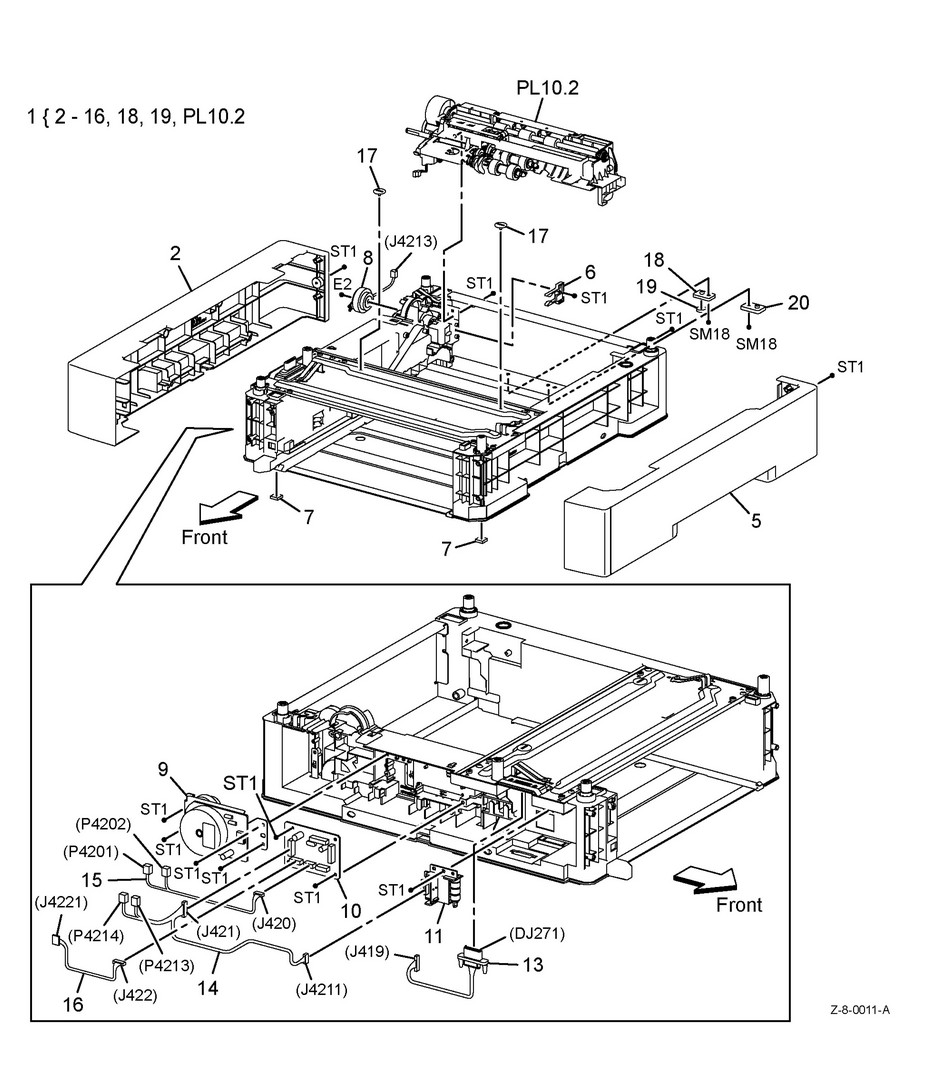

13 1 604K77500 Optional 550-sheet feeder (REP 10.1) 2 - 550 Option left side cover (P/O PL 10.1 Item 1) (REP 10.2) 3 - Not used 4 - Not used 5 - 550 Option right side cover (P/O PL 10.1 Item 1) 6 803E10840 550 Option cassette stopper 7 - Foot assembly (P/O PL 10.1 Item 1) 8 005K83210 550 Option feed clutch assembly (REP 10.3) 9 007K18020 550 Option drive assembly (REP 10.4) 10 960K62142 550 Option feeder PWBA (REP 10.5) 11 110K16610 550 Option size switch assembly (REP 10.6) 12 - Not used 13 - 550 Option drawer1 feeder harness (P/O PL 10.1 Item 1) 14 - C2 size harness assembly (P/O PL 10.1 Item 1) 15 - C2 turn harness assembly (P/O PL 10.1 Item 1) 16 - Feeder motor harness assembly (P/O PL 10.1 Item 1) 17 - Joint screw (Not Spared) 18 - Front base foot (P/O PL 10.1 Item 1) 19 - Foot (P/O PL 10.1 Item 1) 20 - Rear foot (Not Spared)

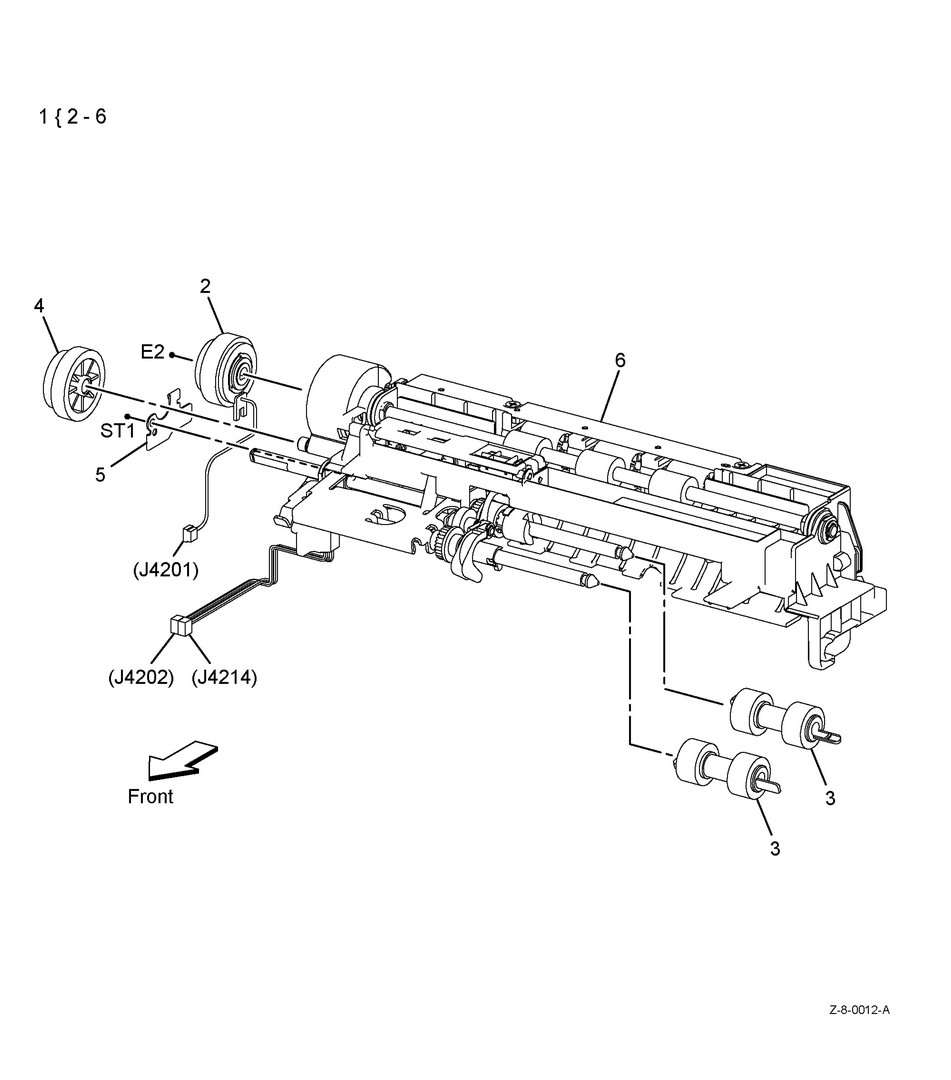

14 1 D059K71760 550 Option Main Feed Assembly Fully refurbished with 90-day warranty D059K71760 $88.00 2 121K48670 550 Option registration clutch assembly (REP 10.8) 3 675K47673 Feed roller assembly kit New 675K47673 (New) Contact for Details 4 - 550 Option feeder gear (P/O PL 10.2 Item 1) 5 - Nudger spring bracket (P/O PL 10.2 Item 1) 6 - Sub feeder assembly (P/O PL 10.2 Item 1)
15 1 050K66517 550 Option cassette assembly 2 - Bottom plate assembly (P/O PL 10.3 Item 1) 3 - Cassette retard holder assembly (P/O PL 10.3 Item 1) 4 - Retard roller assembly (P/O PL 10.3 Item 96) 5 - Retard friction clutch (P/O PL 10.3 Item 3) 6 - Cassette retard shaft (P/O PL 10.3 Item 3) 7 - Cassette retard holder (P/O PL 10.3 Item 3) 8 - Left side guide assembly (P/O PL 10.3 Item 1) 9 - Right side guide assembly (P/O PL 10.3 Item 1) 10 - Pinion gear (P/O PL 10.3 Item 1) 11 - Bottom lock cover (P/O PL 10.3 Item 1) 12 - Bottom lock rack (P/O PL 10.3 Item 1) 13 - Bottom lock pinion gear (P/O PL 10.3 Item 1) 14 - Bottom lock lever gear (P/O PL 10.3 Item 1) 15 - Bottom lock lever (P/O PL 10.3 Item 1) 16 - Bottom lock gear (P/O PL 10.3 Item 1) 17 - Bottom lock spring (P/O PL 10.3 Item 1) 18 - Lock spring (P/O PL 10.3 Item 1) 19 - Left lock actuator (P/O PL 10.3 Item 1) 20 - Size actuator (P/O PL 10.3 Item 1) 21 - Upper bottom spring (P/O PL 10.3 Item 1) 22 - MSI retard spring holder (P/O PL 10.3 Item 1) 23 - Cassette retard spring (P/O PL 10.3 Item 1) 24 - Upper lift rack (P/O PL 10.3 Item 1) 25 - Base housing (P/O PL 10.3 Item 1) 26 - End extension lever (P/O PL 10.3 Item 1) 27 - End guide assembly (P/O PL 10.3 Item 1) 28 - End housing (P/O PL 10.3 Item 1) 29 - Size slot plate (P/O PL 10.3 Item 1) 30 - Cassette handle (P/O PL 10.3 Item 1) 96 675K47673 Feed roller assembly kit New 675K47673 (New) Contact for Details

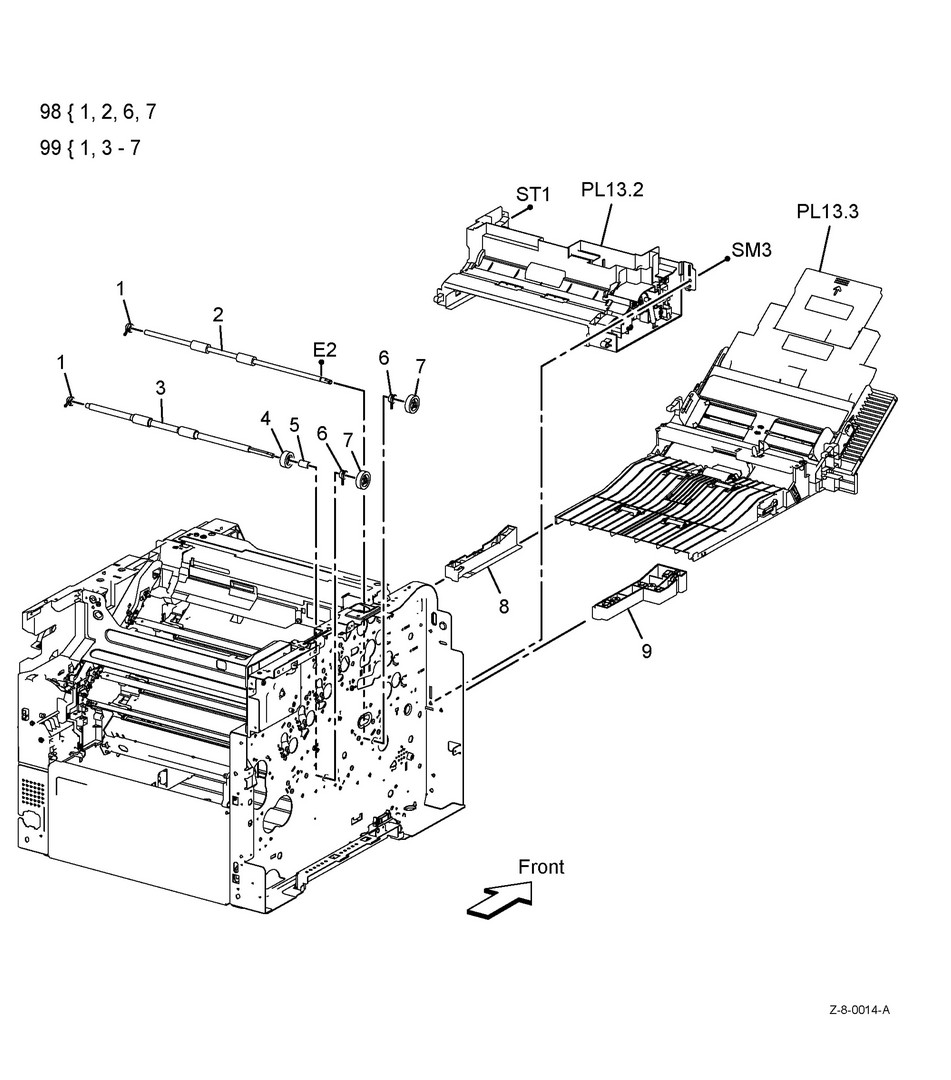

16 1 - Duplex bearing (P/O PL 13.1 Item 98) 2 - TA1 roller assembly (P/O PL 13.1 Item 98) (REP 13.1) 3 - TA2 roller assembly (P/O PL 13.1 Item 99) (REP 13.2) 4 - TA1 gear (P/O PL 13.1 Item 99) 5 - TA2 spacer (P/O PL 13.1 Item 99) 6 - Bearing TA (P/O PL 13.1 Item 98) 7 - Turn gear (P/O PL 13.1 Item 98) 8 - MSI right guide (Not Spared) 9 - MSI left guide (Not Spared) 98 604K73890 TA1 roller assembly kit 99 604K73900 TA2 roller assembly kit

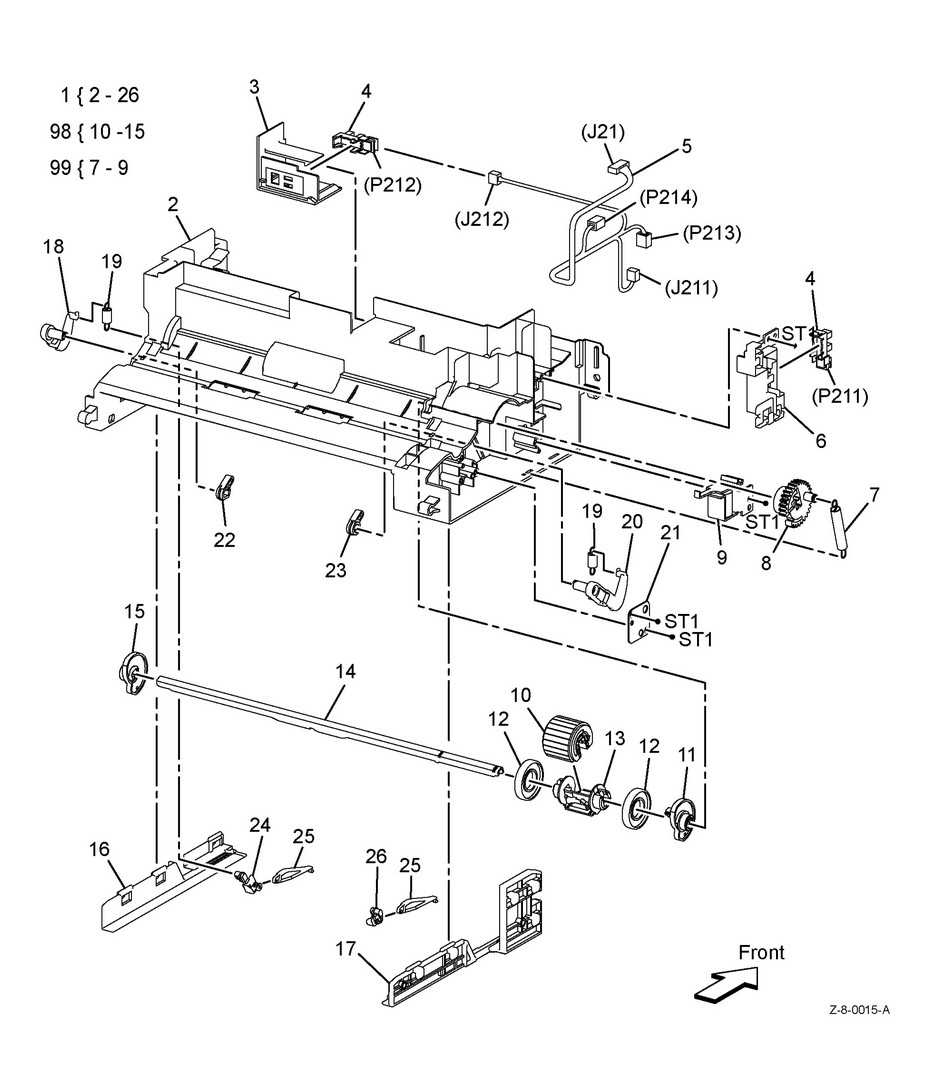

17 1 801K47623 MSI tray frame assembly New 801K47623 (New) $189.00 801K47623 MSI tray frame assembly Fully refurbished with 90-day warranty 801K47623 $99.00 2 - MSI frame (P/O PL 13.2 Item 1) 3 - MSI no paper sensor bracket (P/O PL 13.2 Item 1) 4 930W00123 MSI no paper sensor, (P212) (REP 13.4). MSI tray detect sensor, (P211) (REP 13.5). 5 - MSI harness assembly (P/O PL 13.2 Item 1) 6 - MSI harness guide (P/O PL 13.2 Item 1) 7 - Feed spring (P/O PL 13.2 Item 99) 8 - MSI feed gear (P/O PL 13.2 Item 99) 9 - MSI feed solenoid (P/O PL 13.2 Item 99) (REP 13.8) 10 059K78701 MSI tray feed roller assembly (See NOTE) (REP 13.6) 11 - MSI left cam (P/O PL 13.2 Item 98) 12 - Core roller (P/O PL 13.2 Item 98) 13 - Feed holder (P/O PL 13.2 Item 98) 14 - MSI feed shaft (P/O PL 13.2 Item 98) 15 - MSI right cam (P/O PL 13.2 Item 98) 16 - Right support guide (P/O PL 13.2 Item 1) 17 - Left support guide (P/O PL 13.2 Item 1) 18 - Right arm (P/O PL 13.2 Item 1) 19 - Spring (P/O PL 13.2 Item 1) 20 - Left arm (P/O PL 13.2 Item 1) 21 - Gear bracket (P/O PL 13.2 Item 1) 22 - Right follower (P/O PL 13.2 Item 1) 23 - Left follower (P/O PL 13.2 Item 1) 24 - Right bottom guide (P/O PL 13.2 Item 1) 25 - Bottom side (P/O PL 13.2 Item 1) 26 - Left bottom guide (P/O PL 13.2 Item 1) 98 604K73910 MSI tray feed roller assembly kit (REP 13.7) 99 604K73921 MSI feed solenoid assembly kit

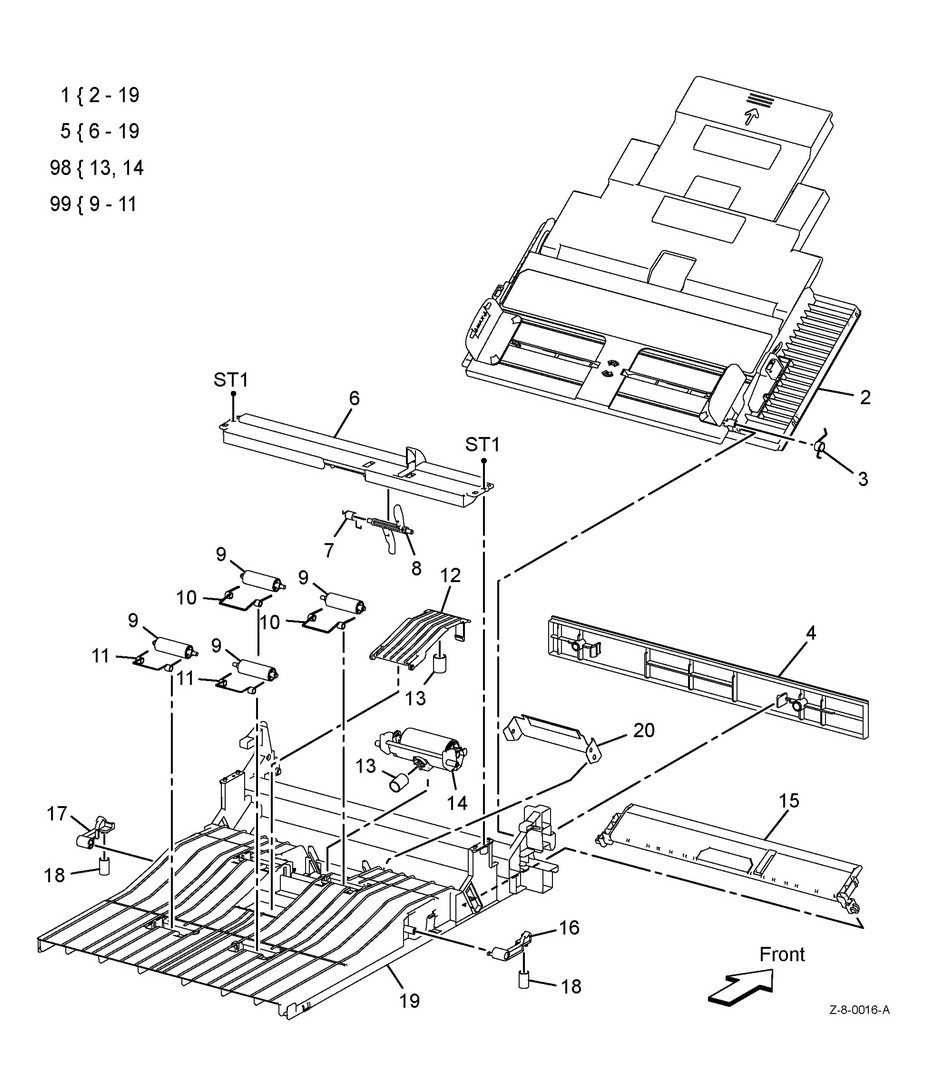

18 1 050K66575 MSI tray assembly (REP 13.9) 2 848K51105 MSI tray cover assembly (REP 13.10) 3 - Damper spring (P/O PL 13.3 Item 1) 4 - MSI tray lower cover (P/O PL 13.3 Item 1) (REP 13.11) 5 054K46615 MSI tray chute assembly (REP 13.12) 6 - Front MSI bar (P/O PL 13.3 Item 5) 7 - No paper spring (P/O PL 13.3 Item 5) 8 - No paper actuator (P/O PL 13.3 Item 5) 9 - MSI pinch roll (P/O PL 13.3 Item 5) (REP 13.14) 10 - TA1 pinch spring (P/O PL 13.3 Item 5) 11 - TA2 pinch spring (P/O PL 13.3 Item 5) 12 - Retard chute (P/O PL 13.3 Item 5) 13 - MSI retard spring (P/O PL 13.3 Item 5) 14 - Retard holder assembly (P/O PL 13.3 Item 5) 15 - Bottom plate assembly (P/O PL 13.3 Item 5) 16 - Left MSI latch (P/O PL 13.3 Item 5) 17 - Right MSI latch (P/O PL 13.3 Item 5) 18 - MSI latch spring (P/O PL 13.3 Item 5) 19 - MSI chute (P/O PL 13.3 Item 5) 20 - Plate assembly retard MSI (Not Spared) 98 604K74442 MSI tray separator roller assembly kit (REP 13.13) 99 604K73940 MSI tray pinch roller assembly kit

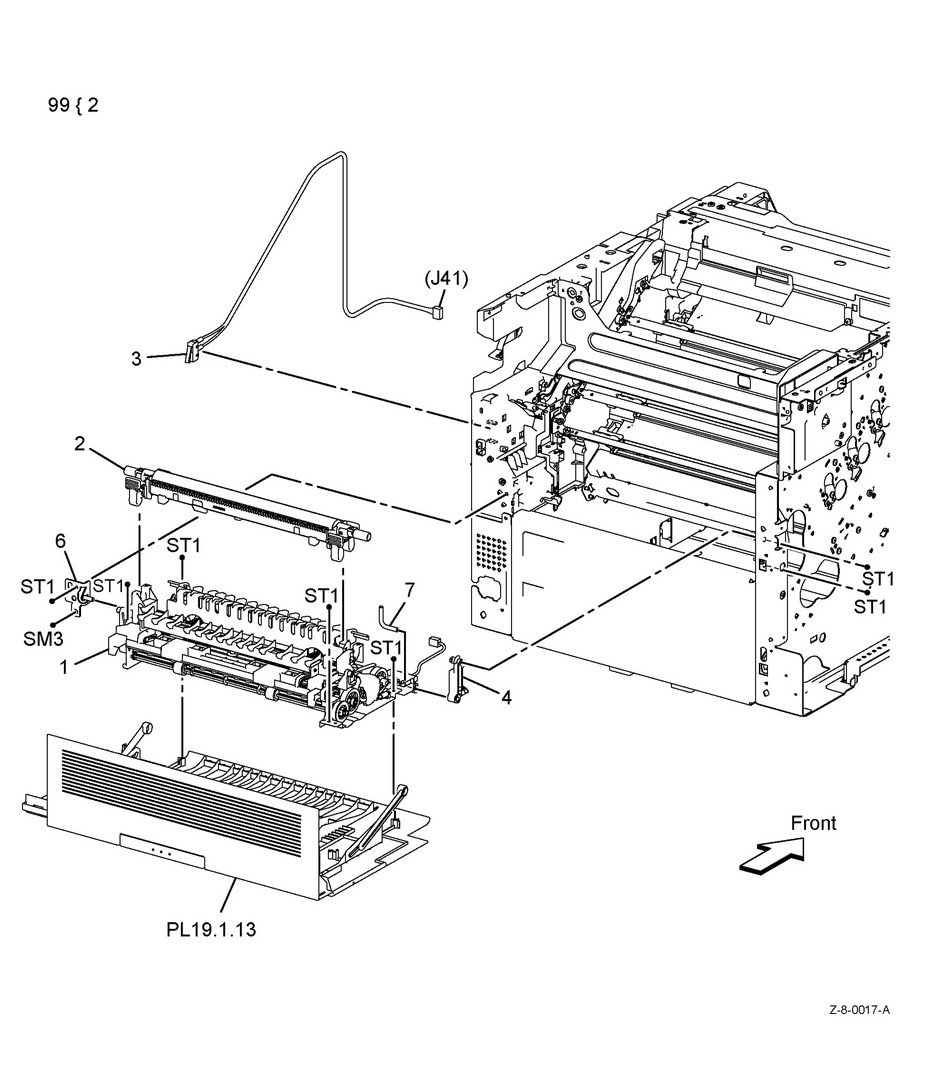

19 1 054K46665 Duplex assembly (REP 14.1) 2 - CRU transfer roller assembly (P/O PL 14.1 Item 99) 3 - Rear interlock switch harness assembly (Not Spared) 4 868E68951 Rear hinge bracket (REP 14.2) 5 - Not used 6 - Right hinge plate (Not Spared) 7 - Left hinge shaft (Not Spared) 99 604K77540 CRU transfer roller assembly (see NOTE) (REP 14.3)

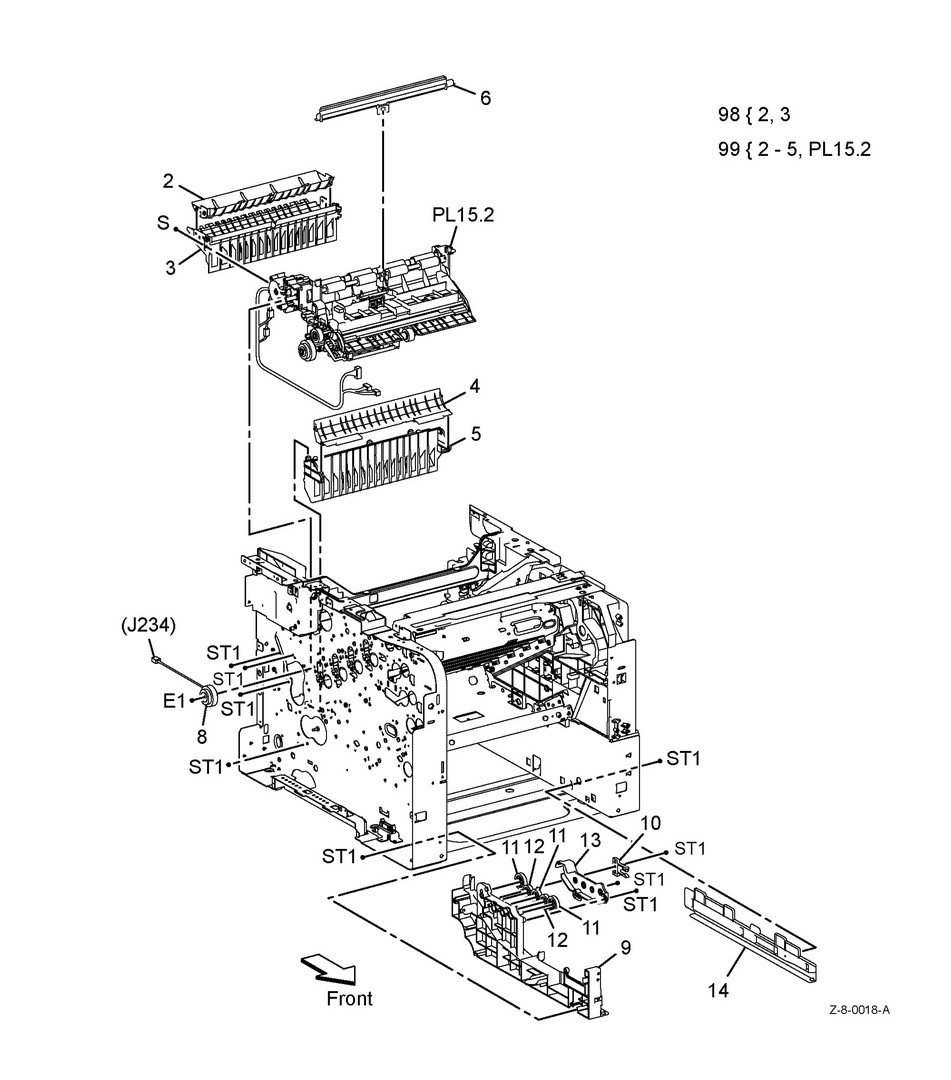

20 1 - Not used 2 - Upper duplex chute (P/O PL 15.1Item 98) (REP 15.5) 3 - Lower duplex chute (P/O PL 15.1Item 98) (REP 15.5) 4 - Lower registration chute (P/O PL15.1 Item 99) (REP 15.1) 5 - Opt 550 registration chute (P/O PL15.1 Item 99) (REP 15.1) 6 054K46650 Upper transfer belt chute assembly (REP 15.2) 7 - Not used 8 121K48670 Registration clutch assembly (REP15.3) 9 - Left tray guide (Not Spared) 10 - Cassette stopper (Not Spared) (REP 15.4) 11 - Idle gear 28 (Not Spared) 12 - Idle gear 25 (Not Spared) 13 - MSI gear cover (Not Spared) 14 - Right tray guide (Not Spared) 98 054K46641 Duplex chute assembly (REP 15.5 99 604K77761 Upper registration chute assembly kit N (REP 15.6) - 604K77751 Upper registration chute assembly kit DN (REP 15.6)

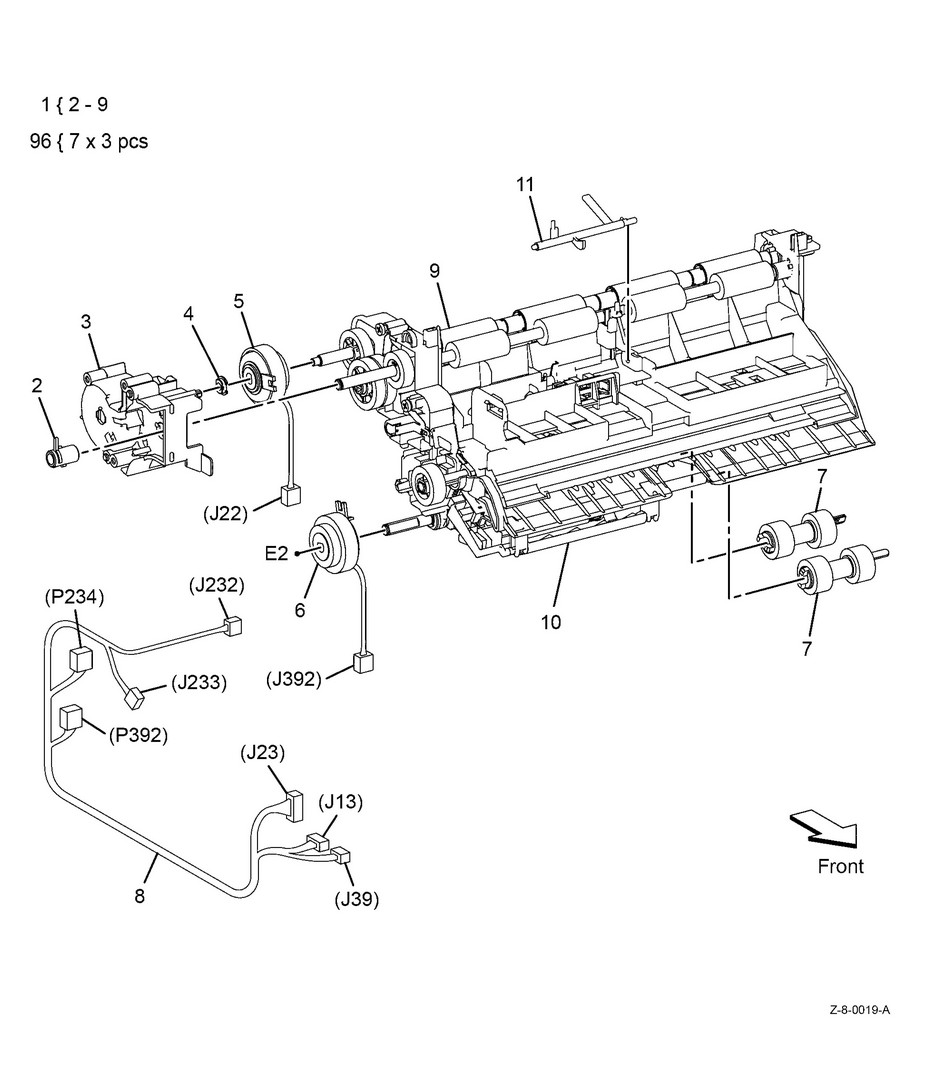

21 1 054K47996 Registration chute assembly DN (REP 15.7) - 054K49224 Registration chute assembly N (REP 15.7) 2 - Right registration bearing (P/O PL 15.2 Item 1) (REP 15.8) 3 - Duplex gear cover (P/O PL 15.2 Item 1) 4 - Bearing (P/O PL 15.2 Item 1) 5 121K48680 Duplex clutch assembly (REP 15.9) 6 - Tray 1 feed clutch (P/O PL 15.2 Item 1) (REP 15.10) 7 - Feed roller assembly (P/O PL 15.2 Item 96) (REP 15.11) 8 - Registration harness assembly (P/O PL 15.2 Item 1) 9 - Registration chute sub assembly (P/O PL 15.2 Item 1) 10 120E33762 No paper sensor actuator 11 - Registration sensor actuator (Not Spared) 96	675K47673 Feed roller assembly kit New 675K47673 (New) Contact for Details

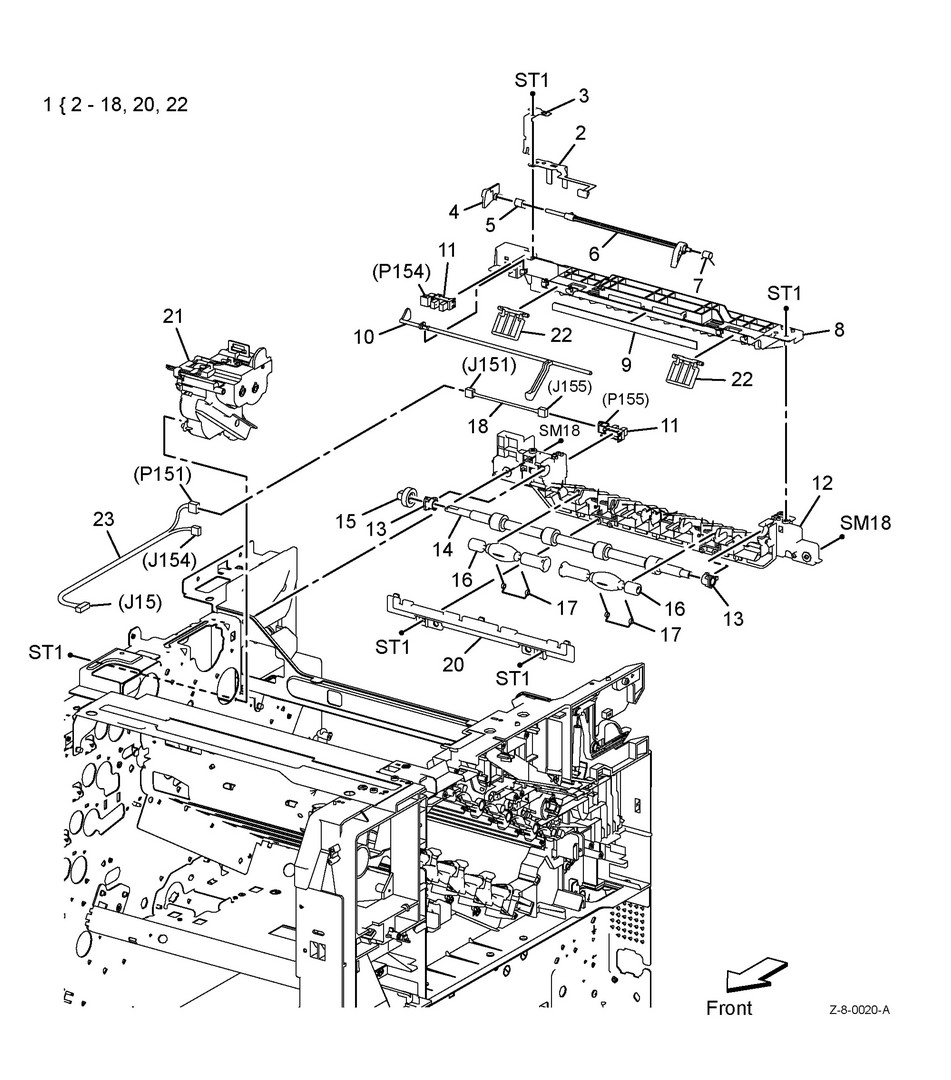

22 1 054K58160 Exit assembly (REP 17.1) 2 - Exit B earth plate (P/O PL 17.1 Item 1) 3 - Exit A earth plate (P/O PL 17.1 Item 1) 4 - Exit B actuator (P/O PL 17.1 Item 1) 5 - Actuator B spring (P/O PL 17.1 Item 1) 6 - Exit A actuator (P/O PL 17.1 Item 1) 7 - Actuator A spring (P/O PL 17.1 Item 1) 8 - S3 upper exit chute (P/O PL 17.1 Item 1) 9 - Exit eliminator (P/O PL 17.1 Item 1) 10 - Stack full actuator (P/O PL 17.1 Item 1) 11 - Exit sensor (P155) Full stack sensor (P154) (P/O PL 17.1 Item 1) 12 - S3 lower exit chute (P/O PL 17.1 Item 1) 13 - Exit bearing (P/O PL 17.1 Item 1) 14 - Exit roller assembly (P/O PL 17.1 Item 1) 15 - Exit gear (P/O PL 17.1 Item 1) 16 - Pinch roll (P/O PL 17.1 Item 1) 17 - Pinch spring (P/O PL 17.1 Item 1) 18 - Exit sensor harness assembly (P/O PL 17.1 Item 1) 19 - Not used 20 - Tray exit cover (P/O PL 17.1 Item 1) 21 007K18766 Exit drive assembly (For DN model only) (REP 17.2) - 007K18776 Exit drive assembly (For N model only) (REP 17.2) 22 - Exit flapper chute (P/O PL 17.1 Item 1) 23 - Sensor harness assembly (Not Spared)

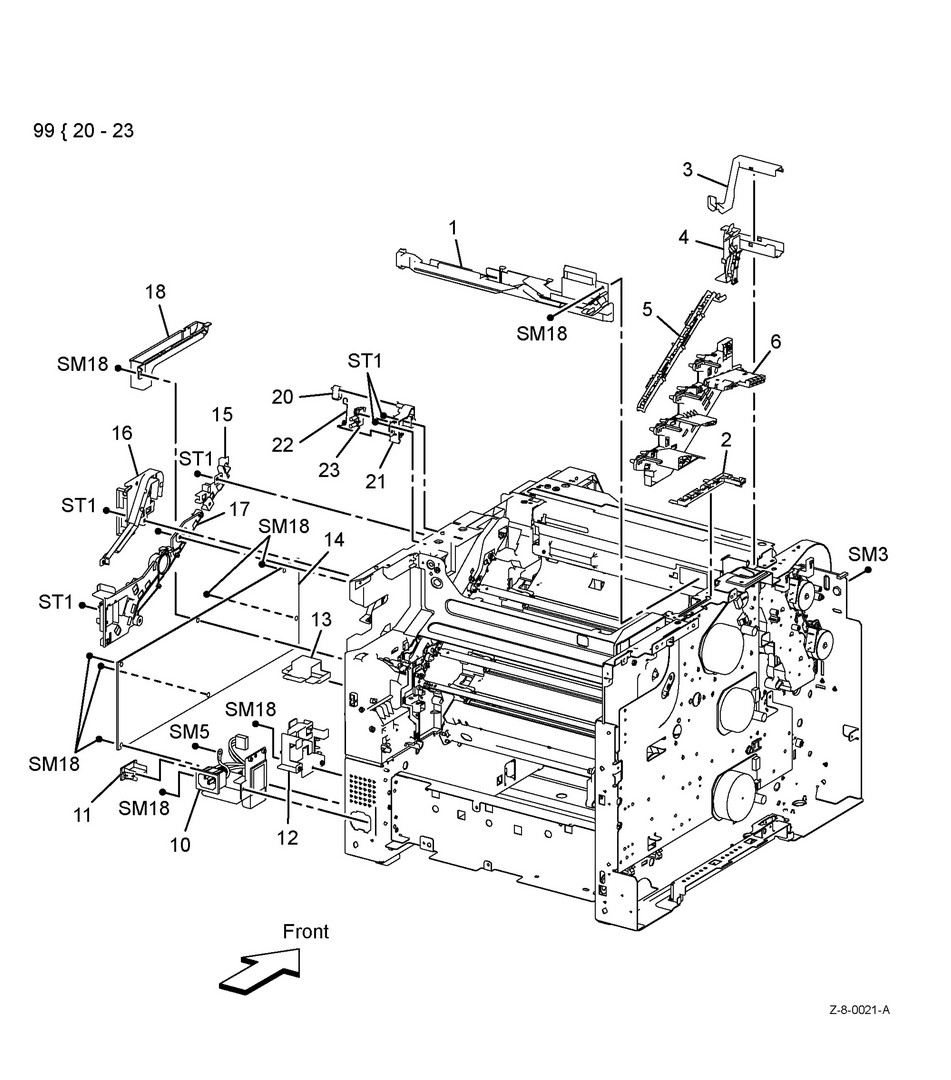

23 1 - Top harness guide (Not Spared) 2 - Exit harness guide (Not Spared) 3 - Top harness cover (Not Spared) 4 - Left top harness guide (Not Spared) 5 - CRM erase harness guide (Not Spared) 6 - Development charge housing assembly (Not Spared) 7 - Not used 8 - Not used 9 - Not used 10 952K33352 Inlet harness assembly (REP 18.1) 11 - Switch cover (Not Spared) 12 - AC LV harness guide (Not Spared) 13 - LV bottom cap (Not Spared) 14 105K30573 LVPS PWBA 220V - 105K30563 LVPS PWBA 110V (REP 18.2) 15 - Right harness guide (Not Spared) 16 - Drawer holder (Not Spared) 17 - Transfer wire cover (Not Spared) 18 - Upper LVPS duct (Not Spared) 19 - Not used 20 - Right side interlock bracket (P/O PL 18.1 Item 99) 21 - Interlock swing actuator (P/O PL 18.1 Item 99) 22 - Interlock WC spring (P/O PL 18.1 Item 99) 23 - Interlock door harness assembly (P/O PL 18.1 Item 99) 99 110K16891 Right interlock switch assembly (REP 18.3)

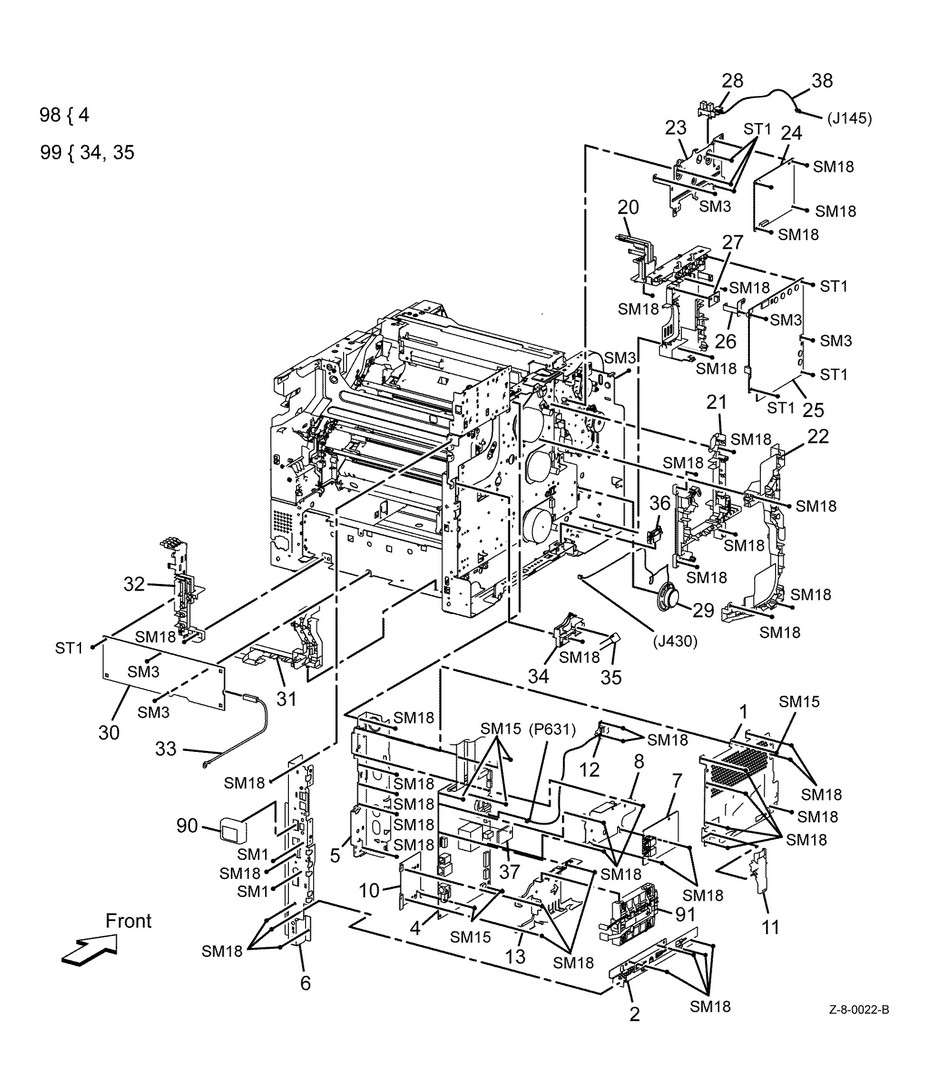

24 2 - ESS bottom plate (Not Spared) 3 - Not used 4 - ESS PWBA (P/O PL 18.2 Item 98) 5 - ESS front plate (Not Spared) 6 - ESS rear plate (Not Spared) 7 960K80762 Fax PWBA C405 (REP 18.6) 8 - Fax plate (Not Spared) 9 - Not used 10 - ESS cover plate (Not Spared) 11 - WiFi lever release (Not Spared) 12 952K33410 Front USB harness C400 (REP 18.7) - 952K33910 Front USB harness C405 (REP 18.8) 13 - Hard disk drive bracket (Not Spared) 20 - Outer development charge housing assembly (Not Spared) 21 - Video harness guide (Not Spared) 22 - Left harness guide (Not Spared) 23 - MCU plate (Not Spared) 24 960K87313 MCU PWBA (See NOTE 2) (REP 18.9) 25 105K26098 Development HVPS XD PWBA (REP 18.10) 26 - HV earth plate (Not Spared) 27 960K84720 EEPROM XPRO board 28 930W00123 Front cover interlock sensor 29 - Speaker assembly (Not Spared) 30 105K26108 Transfer HVPS PWBA (REP 18.12) 31 - Photo guide harness (Not Spared) 32 - Interlock transfer wire housing assembly (Not Spared) 33 - BTR harness assembly (Not Spared) 34 - Ground fuser housing assembly (P/O PL 18.2 Item 99) 35 - Resistor assembly (P/O PL 18.2 Item 99) 36 913W12104 Drawer 1 feeder 37 - EMMC card (Not Spared) (REP 18.5) 38 - Front cover interlock sensor harness (Not Spared) (REP 18.21) 90 - Wireless adaptor optional (Not Spared) (REP 18.13) 91 - Hard disk drive optional (Not Spared) (REP 18.14) 91A 101K69700 Hard disk drive (REP 18.14) 98 607K11250 ESS Kit C405 (See NOTE 1 and 2) (W/TAG 001) (REP 18.5) - 607K04270 ESS Kit C405 (See NOTE 1 and 2) (W/O TAG 001) (REP 18.5) - 607K04250 ESS Kit C400 (See NOTE 1 and 2) (W/O TAG 001) (REP 18.4) - 607K11260 ESS Kit C400 (See NOTE 1 and 2) (W/TAG 001) (REP 18.4) 99 848K69222 Varistor assembly kit (REP 18.15) NOTE: 1.ESS PWBA and Software (Boot) 2.Never replace both MCU and ESS pwbs at the same time

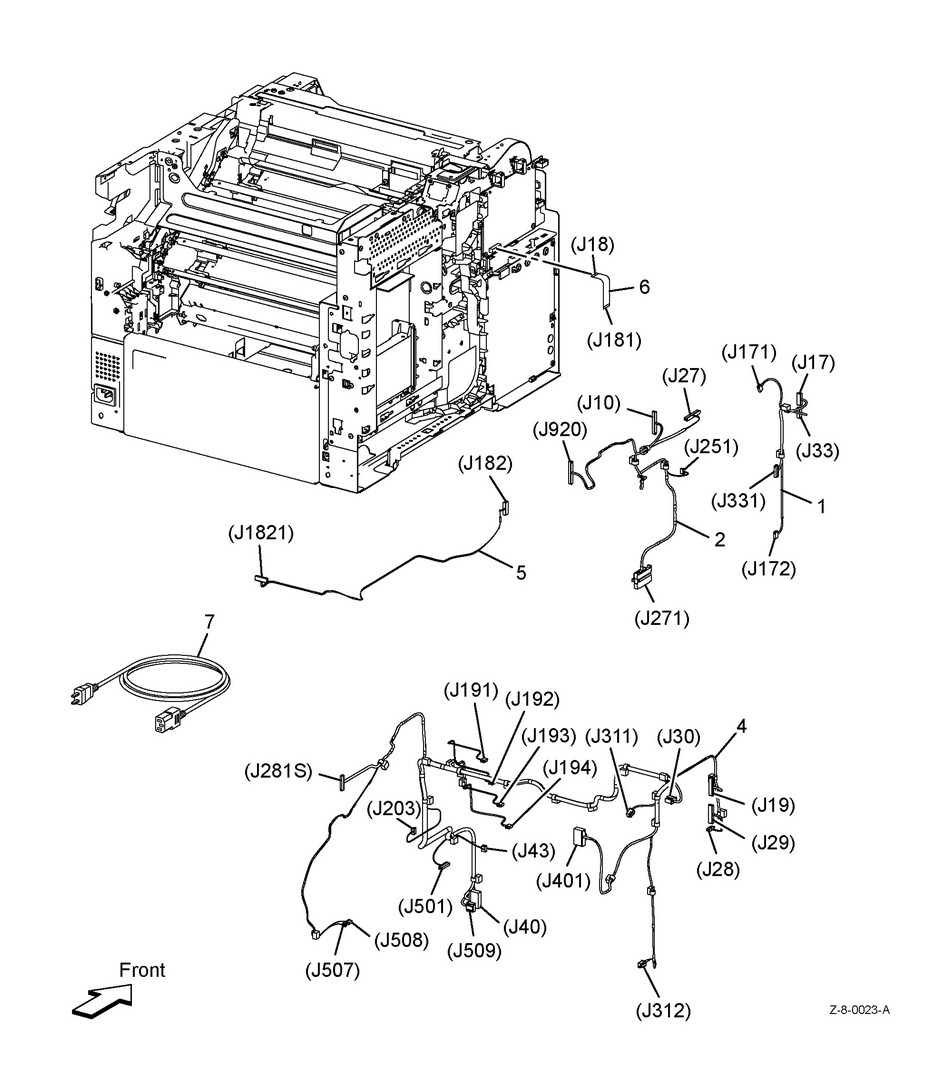

25 1 - Drive harness assembly (Not Spared) (REP 18.16) 2 - Main harness assembly (Not Spared) (REP 18.17) 3 - Not used 4 - Top harness assembly (Not Spared) (REP 18.18, REP 18.19) 5 - HVPS harness assembly (Not Spared) (REP 18.20) 6 - MCU-HVPS flat flex connector (FFC) (Not Spared) 7 - Power cord (Not Spared)

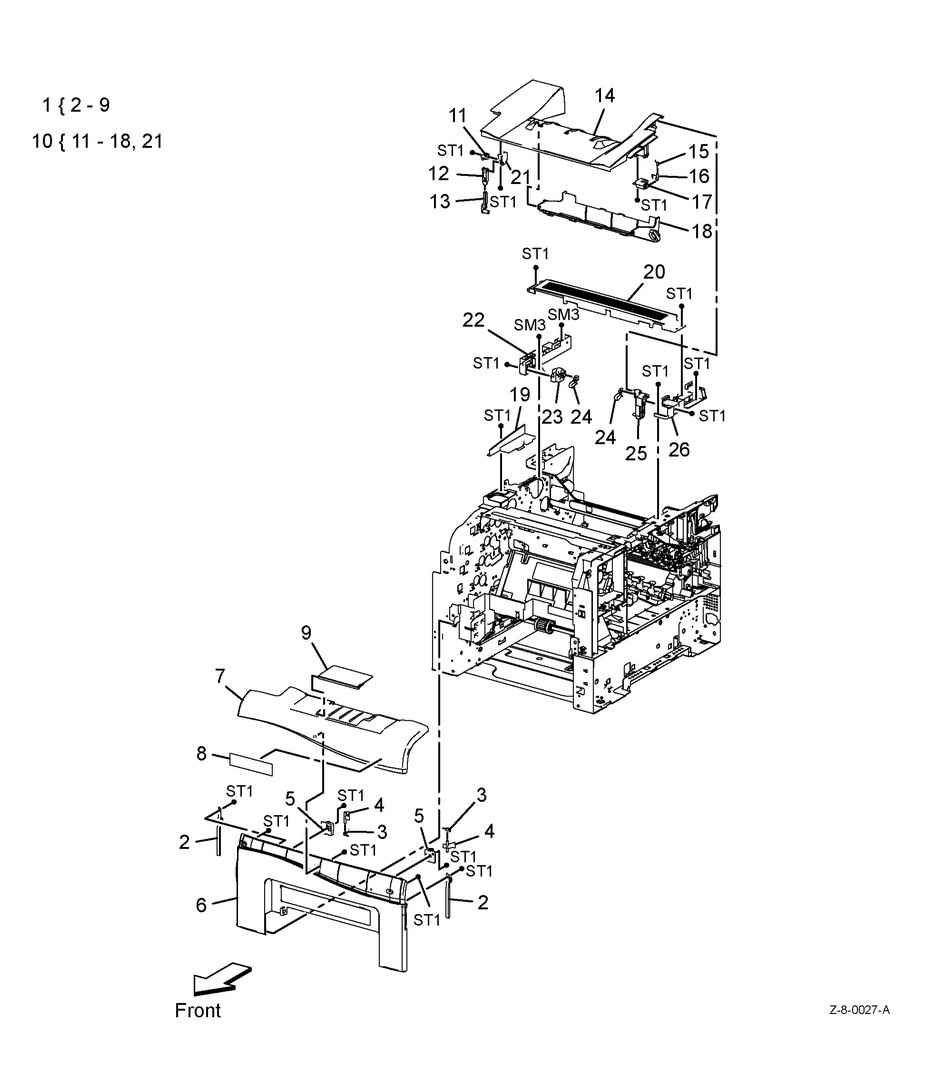

26 1 948K02920 Front cover assembly C400 (REP 19.1) 2 - Front strap (P/O PL 19.1A Item 1) 3 - Front latch spring (P/O PL 19.1A Item 1) 4 - Front latch (P/O PL 19.1A Item 1) 5 - Latch bracket (P/O PL 19.1A Item 1) 6 - Lower front cover C400 (P/O PL 19.1A Item 1) 7 - Upper front cover C400 (P/O PL 19.1A Item 1) 8 - Logo plate (P/O PL 19.1A Item 1) 9 - Front cover extension (P/O PL 19.1A Item 1) 10 948K02960 Top cover assembly (REP 19.2) 11 - Transfer link holder (P/O PL 19.1A Item 10) 12 - Transfer 1 link (P/O PL 19.1A Item 10) 13 - Transfer 2 link (P/O PL 19.1A Item 10) 14 - Upper top cover C400 (P/O PL 19.1A Item 10) 15 - Interlink actuator spring (P/O PL 19.1A Item 10) 16 - Interlink turn actuator (P/O PL 19.1A Item 10) 17 - Interlink actuator holder (P/O PL 19.1A Item 10) 18 - Bottom top cover (P/O PL 19.1A Item 10) 19 - Left under top cover (Not Spared) 20 822E30230 Exit cover C400 (REP 19.3) 21 - Support transfer link holder (P/O PL 19.1A Item 10) 22 - Left hinge bracket (Not Spared) 23 - Left top hinge (Not Spared) 24 - Top cover stopper (Not Spared) 25 - Right top hinge (Not Spared) 26 - Right hinge bracket (Not Spared)

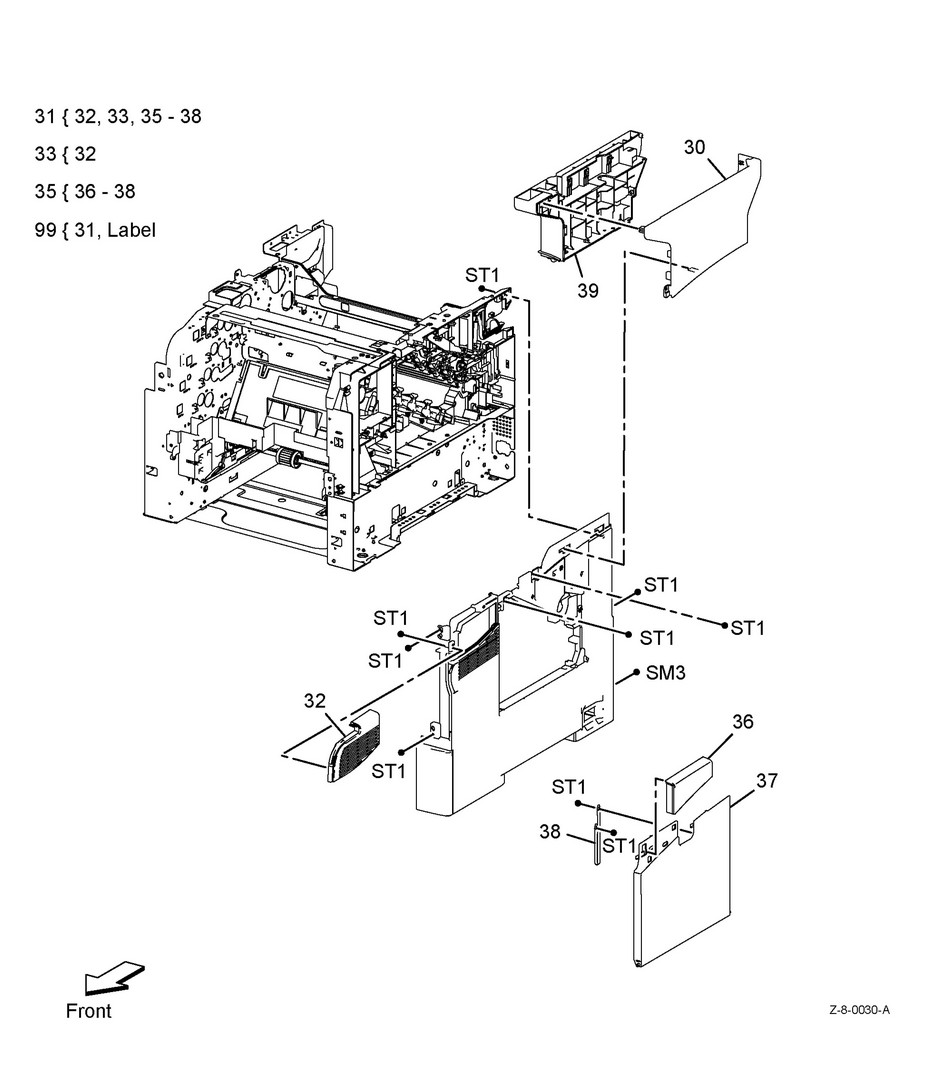

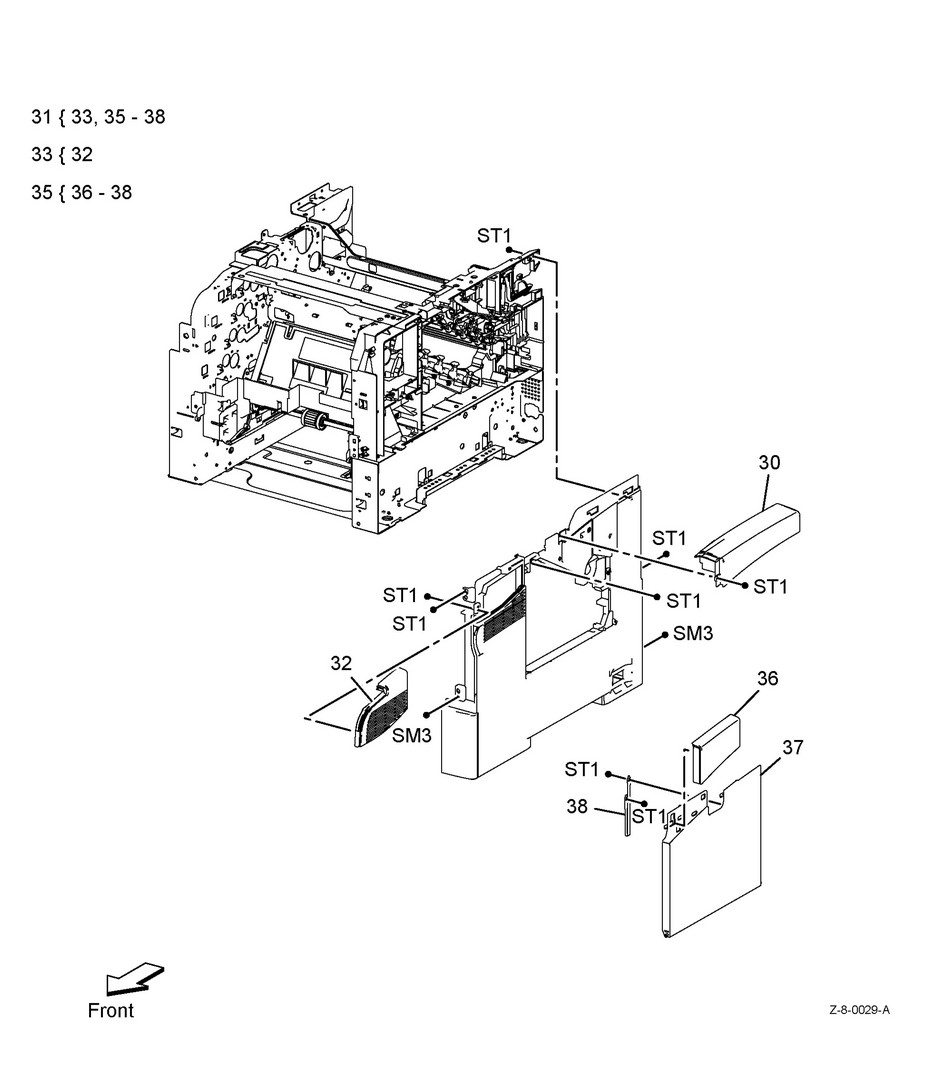

27 30 - Top right cover C400 (Not Spared) (REP 19.4) 31 822E14490 Right side cover assembly C400 (REP 19.5) 32 - Front right cover C400 (P/O PL 19.1B Item 33) 33 - Right cover (P/O PL 19.1B Item 31) 34 - Not used 35 948K02950 Waste door cover assembly 36 - Right door upper cover C400 (P/O PL 19.1B Item 31) 37 - Right door cover C400 (P/O PL 19.1B Item 31) 38 - Right side cover strap (P/O PL 19.1B Item 31)

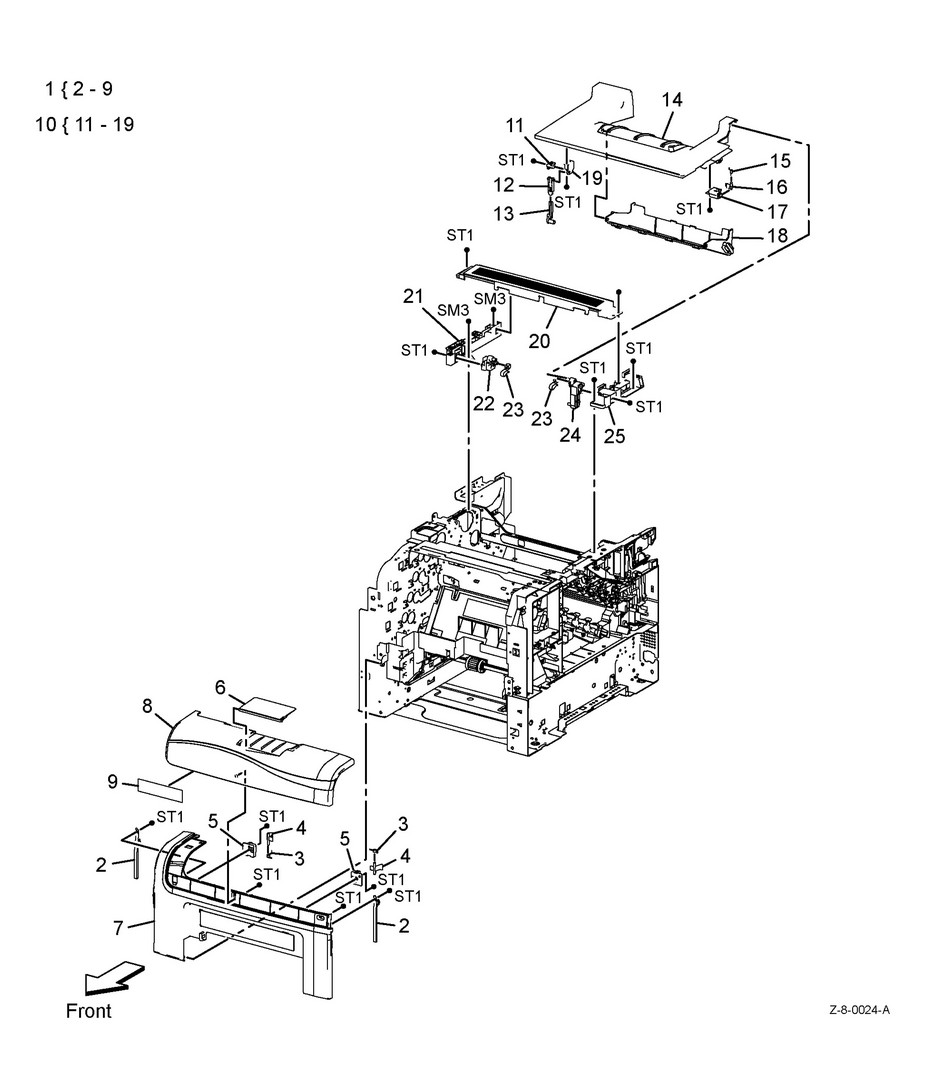

28 1 948K03310 Front cover assembly C405 (REP 19.6) 2 - Front strap (P/O PL 19.1C Item 1) 3 - Front latch spring (P/O PL 19.1C Item 1) 4 - Front latch (P/O PL 19.1C Item 1) 5 - Latch bracket (P/O PL 19.1C Item 1) 6 - Front cover extension (P/O PL 19.1C Item 1) 7 - Lower front cover (P/O PL 19.1C Item 1) 8 - Top front cover (P/O PL 19.1C Item 1) 9 - Logo plate (P/O PL 19.1C Item 1) 10 948K03380 Top cover assembly C405 (REP 19.7) 11 - Transfer link holder (P/O PL 19.1C Item 10) 12 - Transfer 1 link (P/O PL 19.1C Item 10) 13 - Transfer 2 link (P/O PL 19.1C Item 10) 14 - Upper top cover (P/O PL 19.1C Item 10) 15 - Interlink actuator spring (P/O PL 19.1C Item 10) 16 - Interlink turn actuator (P/O PL 19.1C Item 10) 17 - Interlink actuator holder (P/O PL 19.1C Item 10) 18 - Bottom top cover (P/O PL 19.1C Item 10) 19 - Support transfer link holder (P/O PL 19.1C Item 10) 20 822E30360 Exit cover C405 (REP 19.8) 21 - Left hinge bracket (Not Spared) 22 - Left top hinge (Not Spared) 23 - Top cover stopper (Not Spared) 24 - Right top hinge (Not Spared) 25 - Right hinge bracket (Not Spared)
29 30 822E30992 Upper right cover C405 (REP 19.9) 31 948K03351 Right side cover assembly C405 (REP 19.11) 32 - Front right cover (P/O PL 19.1D Item 31) 33 - Right Cover (P/O PL 19.1D Item 31) 34 - Not Used 35 948K03370 Waste door cover assembly 36 - Right door upper cover (P/O PL 19.1D Item 31) 37 - Right door cover (P/O PL 19.1D Item 31) 38 - Right side cover strap (P/O PL 19.1D Item 31) 39 - Inner upper right cover C405 (Not Spared) (REP 19.10)
30 1 - Top left cover C400 (Not Spared) (REP 19.12) 2 - Left cover C400 (P/O PL 19.2A Item 99) 3 - ESS window cover assembly (P/O PL 19.2A Item 99) 4 - ESS window cover C400 (P/O PL 19.2A Item 3) 5 - ESS window plate (P/O PL 19.2A Item 3) 6 - Thumb screw (P/O PL 19.2A Item 3) 7 - E ring (P/O PL 19.2A Item 3) 8 - Not used 9 - Not used 10 607K03760 Rear cover assembly C400 (REP 19.13) 11 - Rear cover (P/O PL 19.2A Item 10) 12 - Rear cover link (P/O PL 19.2A Item 10) 13 822E30260 WiFi cap cover 98 - Rear cover assembly (Not Spared) 99 948K02540 Left side cover assembly C400 (REP 19.4)

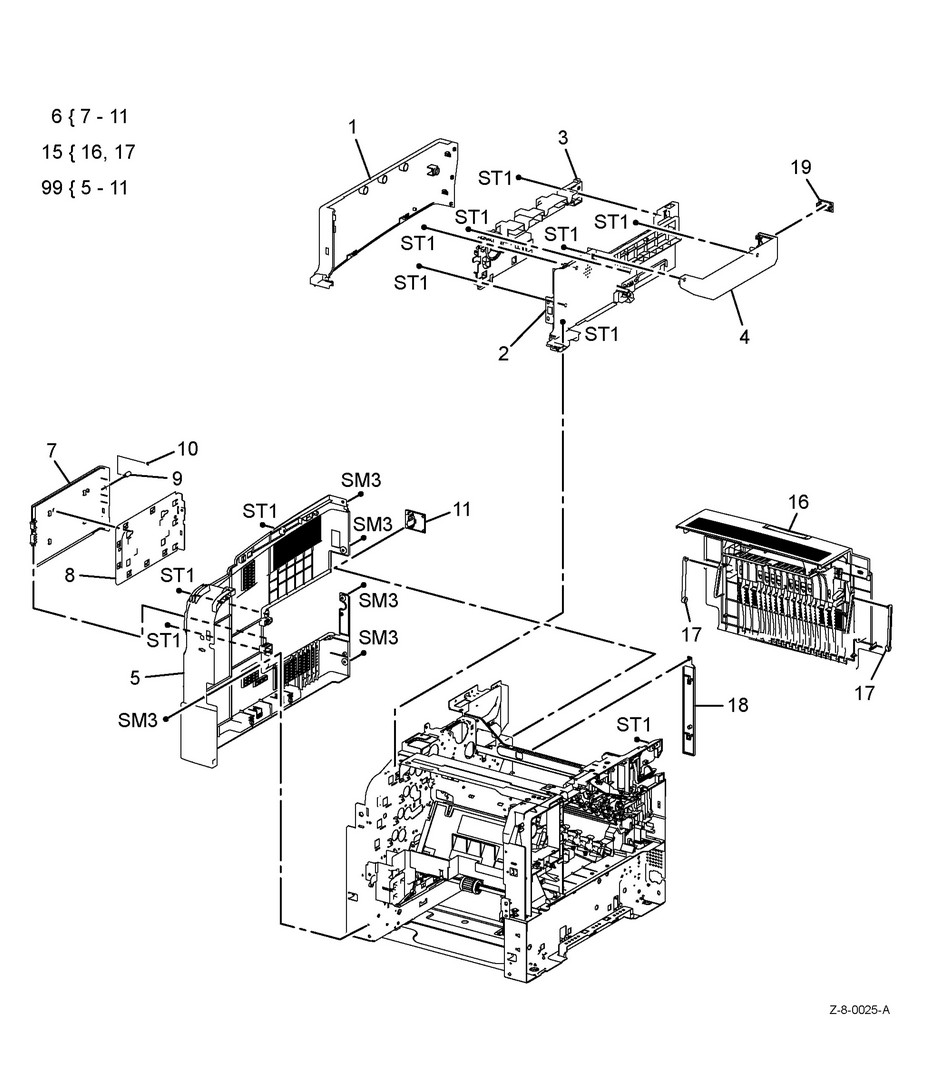

31 1 822E30971 IIT Left outer base C405 (REP 19.15) 2 - IIT Left inner base C405 (Not Spared) 3 - IIT inner base (Not Spared) 4 - IIT bottom cover (Not Spared) 5 - Left cover (P/O PL 19.2B Item 99) 6 - ESS window cover assembly (P/O PL 19.2B Item 99) 7 - ESS window cover (P/O PL 19.2B Item 6) 8 - ESS window plate (P/O PL 19.2B Item 6) 9 - Thumb screw (P/O PL 19.2B Item 6) 10 - E ring (P/O PL 19.2B Item 6) 11 822E30260 WiFi cap cover 12 - Not used 13 - Not used 14 - Not used 15 607K03760 Rear cover assembly 16 - Rear cover assembly C405 (P/O PL 19.2B Item 15) (REP 19.16) 17 - Rear cover link (P/O PL 19.2B Item 15) 18 - Left rear lower cover C405 (Not Spared) (REP 19.17) 19 - IIT bottom base cap (Not Spared) 99 948K03330 Left side cover assembly C405 (REP 19.18)

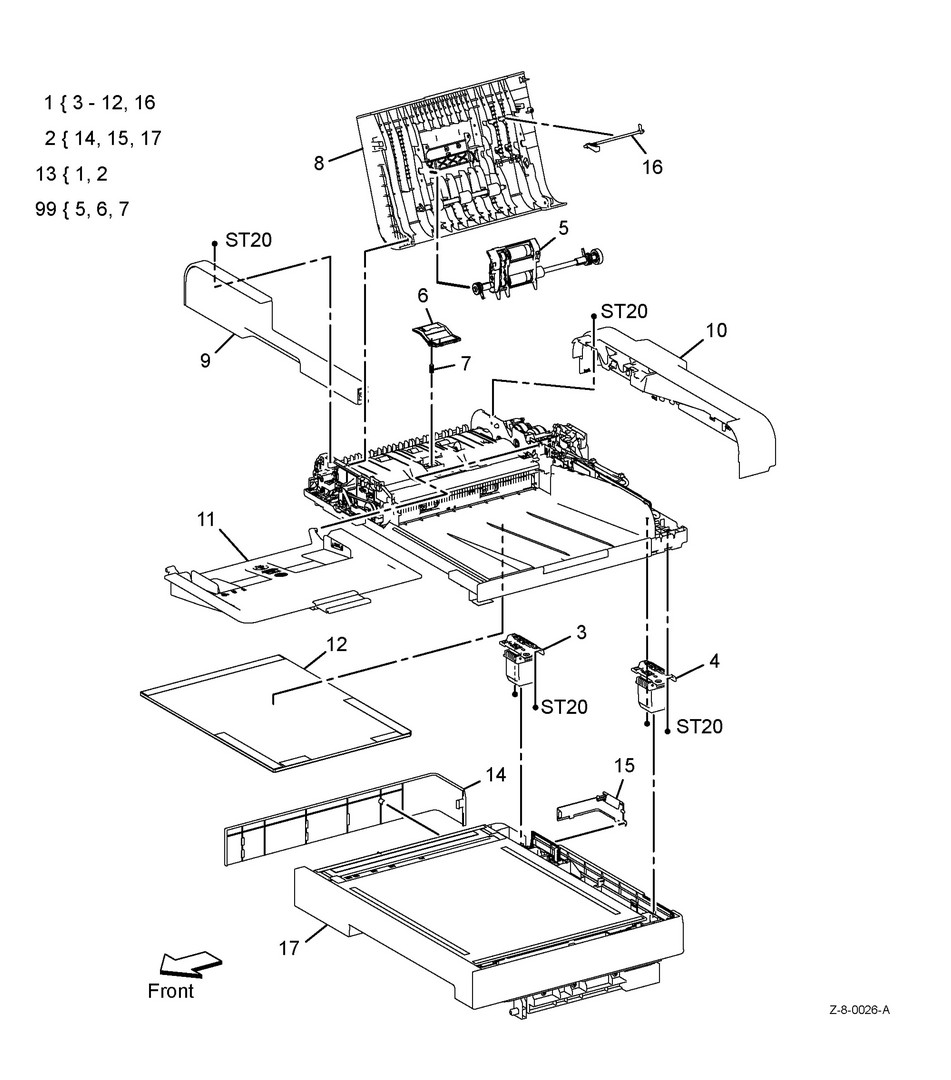

PL 50.1 IIT/DADF 1 607K12151 DADF assembly (REP 50.1) 1 607K04046 DADF assembly (REP 50.1) 2 607K04243 IIT assembly (REP 50.1) 2 607K04241 IIT assembly (REP 50.1) 3 036K92343 Left counter balance assembly (REP 50.2) 4 036K92323 Right counter balance assembly (REP 50.2) 5 - DADF roller feeder (P/O PL 50.1 Item 99) 6 - Separator cover assembly (P/O PL 50.1 Item 99) 7 - DADF separator spring (P/O PL 50.1 Item 99) 8 - Upper feeder assembly (P/O PL 50.1 Item 1) 9 - DADF front cover (P/O PL 50.1 Item 1) 10 - DADF rear cover (P/O PL 50.1 Item 1) 11 050K73592 DADF Input tray assembly (REP 50.3) 12 - Platen cushion assembly (P/O PL 50.1 Item 1) 13 - Scanner assembly (Not Spared) (REP 50.4) 14 - IIT left cover (P/O PL 50.1 Item 2) 15 - IIT Left cover cap (P/O PL 50.1 Item 2) 16 120E35671 DADF actuator (P/O PL 50.1 Item 1) (REP 50.5) 17 - IIT assembly (P/O PL 50.1 Item 2) 99 607K00132 DADF feed roll kit (REP 50.6)
