Lexmark T520 & T522 Parts

Printer overview: Lexmark T522 and T522n Laser Printer.

Please call for parts assistance

Assembly 1: Covers 1 99A2074 Cover Assembly, Redrive Cap Lexmark 99a2074 Redrive cover cap Fully refurbished with 90-day warranty 99a2074 Contact for Details 2 99A1508 Cover, Fuser Wick Assembly Lexmark 99A1508 Cover, Fuser Wick Assembly For Optra T Fully refurbished with 90-day warranty 99A1508 Contact for Details 3 99A1506 Cover Asm, Laser Assembly Lexmark 99A1506 Laser Cover Assembly Fully refurbished with 90-day warranty 99A1506 Contact for Details 4 99A1587 Support, Paper Lexmark 99A1587 Paper Support Fully refurbished with 90-day warranty 99A1587 Contact for Details 5 99A1524 Cartridge Load Spring Lexmark 99A1524 Cartridge Load Spring Fully refurbished with 90-day warranty 99A1524 Contact for Details 6 99A2435 Cartridge Load Spring 7 99A2087 Smart Contact Assembly Lexmark 99a2087 Contact Assembly Fully refurbished with 90-day warranty 99a2087 Contact for Details 8 99A2075 Cover, Right Side Lexmark 99A2075 Cover Right Side New 99A2075 (New) Contact for Details Lexmark 99A2075 Cover Right Side Fully refurbished with 90-day warranty 99A2075 Contact for Details 9 99A2011 Hinge, Upper Front Cover Lexmark 99A2011 Hinge Upper Front Cover New 99A2011 (New) Contact for Details Lexmark 99A2011 Hinge Upper Front Cover Fully refurbished with 90-day warranty 99a2011 $25.67 10 99A2010 Kit, Upper Front Cover with Labels 210/220 Lexmark 99a2010 Upper Front Cover T522 Fully refurbished with 90-day warranty 99a2010 Contact for Details 10 99A2150 Kit, Upper Front Cover with Labels 001/002 Lexmark 99A2150 Upper Front Cover Fully refurbished with 90-day warranty 99a2150 Contact for Details 11 99A0007 Label, TLI/ID/Serial No. - Blank 12 99A1502 Latch, Upper Cover Lexmark 99a1502 Latch Fully refurbished with 90-day warranty 99A1502 $8.00 13 99A1511 Cover Assembly, Lower Front Lexmark 99A1511 Cover Assembly, Lower Front New 99A1511 (New) Contact for Details Lexmark 99A1511 Cover Assembly, Lower Front Fully refurbished with 90-day warranty 99A1511 Contact for Details 14 99A0004 Spring, Latch 15 99A2014 Operator Panel Assembly 110V Lexmark 99A2014 Operator Panel Assembly 110V New 99A2014 (New) Contact for Details Lexmark 99A2014 Operator Panel Fully refurbished with 90-day warranty 99A2014 $9.25 15 99A2015 Operator Panel Assembly 220V 16 99A2060 Switch, Cover Open w/Operator Panel 17 99A1594 Retainer, Cable 18 99A1509 Cover, Left Door 001/002 1-slot Lexmark 99A1509 Left Side Cover Fully refurbished with 90-day warranty 99A1509 Contact for Details 18 99A1510 Cover, Left Door 210/220 2-slot Lexmark 99A1510 Left Cover (Door) Fully refurbished with 90-day warranty 99A1510 Contact for Details NS 99A0577 Cable Tie NS 99A0263 Parts Packet, Screw Parts Packet, Screw (Laser Cover) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details

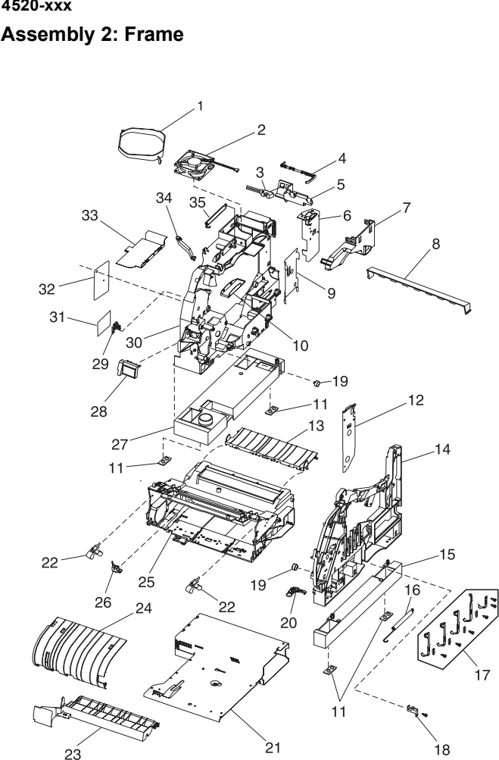

Assembly 2: Frame 1 99A1643 Shroud, Fan Lexmark 99a1643 Shroud Fan 250 Fully refurbished with 90-day warranty 99a1643 $2.77 2 99A2063 Fan, Main Lexmark 99a2063 Main Fan Fully refurbished with 90-day warranty 99a2063 $19.71 3 56P1049 Sensor, Standard Bin Level with Cable 56P1049 Sensor standard bin level with cable New 56P1049 (New) $47.00 56P1049 Sensor, Standard Bin Level Fully refurbished with 90-day warranty 56P1049 $34.00 4 99A1613 Flag, Output Paper Level Lexmark 99A1613 Flag Output Paper Level Fully refurbished with 90-day warranty 99A1613 $5.00 5 99A0062 Bracket, Level Sensor Lexmark 99A0062 Sensor Bracket Assembly Fully refurbished with 90-day warranty 99A0062 $12.00 6 99A2016 Duct, Left Stacker 7 99A0867 Duct, Main Body 8 99A2017 Guide, Redrive Exit Lexmark 99a2017 T63X T52X Redrive Exit Guide Fully refurbished with 90-day warranty 99a2017 Contact for Details 9 99A2018 Support, Left Lower Stacker 10 99A2076 Pan, Drip ITC 11 99A2077 Pad, Machine Mounting 12 99A2021 Support, Right Stacker Plate 13 99A2020 Transfer Plate Assembly Lexmark 99A2020 Transfer plate assembly Fully refurbished with 90-day warranty 99A2020 $17.71 14 99A2022 Right Sideframe Lexmark 99A2022 Right side frame New 99A2022 (New) $24.71 15 99A1518 Frame Extension, Right 210/220 Lexmark 99A1518 Frame Extension Fully refurbished with 90-day warranty 99A1518 Contact for Details 16 99A0028 Spring, Tray Bias 17 99A0585 Parts Packet, Contact Kit (cid:129) Contact, Dr Blade/TAR/Developer Roll (3) (cid:129) Contact, PC Drum (1) (cid:129) Contact, Charge Roll (1) (cid:129) Block, Contact Mounting (4) (cid:129) Screw, Contact Mounting (5) 18 99A0466 Sensor, Toner Cartridge Level Lexmark 99A0466 Sensor Toner Low Fully refurbished with 90-day warranty 99A0466 Contact for Details 19 99A0039 Roller, Developer Support 20 99A0026 Tray Bias Arm Assembly Lexmark 99A0026 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 99A0026 $10.93 21 99A2024 Pan, Center Assembly Lexmark 99A2024 Pan Center Assembly New 99A2024 (New) $26.72 22 99A2019 Spring, Cartridge Hold Down 23 99A1525 Deflector, Upper PF Lexmark 99A1525 Upper Pf Deflector Fully refurbished with 90-day warranty 99A1525 Contact for Details 24 99A1850 Deflector, Inner Lexmark 99A1850 Deflector Inner 4069 Fully refurbished with 90-day warranty 99A1850 Contact for Details 25 99A2065 Frame, EP Module Lexmark 99A2065 Frame EP Module New 99A2065 (New) $52.19 26 99A0053 Sensor, Input Lexmark 99A0053 Input Sensor Fully refurbished with 90-day warranty 99A0053 $15.77 27 99A1517 Frame Extension, Left 210/220 Lexmark 99A1517 L. Frame Extension 4069 Fully refurbished with 90-day warranty 99A1517 Contact for Details 28 99A0549 Shield, ESD Assembly with label Lexmark 99A0549 EDS shield 4069 Fully refurbished with 90-day warranty 99A0549 Contact for Details 29 99A0063 Spring, PA Out Activate Parts Catalog 7-5 Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62

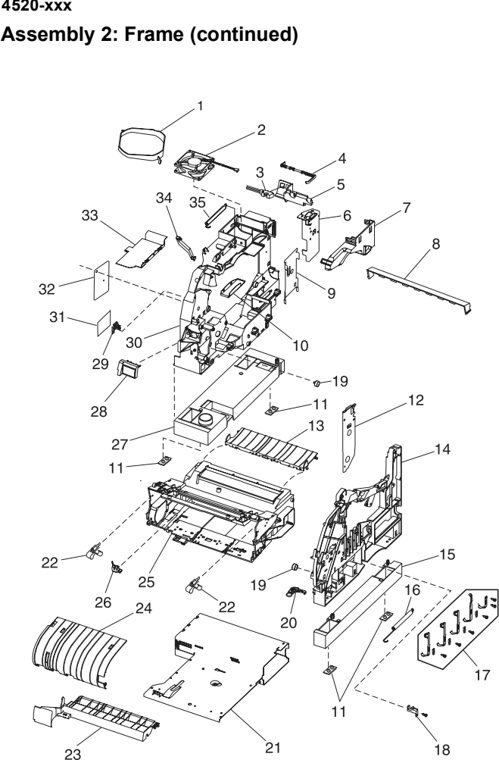

Assembly 2: Frame (continued) 30 99A2025 Left Side Frame Lexmark 99A2025 Left Side Frame New 99A2025 (New) Contact for Details 31 56P1139 Board, Input Tray (ITC) 56P1139 Board, Input Tray (ITC) Fully refurbished with 90-day warranty 56P1139 $25.00 56P1139 Board input tray (ITC) New 56P1139 (New) $12.00 32 99A1896 Guard, Gear 33 99A2078 Pan, Motor Drip 34 99A0567 Link, Gear Release 35 99A0556 Spring, Counterbalance Lexmark 99A0556 Counter Balance Spring Fully refurbished with 90-day warranty 99A0556 $12.16 NS 99A0263 Parts Packet, Screw Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details NS 99A1546 Shield, Gear NS 99A1596 Contact, LSF Ground NS 99A1538 Contact, RSF Ground NS 99A1540 Nut Plate, Frame 210/220 NS 99A1541 Spring, Duplex Ground Parts Catalog 7-7

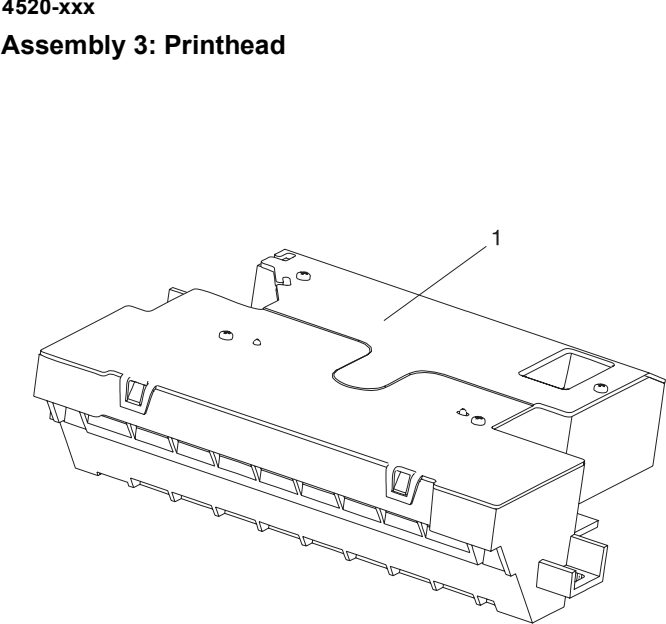

Assembly 3: Printhead 1 99A2026 Printhead Assembly (Includes All Cables) Lexmark 99A2026 Printhead Assembly T520, T522 4520 4522 Fully refurbished with 90-day warranty 99A2026 Contact for Details NS 99A0263 Parts Packet, Screw (Printhead Mounting) Parts Catalog 7-9 Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details

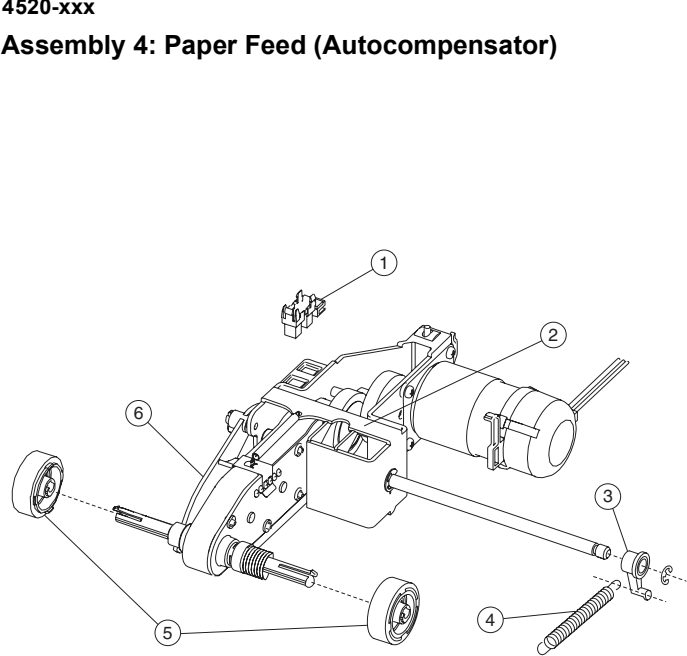

Assembly 4: Paper Feed (Autocompensator) 1 99A2070 Sensor, Paper Out Internal Tray Lexmark 99A2070 Sensor Paper Out Internal Tray New 99A2070 (New) $18.04 2 99A2079 Pick Arm Assembly (500) 210/220 Lexmark 99a2079 500-Sheet Pickarm Assembly Fully refurbished with 90-day warranty 99a2079 $42.25 2 99A2157 Pick Arm Assembly (250) 001/002 Lexmark 99A2157 250-Sheet Pickarm Assembly Fully refurbished with 90-day warranty 99A2157 $11.27 Lexmark 99A2157 Pick Arm Assembly (250) 001/002 New 99A2157 (New) $15.20 3 56P1228 Spring Arm Belcrank 56P1228 Bellcrank Arm Assembly New 56P1228 (New) $19.00 56P1228 Bellcrank Arm Assembly Fully refurbished with 90-day warranty 56P1228 Contact for Details 4 99A1927 Spring, Bellcrank Internal 250 Lexmark 99A1927 Bellcrank Spring 250 Fully refurbished with 90-day warranty 99A1927 Contact for Details 4 99A1930 Spring, Bellcrank Internal 500 Lexmark 99A1930 Spring Fully refurbished with 90-day warranty 99A1930 Contact for Details 5 99A0070 Pick Rolls Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 6 99A1616 Flag, Paper Out 500 Tray Lexmark 99A1616 500- Sheet Paper Out Flag Fully refurbished with 90-day warranty 99A1616 Contact for Details 6 99A1609 Flag, Paper Out 250 Tray 001/002 Lexmark 99A1609 250 Sheet Tray Flag Fully refurbished with 90-day warranty 99A1609 Contact for Details NS 99A0263 Parts Packet, Screw (Hanger) Parts Catalog 7-11 Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details

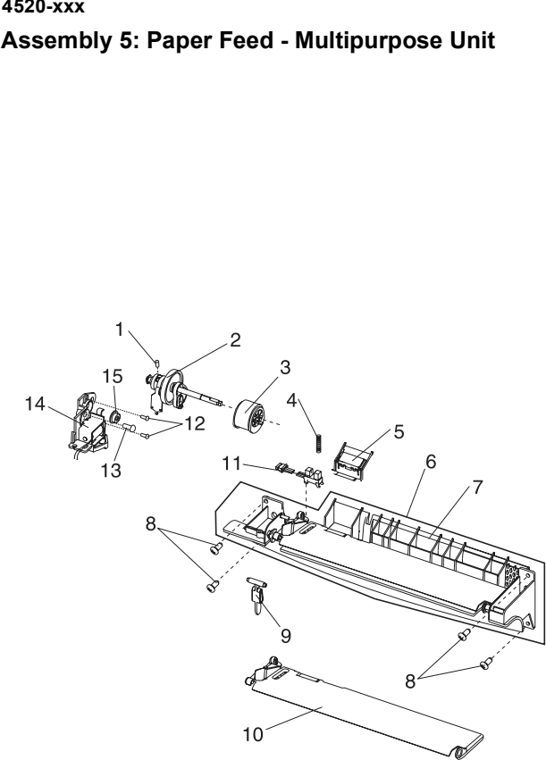

Assembly 5: Paper Feed - Multipurpose Unit 1 99A0075 Screw, Socket Set M4X5 mm 2 99A0071 Arm Assembly, MPT Lexmark 99A0071 Multipurpose Arm Assembly Fully refurbished with 90-day warranty 99A0071 $20.96 3 99A0076 Pick Roll Assembly Lexmark 99A0076 Pick Roll New 99A0076 (New) Contact for Details 4 99A0081 Spring Assembly, Separator 5 99A0083 MPT Pad/Separator Arm Assembly 6 99A2092 Deflector Assembly, MPT Lexmark 99A2092 Deflector Assembly MPT Fully refurbished with 90-day warranty 99A2092 $76.42 7 99A1531 Deflector, Lower Lexmark 99A1531 Deflector Lower New 99A1531 (New) Contact for Details Lexmark 99A1531 Deflector Lower Fully refurbished with 90-day warranty 99A1531 Contact for Details 8 99A0263 Parts Packet, Screw Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 9 99A0084 Flag, MPT Paper Out 10 99A0082 Plate Assembly, MPT Lexmark 99A0082 Plate Assembly MPT Fully refurbished with 90-day warranty 99A0082 Contact for Details 11 99A2071 Sensor, MPT Paper Out 12 99A0073 Screw, Damper 13 99A0263 Parts Packet, Screw (Frame Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 14 99A2027 Frame Assembly, MPT with Solenoid 15 99A0074 Bushing, Pick Roll Shaft NS 99A0267 Parts Packet, Clip (Pick Roll Shaft) Parts Catalog 7-13

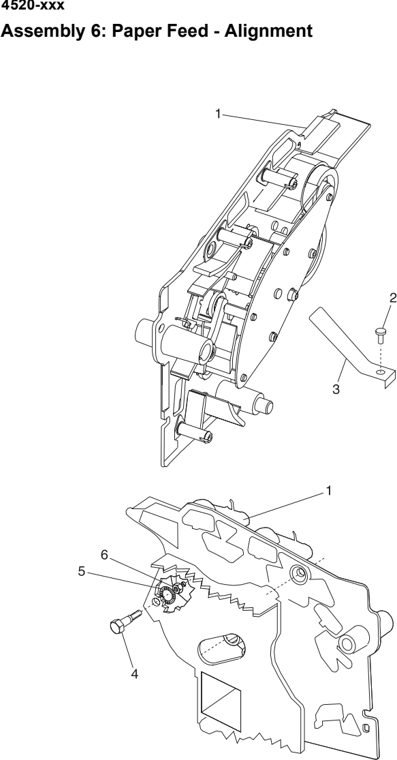

Assembly 6: Paper Feed - Alignment 1 99A0089 Alignment Assembly Paper Feed Lexmark 99A0089 Alignment Assembly Paper Feed Fully refurbished with 90-day warranty 99A0089 Contact for Details 2 99A0263 Parts Packet, Screw (Paper Feed) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 3 99A2066 Clip, Reference Ground 4 99A0492 Screw, Paper Reference Adjustment 5 99A0565 Washer, Reference Adjustment 6 99A0566 Nut, Paper Reference Adjustment NS 99A0263 Parts Packet, Screw Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details

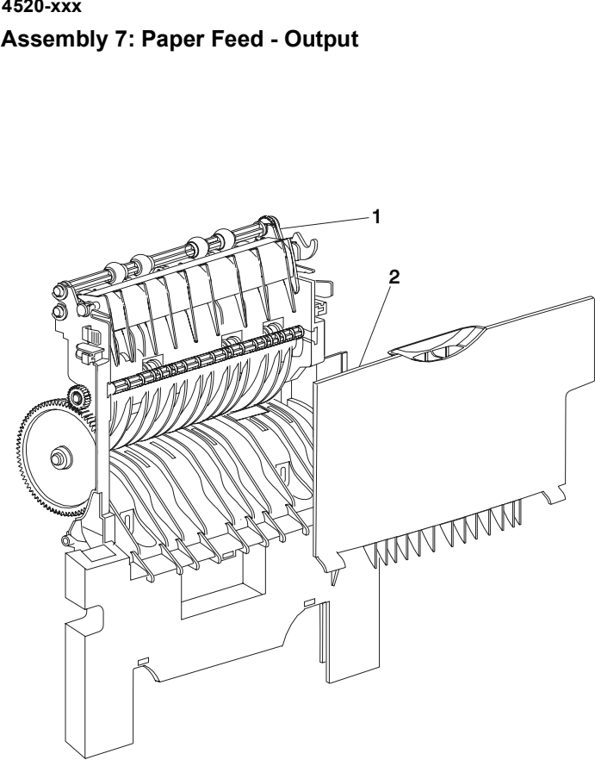

Assembly 7: Paper Feed - Output 1 99A2029 Redrive Assembly, 500 Input/250 Output 210/ Lexmark 99A2029 Redrive Assembly 500 Input/250 Output 210/220 Fully refurbished with 90-day warranty 99A2029 Contact for Details 1 99A2151 Redrive Assembly, 250 Input/250 Output 001/ Lexmark 99A2151 Redrive assembly, 250 in/250 out Fully refurbished with 90-day warranty 99A2151 Contact for Details 2 99A1644 Door Assembly, Redrive 250 Lexmark 99A1644 Door Assembly Redrive 250-sheet Fully refurbished with 90-day warranty 99A1644 Retired, no longer available: Contact for alternatives Contact for Details NS 99A0104 Spring, Upper Diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 NS 99A1857 Deflector, Upper Redrive Lexmark 99A1857 Deflector Upper Redrive New 99A1857 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 99a1857 Deflector Upper Redrive Fully refurbished with 90-day warranty 99a1857 $35.00 NS 99A0263 Parts Packet, Screw (Duplex Path) Parts Catalog 7-17 Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details

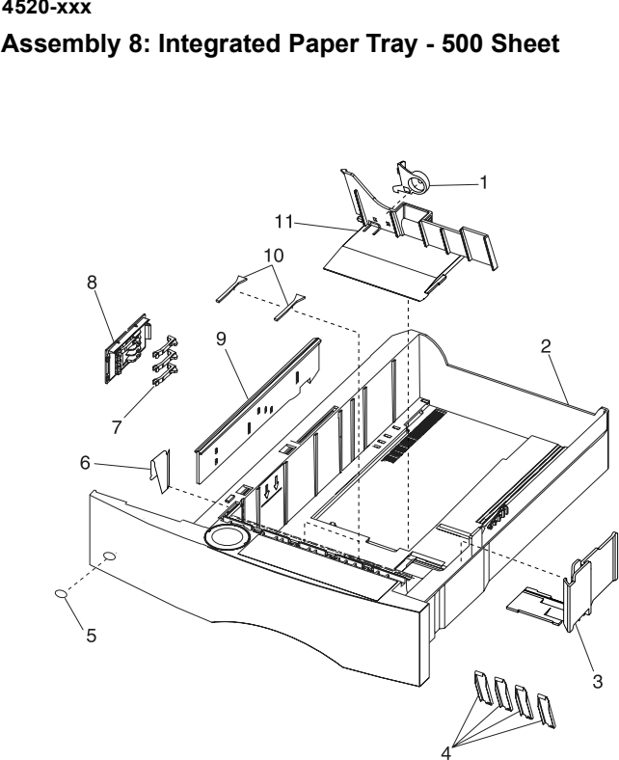

Assembly 8: Integrated Paper Tray - 500 Sheet 1 99A1601 Latch, Back Restraint 2 99A1576 Tray Assembly 500 Sheet Lexmark 99a1576 500 Sheet Paper Tray Fully refurbished with 90-day warranty 99a1576 $95.00 3 99A1895 Restraint, Side Lexmark 99A1895 Restraint Side 500 Sheet Fully refurbished with 90-day warranty 99A1895 Contact for Details 4 99A0292 Strip, Wear 5 99A1812 Label, Tray Option Number 6 99A1583 Plate, 500 Tray Wear Lexmark 99A1583 Plate 500-sheet tray wear New 99A1583 (New) Contact for Details 7 99A0126 Finger, Autosize 8 99A0124 Plate, Snap-in 9 99A1582 Slider, Autosize 500 Lexmark 99A1582 Slider Autosize 500-Sheet New 99A1582 (New) Contact for Details 10 99A0120 Pad, Restraint 11 99A2093 Restraint, Back Parts Catalog 7-19

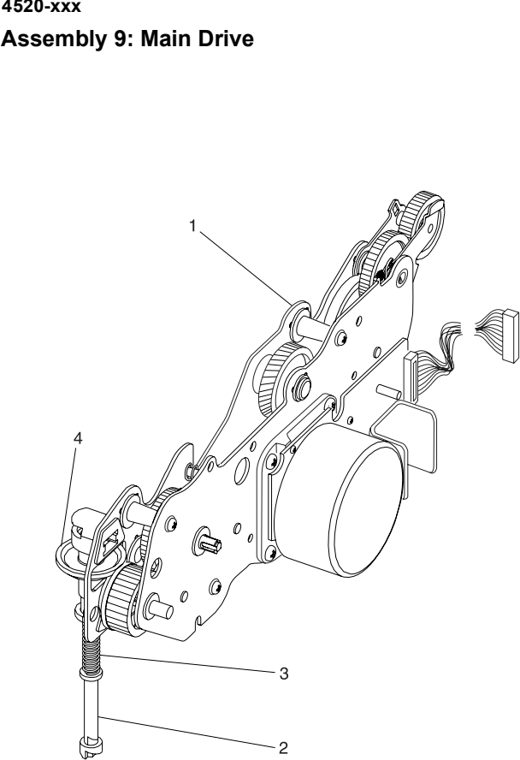

Assembly 9: Main Drive 1 99A2030 Gearbox, w/Motor Lexmark 99A2030 Gearbox w/Motor Fully refurbished with 90-day warranty 99A2030 Contact for Details 2 99A0134 Shaft, Power Takeoff 250 2 99A1569 Shaft, Power Takeoff 500 Lexmark 99A1569 Shaft Power Takeoff 500 New 99A1569 (New) $17.71 3 99A0275 Spring, Power Takeoff Shaft 4 99A2080 Gear, Bevel with Grease Packet NS 99A0263 Parts Packet, Screw (Gearbox Mounting) Parts Packet, Screw (Motor Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details NS 99A0260 Clip, Cable Parts Catalog 7-21

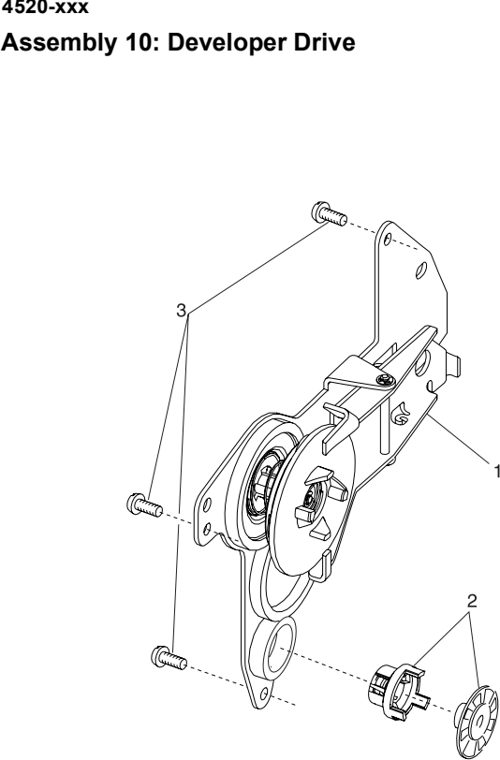

Assembly 10: Developer Drive 1 99A1544 Developer Drive Assembly Lexmark 99A1544 Developer Drive Assembly Fully refurbished with 90-day warranty 99A1544 $19.00 2 99A2081 Parts Packet, Developer Drive Shaft, Coupler 3 99A0263 Parts Packet, Screw Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details

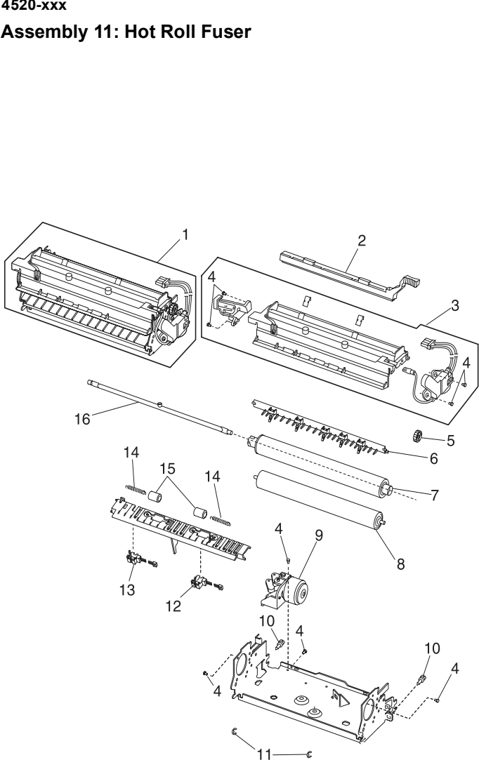

Assembly 11: Hot Roll Fuser 1 99A2423 Fuser Assembly w/115V 630W Lamp Lexmark 99A2423 Fuser Assembly T520 T522 Fully refurbished with 90-day warranty 99a2423 $125.00 1 99A2422 Fuser Assembly w/220V 630W Lamp Lexmark 99A2422 Fuser Assembly Fully refurbished with 90-day warranty 99A2422 Contact for Details 2 99A0725 Wiper Assembly, Wet Lexmark 99a0725 Wet Felt Fuser Wand (Wick) Wiper New 99a0725 (New) $11.00 3 56P0150 Kit, Fuser Cover Assembly with Thermistor, 56P0150 Cover Fuser Assembly with Thermistor New 56P0150 (New) $109.00 56P0150 Cover Fuser Assembly with Thermistor Fully refurbished with 90-day warranty 56P0150 $89.00 4 99A0263 Parts Packet, Screws: (cid:129) Contact Assembly (4) (cid:129) Solenoid Mounting (1) (cid:129) Board Cover Mounting(1) (cid:129) Fuser Cover Assembly (4) (cid:129) Hanger (7) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 5 99A1520 Gear, Upper Redrive 6 99A2035 Housing, Detack Assembly 7 99A2036 Hot Roll Lexmark 99A2036 Hot Roll New 99A2036 (New) Contact for Details 8 99A2038 Backup Roll Lexmark 99A2038 Backup Roll New 99A2038 (New) Contact for Details 9 99A2067 Envelop Conditioner Solenoid Assembly Lexmark 99A2067 Solenoid Assembly Envelope Conditioner New 99A2067 (New) $22.00 10 99A1649 Screw, Fuser Mounting 11 99A0267 Parts Packet, Retainer (Backup Roll 12 99A1651 Sensor, Narrow Media Lexmark 99A1651 Sensor Narrow Media New 99A1651 (New) $25.85 13 99A1551 Sensor, Exit 14 99A0897 Spring, Redrive Idler 15 99A0167 Roller, Redrive Idler 16 99A2050 Lamp, 115V 630W CC Gold Lexmark 99A2050 Fuser lamp for T520, T522 Fully refurbished with 90-day warranty 99A2050 Retired, no longer available: Contact for alternatives Contact for Details 16 99A2051 Lamp, 220V 630W CC Silver NS 99A1658 Cover, Fuser Wiper Cavity Lexmark 99a1658 Cover wand (wick) wiper New 99a1658 (New) $13.02 NS 99A2037 Grip Ring NS 99A0148 Gear, Idler Parts Catalog 7-25

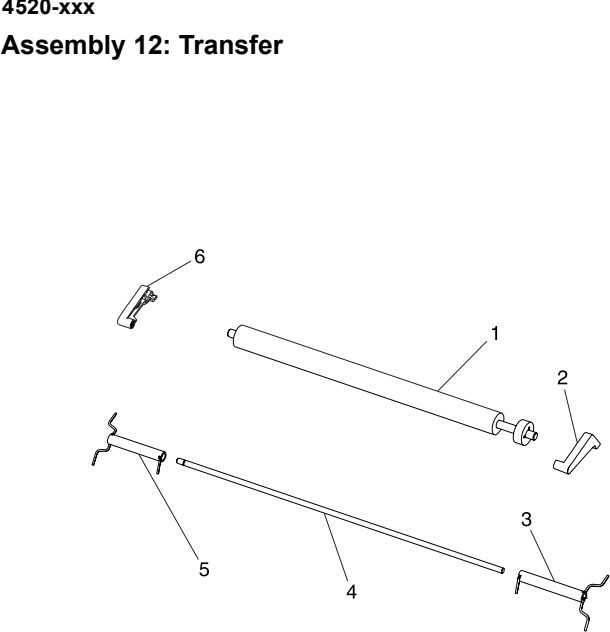

Assembly 12: Transfer 1 99A1015 Transfer Roll Assembly Lexmark 99A1015 Transfer Roll Assembly New 99A1015 (New) Contact for Details 2 99A0349 Arm, Transfer Roll Assembly Right 3 99A0184 Spring, Transfer Roll Right 4 99A0185 Shaft, Transfer Pivot 5 99A0181 Spring, Transfer Roll Left 6 99A1578 Arm, Transfer Roll Left NS 99A0267 Parts Packet, Retainer (Pivot Shaft) Parts Catalog 7-27

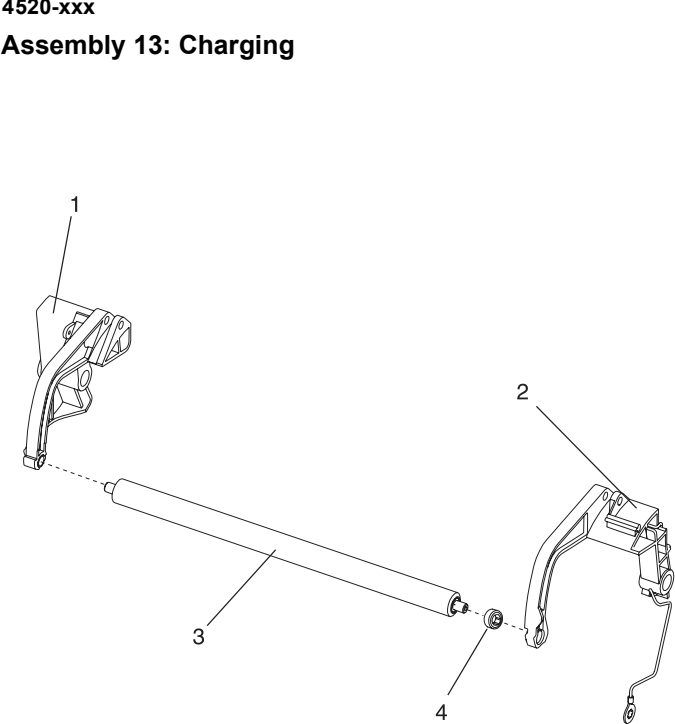

Assembly 13: Charging 1 99A0512 Link Assembly, Charge Left Kit 2 99A0513 Link Assembly, Charge Right Kit 3 99A1017 Roll Assembly, Charge Lexmark 99A1017 Charge Roller New 99A1017 12G0360 12G4462 (New) $9.00 4 99A1555 Bushing, Charge Roll NS 99A0263 Parts Packet, Screw (Charge Roll) Parts Catalog 7-29 Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details

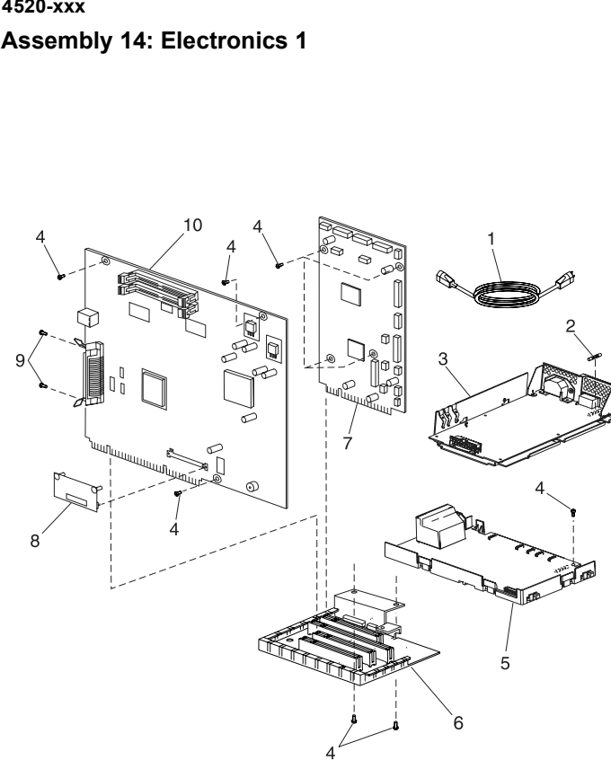

Assembly 14: Electronics 1 1 1342514 Power Cord Set, 8 ft. 1 1339535 Power Cord Set, 8 ft. 1 1339538 Italy, 6 ft. Paraguay, Uruguay, Finland, 1 1342536 Power Cord Set, 6 ft. - APG (LV) 1 1339537 Power Cord Set, 8 ft. - U.K., Ireland 1 1339539 Power Cord Set, 6 ft. - Israel, Germany 1 1339540 Power Cord Set, 6 ft. - Switzerland 1 1339541 Power Cord Set, 6 ft. - South Africa 1 1339546 Power Cord Set, 6 ft. - Two-Prong 1 1342534 Power Cord Set, 8 ft. - Chile (HV) 1 1339543 Power Cord Set, 8 ft. - Denmark 1 1339542 Power Cord Set, 6 ft. - Italy 1 1374067 Power Cord Set, 8 ft. - Peru (HV) 1 1339544 Power Cord Set, 8 ft. - Straight 1 1339545 Power Cord Set, 8 ft. - Right Angle 1 1342530 Power Cord Set - Brazil (HV), Paraguay (HV), 2 99A2082 Fuse, for 110 V ac LVPS 10 a 2 99A2083 Fuse, for 110 V ac LVPS 5 a 2 99A2090 Fuse, for 220 V ac LVPS 6.3 a 2 99A2091 Fuse, for 220 V ac LVPS 3.15 a 3 99A2043 LVPS, 110 V ac Lexmark 99A2043 Low voltage power supply Fully refurbished with 90-day warranty 99A2043 Contact for Details 3 99A2044 LVPS, 220 V ac Parts Catalog 7-31 Lexmark 99A2044 Low Voltage Power Supply 110 V ac Fully refurbished with 90-day warranty 99A2044 Contact for Details

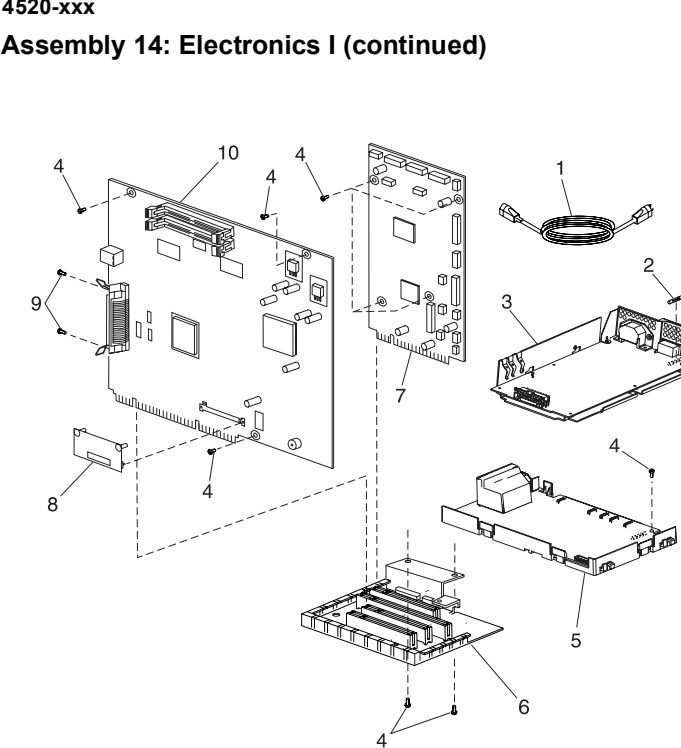

Assembly 14: Electronics I (continued) 4 99A0263 Parts Packet, Screw(s): (cid:129) Controller Board Mtg (2) (cid:129) Controller Board Mtg Front (2) (cid:129) Controller Mtg Ground (1) (cid:129) Engine Board Mtg (6) (cid:129) Engine Board Mtg Top (2) (cid:129) HVPS Mtg (cid:129) INA Cover Mtg (12) (cid:129) Interconnect Board Mtg (2) (cid:129) Interconnect Board Shield Ground (1) (cid:129) Interconnect Shield Mtg (5) (cid:129) Outer Shield Mtg (10) (cid:129) Parallel Connector Mtg (2) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 5 99A2045 Power Supply, High Voltage Lexmark 99A2045 Power Supply, High Voltage HVPS Fully refurbished with 90-day warranty 99A2045 Contact for Details Lexmark 99A2045 Power supply high voltage HVPS New 99A2045 (New) Contact for Details 6 99A2046 Interconnect Board Assembly 2 slot 210/220 99A2046 Interconnect Board Assembly 2 slot 210/22 Fully refurbished with 90-day warranty 99A2046 Contact for Details 6 99A2152 Interconnect Board Assembly 1 slot 001/002 99A2152 Interconnect Board Assembly 1 slot 001/002 Fully refurbished with 90-day warranty 99A2152 $34.00 7 56P1005 Engine Board Assembly 210/220 Lexmark 56P1005 Engine Board T522 Fully refurbished with 90-day warranty 56P1005 $92.00 Retired, no longer available: Contact for alternatives Lexmark 56P1005 Advanced Exchange Engine Board T522 Fully refurbished with 90-day warranty 56P1005 Advanced Exchange $92.00 Retired, no longer available: Contact for alternatives 7 56P1004 Engine Board Assembly 001/002 Lexmark 56P1004 Engine Board T520 Fully refurbished with 90-day warranty 56p1004 $60.00 Retired, no longer available: Contact for alternatives 8 99A2486 Card Assembly, Bar Code Lexmark 99A2486 Bar Code SIMM Fully refurbished with 90-day warranty 99A2486 Contact for Details 8 99A2200 Card Assembly, IPDS and SC5/TNE 8 99A2487 Card Assembly, Prescribe 5/4/2 Flash 8 99A2558 Card Assembly, Image Quick 9 99A0426 Screws, Parallel Connector Mounting 10 56P1190 Controller Board Assembly (Non Network) Lexmark 56p1190 Lexmark T520 RIP Board Fully refurbished with 90-day warranty 56p1190 L Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56p1190 Lexmark T520 RIP Board Fully refurbished with 90-day warranty 56p1190 L Advanced Exchange Contact for Details 10 56P1191 Controller Board Assembly (Network) 56P1191 Rip Board for T520n Fully refurbished with 90-day warranty 56P1191 L Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56P1191 Rip Board for T520n Fully refurbished with 90-day warranty 56P1191 L Advanced Exchange Contact for Details 10 56P1192 Controller Board Assembly (Non-Network) Lexmark 56P1192 Lexmark T522 RIP Board Fully refurbished with 90-day warranty 56P1192 L Retired, no longer available: Contact for alternatives Contact for Details 10 56P1193 Controller Board Assembly (Network) Lexmark 56p1193 Lexmark T522n RIP Board Fully refurbished with 90-day warranty 56P1193 L Retired, no longer available: Contact for alternatives Contact for Details Lexmark 56p1193 Lexmark T522n RIP Board Fully refurbished with 90-day warranty 56p1193 L Advanced exchange Retired, no longer available: Contact for alternatives Contact for Details

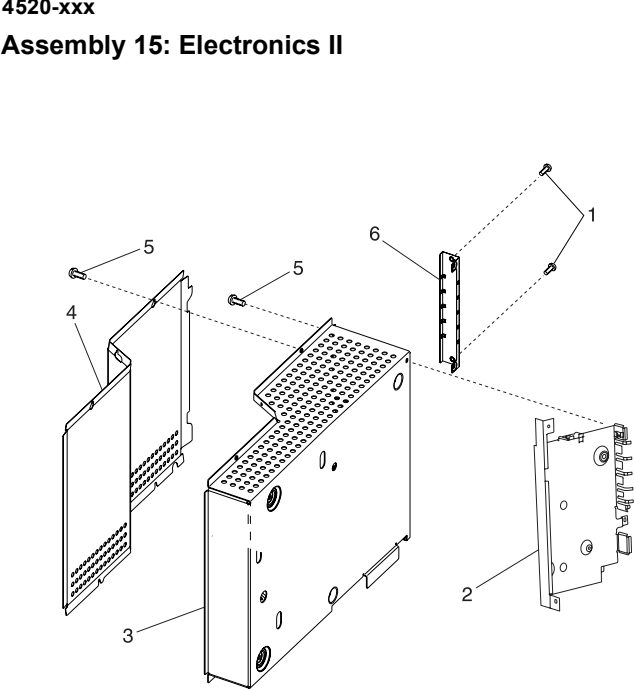

Assembly 15: Electronics II 1 99A0263 Parts Packet, Screw (INA Cover Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 2 99A2084 Engine Board Shield Assembly 3 99A2049 Shield, Inner Assembly, 2 Slot 210/220 Lexmark 99A2049 Shield Inner Assembly 2 Slot 210/220 New 99A2049 (New) Contact for Details 3 99A2156 Shield, Inner Assembly, 1 Slot 001/002 4 99A2094 Shield, Outer 2 Slot 210/220 Lexmark 99A2094 Shield Outer 2 slot Fully refurbished with 90-day warranty 99A2094 Contact for Details 4 99A2095 Shield, Outer 1 Slot 001/002 Lexmark 99A2095 Shield outer 1 Slot 001/002 Fully refurbished with 90-day warranty 99A2095 Contact for Details 5 99A0263 Parts Packet, Screw (Outer Shield Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 6 99A0408 Cover, INA Flat (Blank) NS 99A1611 Shield, Ethernet (Blank) NS 99A0227 Clip, Two Finger EMC NS 99A0347 Clip, Six Finger EMC Parts Catalog 7-35

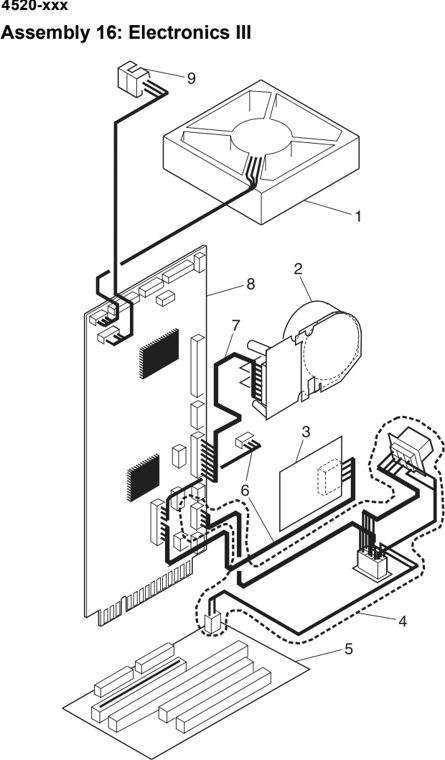

Assembly 16: Electronics III 1 99A0803 Fan, Main Lexmark 99A0803 Fan Fully refurbished with 90-day warranty 99A0803 $9.00 Lexmark 99A0803 Fan Main New 99A0803 (New) Contact for Details 2 99A2030 Gearbox, w/Motor Lexmark 99A2030 Gearbox w/Motor Fully refurbished with 90-day warranty 99A2030 Contact for Details 3 56P1139 Board, Input Tray (ITC) 56P1139 Board, Input Tray (ITC) Fully refurbished with 90-day warranty 56P1139 $25.00 56P1139 Board input tray (ITC) New 56P1139 (New) $12.00 4 99A2053 Cable, Auto Connect Bottom 99A2053 Cable Auto Connect Bottom New 99A2053 (New) $41.00 5 99A2046 Interconnect Board Assembly 99A2046 Interconnect Board Assembly 2 slot 210/22 Fully refurbished with 90-day warranty 99A2046 Contact for Details 6 99A2052 Cable, Integrated Tray 7 99A2054 Cable, Main Drive Motor 8 99A2042 Engine Board Assembly Lexmark 99A2042 T522 Engine Board Fully refurbished with 90-day warranty 99A2042 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 9 56P1049 Sensor, Standard Bin Level Parts Catalog 7-37 56P1049 Sensor standard bin level with cable New 56P1049 (New) $47.00 56P1049 Sensor, Standard Bin Level Fully refurbished with 90-day warranty 56P1049 $34.00

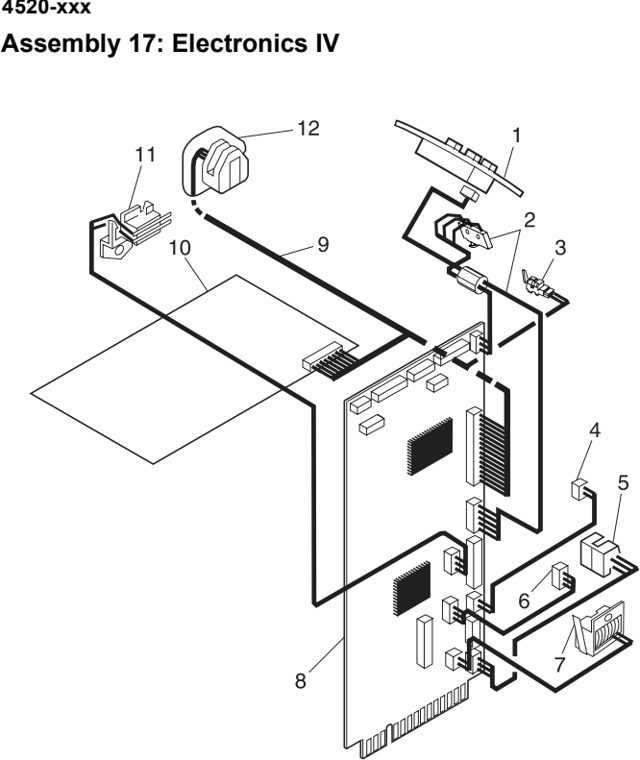

Assembly 17: Electronics IV 1 99A2014 Operator Panel Assembly 110 V Lexmark 99A2014 Operator Panel Assembly 110V New 99A2014 (New) Contact for Details Lexmark 99A2014 Operator Panel Fully refurbished with 90-day warranty 99A2014 $9.25 1 99A2015 Operator Panel Assembly 220 V 2 99A2060 Switch, Cover Open w/Operator Panel Cable 3 99A0053 Sensor, Input Lexmark 99A0053 Input Sensor Fully refurbished with 90-day warranty 99A0053 $15.77 4 99A2079 Pick Arm Assembly (500) 210/220 Lexmark 99a2079 500-Sheet Pickarm Assembly Fully refurbished with 90-day warranty 99a2079 $42.25 4 99A2157 Pick Arm Assembly (250) 001/002 Lexmark 99A2157 250-Sheet Pickarm Assembly Fully refurbished with 90-day warranty 99A2157 $11.27 Lexmark 99A2157 Pick Arm Assembly (250) 001/002 New 99A2157 (New) $15.20 5 99A2071 Sensor, MPT Paper Out 6 99A2079 Pick Arm Assembly (500) 210/220 Lexmark 99a2079 500-Sheet Pickarm Assembly Fully refurbished with 90-day warranty 99a2079 $42.25 6 99A2157 Pick Arm Assembly (250) 001/002 Lexmark 99A2157 250-Sheet Pickarm Assembly Fully refurbished with 90-day warranty 99A2157 $11.27 Lexmark 99A2157 Pick Arm Assembly (250) 001/002 New 99A2157 (New) $15.20 7 99A2438 MPT Solenoid Lexmark 99A2438 Solenoid MPT Fully refurbished with 90-day warranty 99A2438 Contact for Details 8 99A2042 Engine Board Assembly Lexmark 99A2042 T522 Engine Board Fully refurbished with 90-day warranty 99A2042 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 9 99A2055 Cable, Front Harness Lexmark 99A2055 Cable Front Harness New 99A2055 (New) Contact for Details 10 99A2045 Power Supply, High Voltage Lexmark 99A2045 Power Supply, High Voltage HVPS Fully refurbished with 90-day warranty 99A2045 Contact for Details Lexmark 99A2045 Power supply high voltage HVPS New 99A2045 (New) Contact for Details 11 99A2087 Smart Contact Assembly Lexmark 99a2087 Contact Assembly Fully refurbished with 90-day warranty 99a2087 Contact for Details 12 99A0466 Sensor, Toner Cartridge Level Lexmark 99A0466 Sensor Toner Low Fully refurbished with 90-day warranty 99A0466 Contact for Details NS 99A2059 Cable, Deflector Parts Catalog 7-39

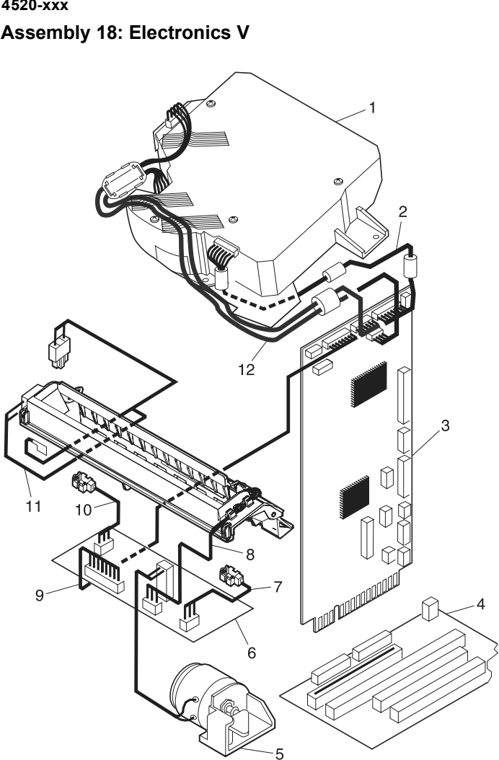

Assembly 18: Electronics V 1 99A2026 Printhead Assembly (Includes All Cables) Lexmark 99A2026 Printhead Assembly T520, T522 4520 4522 Fully refurbished with 90-day warranty 99A2026 Contact for Details 2 99A2056 Cable, Laser 3 99A2042 Engine Board Assembly Lexmark 99A2042 T522 Engine Board Fully refurbished with 90-day warranty 99A2042 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 4 99A2046 Interconnect Board Assembly 99A2046 Interconnect Board Assembly 2 slot 210/22 Fully refurbished with 90-day warranty 99A2046 Contact for Details 5 99A2067 Solenoid Assembly, Envelope Conditioner Lexmark 99A2067 Solenoid Assembly Envelope Conditioner New 99A2067 (New) $22.00 6 99A2039 Fuser Board Assembly 7 99A1551 Sensor, Exit 8 99A2033 Cover, Fuser Assembly with Thermistor 9 99A2062 Cable, Engine Board to Fuser Board 10 99A1651 Sensor, Narrow Media Lexmark 99A1651 Sensor Narrow Media New 99A1651 (New) $25.85 11 99A2061 Cable, Fuser AC Fuser to LVPS Parts Catalog 7-41

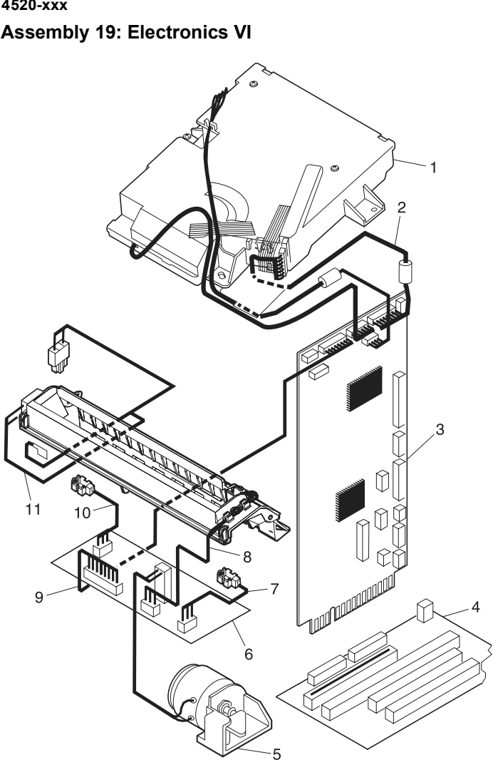

Assembly 19: Electronics VI 1 99A2026 Printhead Assembly (Includes All Cables) Lexmark 99A2026 Printhead Assembly T520, T522 4520 4522 Fully refurbished with 90-day warranty 99A2026 Contact for Details 2 99A2056 Cable, Laser 3 99A2042 Engine Board Assembly Lexmark 99A2042 T522 Engine Board Fully refurbished with 90-day warranty 99A2042 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 4 99A2046 Interconnect Board Assembly 99A2046 Interconnect Board Assembly 2 slot 210/22 Fully refurbished with 90-day warranty 99A2046 Contact for Details 5 99A2067 Solenoid Assembly, Envelope Conditioner Lexmark 99A2067 Solenoid Assembly Envelope Conditioner New 99A2067 (New) $22.00 6 99A2039 Fuser Board Assembly 7 99A1551 Sensor, Exit 8 99A2033 Cover, Fuser Assembly with Thermistor 9 99A2062 Cable, Engine Board to Fuser Board 10 99A1651 Sensor, Narrow Media Lexmark 99A1651 Sensor Narrow Media New 99A1651 (New) $25.85 11 99A2061 Cable, Fuser AC Fuser to LVPS Parts Catalog 7-43

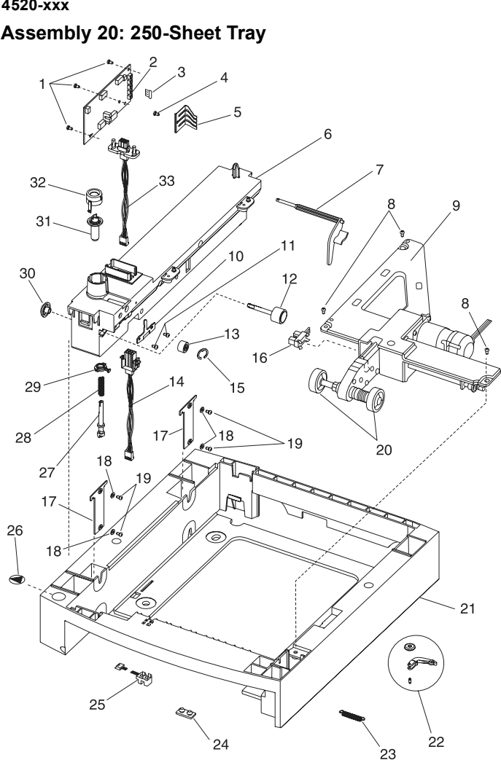

Assembly 20: 250-Sheet Tray 1 99A0263 Parts Packet, Screw (Option Board) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 2 99A1967 Board, Option Tray Lexmark 99A1967 Tray Board (ITC) Fully refurbished with 90-day warranty 99A1967 $10.14 3 99A0627 Jumper, pin 4 99A0263 Parts Packet, Screw (Switch Spring) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 5 99A0063 Spring, Switch Activate Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 6 99A0445 Stud Assembly, 250 Frame Lexmark 99A0445 Stud Assembly 250-Sheet Frame New 99A0445 (New) Contact for Details 7 99A0448 Arm, Paper Out 250 Lexmark 99A0448 250-Sheet Drawer Paper Out Arm Fully refurbished with 90-day warranty 99A0448 $19.99 Lexmark 99A0448 Arm paper out 250-sheet New 99A0448 (New) $22.24 8 99A0263 Parts Packet, Screw (Auto Comp Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 9 99A1054 Pick Arm Assembly Lexmark 99A1054 250 Sheet Pick Arm Assembly Fully refurbished with 90-day warranty 99A1054 $29.00 Lexmark 99A1054 Pick Arm Assembly New 99A1054 (New) Contact for Details 10 99A0277 Wear Plate, Pass Thru 250 Tray 11 99A0263 Parts Packet, Screw (Wear Plate Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 12 99A0276 Roll Assembly, Drive 500 Dual 13 99A0451 Roller, Skewed Backup 14 99A0282 Cable, 250 Tray Option 15 99A0450 Retainer, Roller 16 99A0350 Sensor, Paper Low Lexmark 99A0350 Sensor Paper Level New 99A0350 (New) Contact for Details 17 99A0679 Bracket, 250 Frame Retention Lexmark 99A0679 Bracket 250-Sheet Frame Retention New 99A0679 (New) Contact for Details 18 99A0677 Parts Packet, Washer 19 99A0263 Parts Packet, Screw Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 20 99A0070 Roll Assembly, Pick Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 21 99A1638 Base, 250 Option Lexmark 99A1638 Base 250 Option Fully refurbished with 90-day warranty 99A1638 Contact for Details 22 99A0026 Tray Bias Arm Assembly Lexmark 99A0026 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 99A0026 $10.93 23 99A0419 Spring, Tray Bias Lexmark 99A0419 Tray Bias Spring Fully refurbished with 90-day warranty 99A0419 Contact for Details 24 99A0058 Pad, Machine Mounting Lexmark 99A0058 Mounting Pads Fully refurbished with 90-day warranty 99A0058 Contact for Details 25 99A0288 Sensor, Option Pass Thru Lexmark 99A0288 Pass Thru Sensor Fully refurbished with 90-day warranty 99A0288 $19.71 26 99A1666 Label, Options 27 99A0272 Shaft, 250 Drive 28 99A0275 Spring, Power Takeoff 29 99A0280 Bushing, Drive Shaft Low 30 99A0274 Gear, Feed Roll 31 99A0273 Gear, Bevel 32 99A0279 Bearing, Drive Shaft 33 99A0281 Cable, 250 Auto Connect Option Parts Catalog 7-45

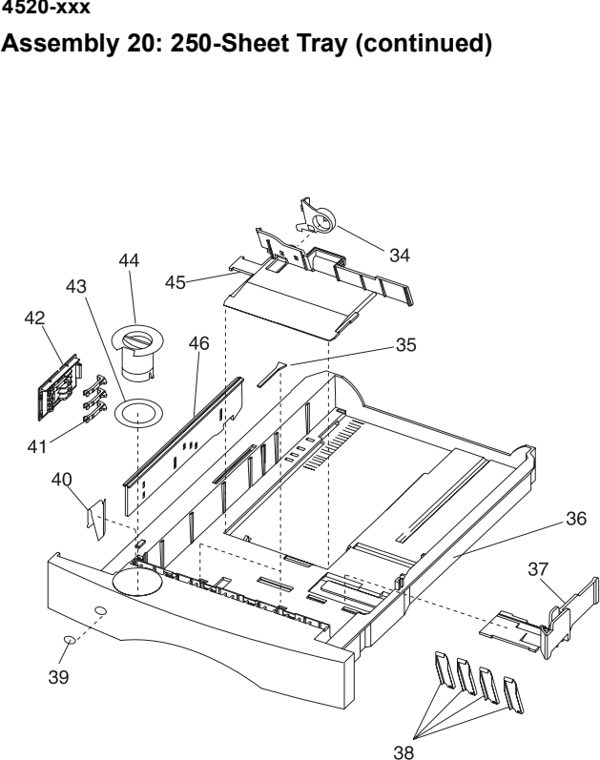

Assembly 20: 250-Sheet Tray (continued) 34 99A1601 Latch, Back Restraint 35 99A0120 Restraint Pad 36 99A1536 Tray Assembly, 250-Sheet Option Lexmark 99A1536 250-Sheet Tray Fully refurbished with 90-day warranty 99A1536 Contact for Details 37 99A0892 Restraint, Side 250-Sheet Tray 38 99A0119 Wear Strips 39 99A1829 Label, Tray Option Number 40 99A0121 Plate, 250 Tray Wear 41 99A0126 Finger, Autosize 42 99A0124 Plate, Snap-In 43 99A1952 Label, Paper Size 44 99A1537 Knob, Paper Size Lexmark 99A1537 Knob Paper Size Fully refurbished with 90-day warranty 99A1537 Contact for Details 45 99A0893 Restraint, Back 250 Sheet Tray Lexmark 99A0893 Restraint back 250-sheet tray New 99A0893 (New) Contact for Details 46 99A0127 Slider, Autosize 250 Lexmark 99A0127 Slider Autosize 250-Sheet Tray New 99A0127 (New) Contact for Details NS 99A0286 Spring, Backup Roller NS 99A1928 Spring, Bellcrank 250 Tray Option NS 99A0438 Bushing, Drive Roll NS 99A0278 Bellcrank, Roller Release Parts Catalog 7-47

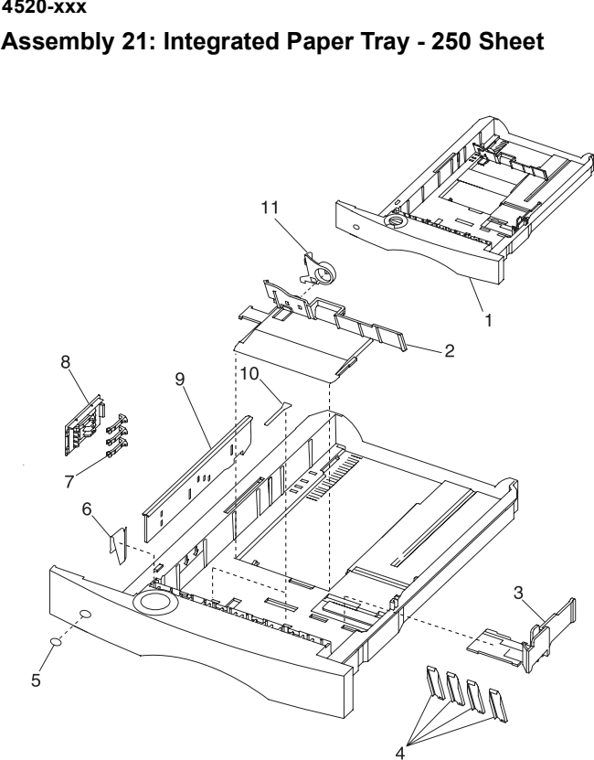

Assembly 21: Integrated Paper Tray - 250 Sheet 1 99A1536 Tray, Integrated 250 Sheet Lexmark 99A1536 250-Sheet Tray Fully refurbished with 90-day warranty 99A1536 Contact for Details 2 99A2160 Restraint, Back 250 Sheet Tray 3 99A1894 Restraint, Side 250 Sheet Tray Lexmark 99A1894 Restraint Side 250-Sheet Tray New 99A1894 (New) $67.69 4 99A0119 Wear Strips 5 99A1812 Label, Tray Option Number 6 99A0121 Clip, 250 Tray Wear 7 99A0126 Finger, Autosize 8 99A0124 Plate, Snap-In 9 99A0127 Slider, Autosize 250 Lexmark 99A0127 Slider Autosize 250-Sheet Tray New 99A0127 (New) Contact for Details 10 99A0120 Restraint Pad 11 99A1601 Latch, Back Restraint Parts Catalog 7-49

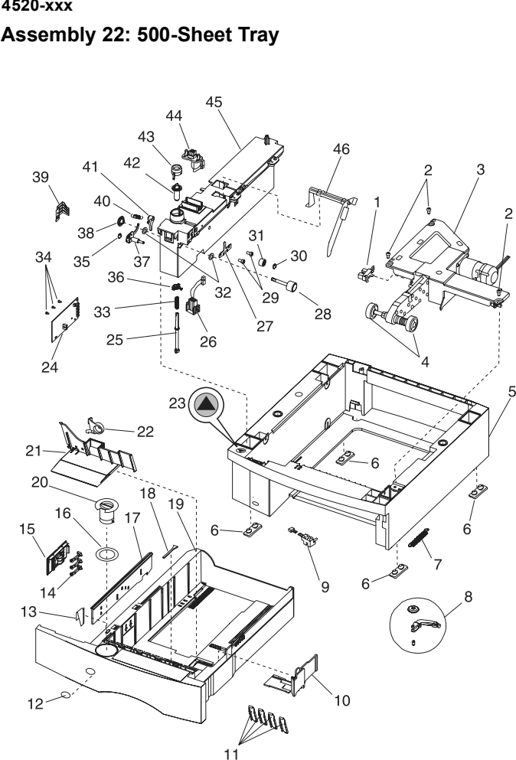

Assembly 22: 500-Sheet Tray 1 99A0350 Sensor, Paper Low Lexmark 99A0350 Sensor Paper Level New 99A0350 (New) Contact for Details 2 99A0263 Parts Packet, Screw (Auto Comp Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 3 99A0405 Pick Arm Assembly Lexmark 99A0405 Pickup Arm Assembly 500-Sheet Drawer Fully refurbished with 90-day warranty 99A0405 Contact for Details Lexmark 99A0405 Pickup Arm Assembly 500-Sheet Drawer New 99A0405 (New) Contact for Details 4 99A0070 Pick Roll Assembly Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 5 99A1636 Base, 500 Tray Lexmark 99A1636 Base Assembly 500 Fully refurbished with 90-day warranty 99A1636 Contact for Details 6 99A0058 Pad, Base 500 Lexmark 99A0058 Mounting Pads Fully refurbished with 90-day warranty 99A0058 Contact for Details 7 99A0419 Spring, Tray Bias Lexmark 99A0419 Tray Bias Spring Fully refurbished with 90-day warranty 99A0419 Contact for Details 8 99A0026 Tray Bias Arm Assembly Lexmark 99A0026 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 99A0026 $10.93 9 99A0288 Sensor, Option Pass Thru Lexmark 99A0288 Pass Thru Sensor Fully refurbished with 90-day warranty 99A0288 $19.71 10 99A0895 Restraint, Side 500-Sheet Tray 11 99A0292 Wear Strips 12 99A1829 Label, Tray Option Number 13 99A1583 Plate, 500 Tray Wear Lexmark 99A1583 Plate 500-sheet tray wear New 99A1583 (New) Contact for Details 14 99A0126 Finger, Autosize 15 99A0124 Plate, Snap-In 16 99A1952 Label, Paper Size 17 99A1582 Slider, Autosize 500 Lexmark 99A1582 Slider Autosize 500-Sheet New 99A1582 (New) Contact for Details 18 99A0120 Restraint Pad 19 99A1576 Tray Assembly, 500 Sheet Lexmark 99a1576 500 Sheet Paper Tray Fully refurbished with 90-day warranty 99a1576 $95.00 20 99A1537 Knob, Paper Size Lexmark 99A1537 Knob Paper Size Fully refurbished with 90-day warranty 99A1537 Contact for Details 21 99A1602 Restraint, Back 500-Sheet Tray Lexmark 99A1602 Back Restraint 500-sheet tray New 99A1602 (New) Contact for Details 22 99A1601 Latch, Back Restraint 23 99A1666 Label, Options 24 99A1967 Board, Tray Lexmark 99A1967 Tray Board (ITC) Fully refurbished with 90-day warranty 99A1967 $10.14 25 99A0447 Shaft, 500 Drive Parts Catalog 7-51

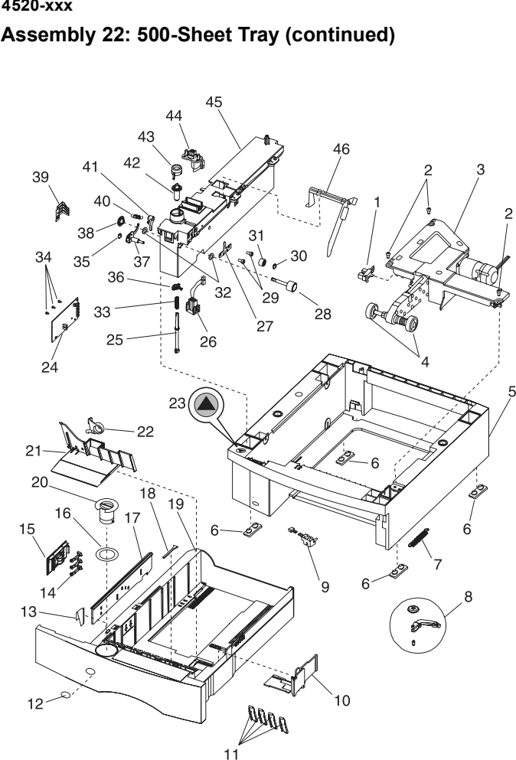

Assembly 22: 500-Sheet Tray (continued) 26 99A0282 Cable, 500 Auto Connect Bottom 27 99A1750 Wear Plate, Pass Thru 28 99A0276 Roll Assembly, Drive 500 29 99A0263 Parts Packet, Screw (Wear Plate Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 30 99A0450 Retainer, Roller 31 99A0451 Roller, Skewed Backup 32 99A0438 Bearing, Drive Roll 33 99A0275 Spring, Power Takeoff 34 99A0263 Parts Packet, Screw (Board Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 35 99A0267 Parts Packet, Retainer (Aligner Assembly) 36 99A0280 Bearing, Drive Shaft Low 37 99A0446 Aligner Assembly, Paper 38 99A0274 Gear, Feed Roll 39 99A0063 Spring, Switch Activate Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 40 99A0286 Spring, Backup Roller 41 99A1664 Bellcrank, Roller Release 42 99A0273 Gear, Bevel 43 99A0279 Bearing, Drive Shaft 44 99A0281 Cable, 500 Auto Connect Top 45 99A1702 Stud Assembly, 500 Frame Lexmark 99A1702 Stud Assembly 500 Frame New 99A1702 (New) $26.85 46 99A1645 Arm, Paper Out 500 Lexmark 99A1645 Paper Out Arm 500 Fully refurbished with 90-day warranty 99A1645 $21.84 NS 99A0452 Washer, Frame Mounting NS 99A1665 Deflector, Base 500 Lexmark 99A1665 Deflector Base 500 New 99A1665 (New) $26.38 NS 99A1667 Bracket, 500 Tray Retention NS 99A1929 Spring, Bellcrank 500 Option Tray Parts Catalog 7-53
Assembly 23: Duplex Unit 1 99A1674 Cover, Engine Board 2 99A0322 Main Frame Assembly 2 99A1693 Main Frame Assembly Lexmark 99A1693 Main Frame Assembly 500 Duplex New 99A1693 (New) $141.89 Retired, no longer available: Contact for alternatives 3 99A0324 Idler Assembly, Belt Tension 4 99A0326 Spring, Aligner 5 99A0323 Guide Assembly, Paper 6 99A1675 Guide Assembly, Paper 7 99A0314 Spring, Chassis Ground 8 99A0413 Parts Packet, Screw 9 99A0328 Belt, Motor 114 Gear 10 99A0329 Pulley, Main Drive 96/54 11 99A0321 Motor Assembly, DC 12 99A1673 Cable, D.C. Motor Tach 13 99A0299 Parts Packet, Cam Follower 14 99A0312 Actuator Assembly, Deflector 15 99A0413 Parts Packet, Screw 16 99A1130 Guide, Return RH Upper 17 99A0413 Parts Packet, Screw 18 99A0340 Guide, Return RH Lower 18 99A1680 Guide, Return RH Lower 19 99A1579 Guide, Upper 500 Duplex 20 99A1133 Tray Assembly, Jam 20 99A1134 Tray Assembly, Jam 21 99A0342 Guide, LH Lower Return 21 99A1682 Guide, LH Lower Return 22 99A1131 Guide, Return LH Upper 23 99A0341 Sensor, Exit - Optical 24 99A0413 Parts Packet, Screw 25 99A1668 Base Assembly, w/Tray 25 99A1677 Base Assembly, w/Tray 26 99A0316 Shaft, Duplex Drive 27 99A0315 Spring, Duplex Shaft 28 99A0325 Gear, Pass Thru Idler 29 99A0280 Bearing, Drive Shaft

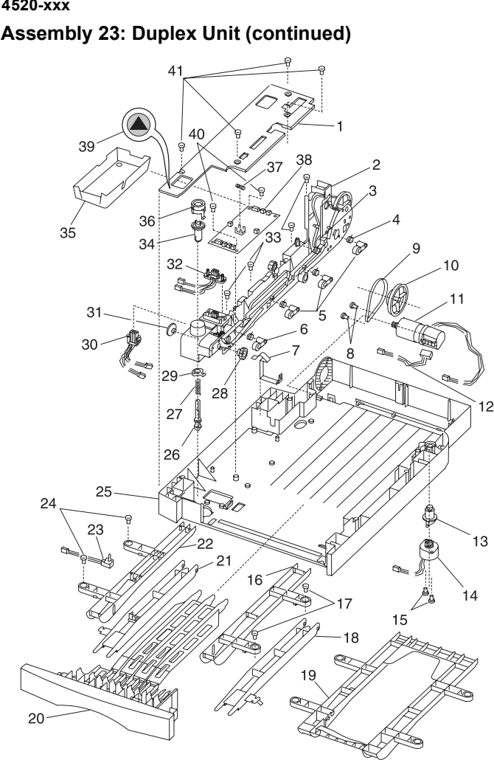

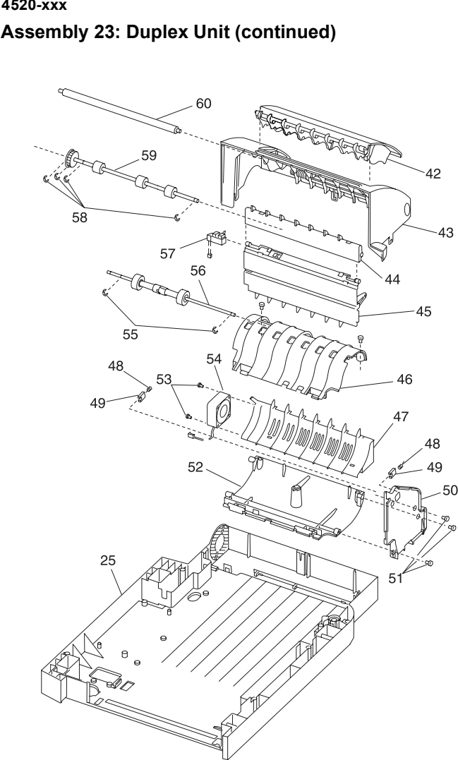

Assembly 23: Duplex Unit (continued) 30 99A0311 Cable, Auto Connect Bottom 31 99A0274 Gear, Pass Thru Drive Roll 32 99A0310 Cable, Auto Connect Top 33 99A0413 Parts Packet, Screw 34 99A0317 Gear, Duplex Bevel 35 99A0434 Pan, Engine Board Drip 36 99A0279 Bearing, Drive Shaft 37 99A0191 Fuse,.8A SB 38 99A1669 Board, System with Jumper 250/500 39 99A1666 Label, Options 40 99A0413 Parts Packet, Screw 41 99A0413 Parts Packet, Screw NS 99A1129 Roller, Duplex Pass Thru NS 99A0627 Jumper, Engine Board 250 Duplex NS 99A0404 Parts Packet, Retainer (6 mm Backup Roll) NS 99A0413 Parts Packet, Screw (M3x6L:G Supradrive) Parts Catalog 7-57

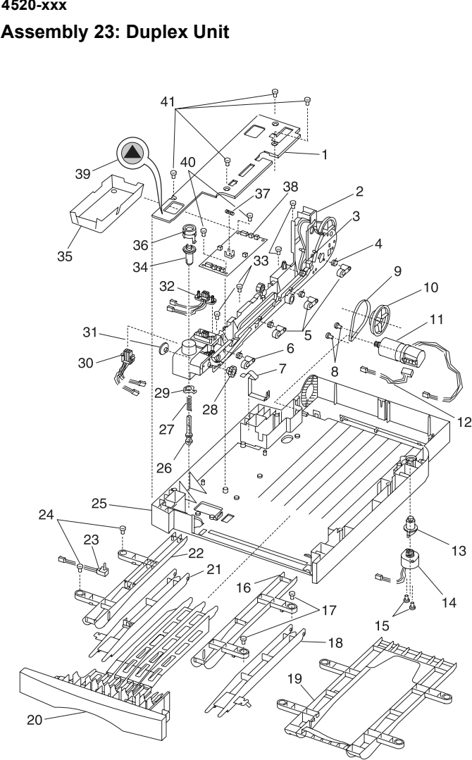

Assembly 23: Duplex Unit (continued) 42 99A1290 Top Cover Assembly, Movable 250 Duplex Lexmark 99A1290 Top Cover Assembly Movable 250 Duplex New 99A1290 (New) $88.32 42 99A1280 Top Cover Assembly, Movable 500 Duplex 43 99A1634 Top Cover Assembly, Fixed 250 Duplex Lexmark 99A1634 Top Cover Assembly Fixed 250 Duplex New 99A1634 (New) Contact for Details 43 99A1679 Top Cover Assembly, Fixed 500 Duplex Lexmark 99A1679 Top Cover Assembly Fixed 500 Duplex Fully refurbished with 90-day warranty 99A1679 $32.34 44 99A0435 Guide, Lower Entry 250 Duplex 44 99A1691 Guide, Lower Entry 500 Duplex 45 99A1672 Guide Assembly, Paper Decurl 46 99A0332 Guide, Center Drive Upper 47 99A0307 Air Plenum 48 99A0335 Spring, Decurl Shaft 49 99A0334 Bushing, Decurl Shaft 50 99A0952 Frame Assembly, 250 Duplex 51 99A0413 Parts Packet, Screw (Outer Frame) 52 99A0330 Guide Assembly, Center Drive 53 99A0269 Parts Packet, Fan Mounting Kit 54 99A0308 Fan, Cooling Duplex 55 99A0404 Parts Packet, Retainer (5 mm Main Drive) 56 99A0337 Main Drive Assembly 57 99A0319 Sensor, Input Optical 250 Duplex 57 99A1676 Sensor, Input Optical 500 Duplex 58 99A0404 Parts Packet, Retainer (6 mm Drive Roll) 59 99A0336 Shaft Assembly, Drive 250 Duplex 59 99A1692 Shaft Assembly, Drive 3 Roll 500 Duplex Lexmark 99A1692 Shaft Assembly Drive 3 Roll 500 Duplex New 99A1692 (New) $28.63 60 99A1059 Shaft Assembly, Decurl NS 99A0413 Parts Packet, Screw (Tensioner) NS 99A0404 Parts Packet, Retainer (6 mm Clutch Roll) Parts Packet, Retainer (6 mm Top Cover) NS 99A0058 Feet, Duplex Base Lexmark 99A0058 Mounting Pads Fully refurbished with 90-day warranty 99A0058 Contact for Details NS 99A1695 Shaft Assembly, Drive 2 Roll 500 Duplex Lexmark 99A1695 Shaft Assembly Drive 2 Roll 500 Duplex New 99A1695 (New) $42.10 NS 99A1164 Guide, Debuckle Parts Catalog 7-59

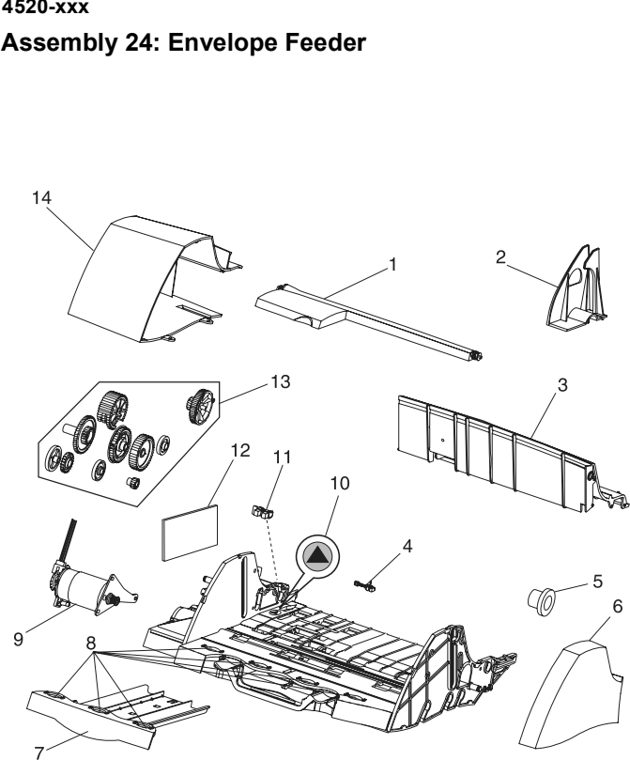

Assembly 24: Envelope Feeder 1 99A0389 Paper Weight Assembly 2 99A1694 Guide, Edge 3 99A1696 Cover, Top 4 99A0485 Sensor, Envelope Pass Thru 5 99A0393 Clutch, Restraint/Gear 6 99A1697 Cover, Right Side Lexmark 99A1697 Cover Right Side New 99A1697 (New) $35.19 7 99A0390 Support, Slide Out 8 99A0488 Roller, Support 9 99A0382 Motor, Stepper D.C. Lexmark 99A0382 Motor Stepper DC New 99A0382 (New) $62.14 10 99A1666 Label, Options 11 99A0388 Switch, Envelope Out 12 99A1700 Board Assembly, Electronic Control 13 99A0271 Parts Packet, Gear Kit 14 99A1698 Cover, Left Side Lexmark 99A1698 Cover Left Side New 99A1698 (New) $102.25 NS 99A0404 Parts Packet, Retainer (4 mm PP) Parts Packet, Retainer (Clip 5 mm Shaft) Parts Packet, Retainer (6 mm) Parts Packet, Retainer (7 mm Shaft) NS 99A0384 Shaft, Drive Pressure Roller Lexmark 99A0384 Shaft Drive Pressure Roller New 99A0384 53P8305 (New) $29.71 NS 99A0385 Cable, Auto Connect Front NS 99A0494 Spring, Cam Clutch NS 99A0427 Label, Envelope Orientation Icon NS 99A0469 Deflector Guide NS 99A1699 Guard, Pass Thru Sensor NS 99A0413 Screw, Top/Motor/Board NS 99A0484 Belt, Gear Drive NS 99A0491 Bracket, Stack Limiter NS 99A0400 Spring, Restraint Roll Shaft NS 99A0489 Spring, Latch Return NS 99A0487 Flag, Envelope Out Sensor Parts Catalog 7-61

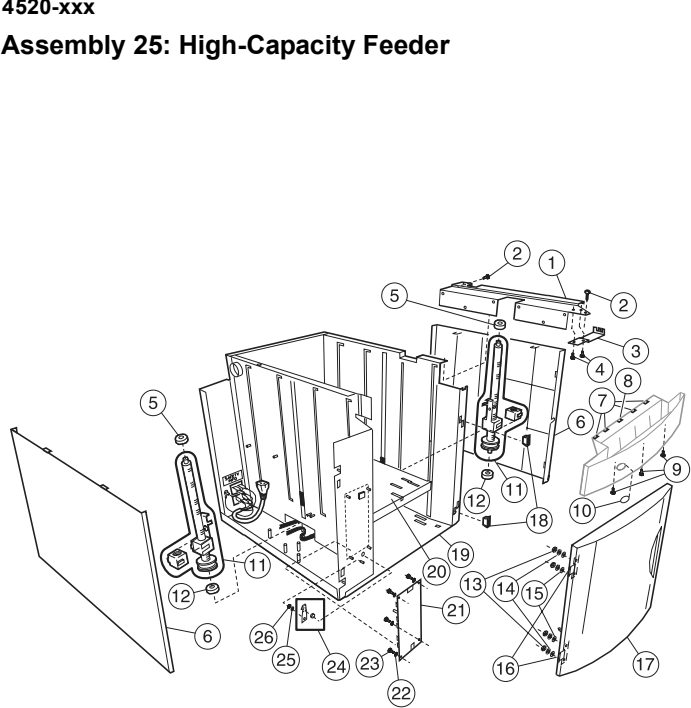

Assembly 25: High-Capacity Feeder 1 99A0660 Frame, Printer Support Frame 2 2 99A0675 Parts Packet, Screw 3 99A0698 Clamp, Feed Frame 4 99A0675 Parts Packet, Screw (Feed Frame Clamp) 5 99A0691 Bearing, Nyliner Leadscrew Top 6 99A0656 Cover, Side 7 99A0681 Strip, Wear 8 99A1818 Strip, Wear Dimple 9 99A1809 Deflector Assembly Front 10 99A0675 Parts Packet, Screw 11 99A1829 Label, Tray Option Number 12 99A0662 Transfer Lead Screw Assembly 13 99A0716 Bearing, Leadscrew Bottom 14 99A0676 Parts Packet, Nut (6-32 Hinge Mounting) 15 99A0677 Parts Packet, Washer (Hinge Mounting Flat) 16 99A0677 Parts Packet, Washer (Hinge Mounting Star) 17 99A0657 Hinge, Door 18 99A0655 Door Assembly, Front 19 99A0658 Magnet, Door 20 99A0650 Frame Assembly 21 99A0661 Tray Assembly, Elevator 22 99A1806 Card Assembly, 2000 Option Control 23 99A0677 Parts Packet, Washer (Card Asm Mounting) 24 99A0675 Parts Packet, Screw (Card Asm Mounting) 25 99A0392 Kit, Door Switch Spring and Bumper 26 99A0677 Parts Packet, Washer (Door Switch Spring 27 99A0676 Parts Packet, Nut (Door Switch Spring NS 99A0690 Cable, Optical Sensor Parts Catalog 7-63
Assembly 25: High Capacity Feeder (continued) 28 99A0188 Guide, Rear Paper use with 99A0219 29 99A0675 Parts Packet, Screw (Top Frame Mounting) 30 99A0219 Frame Assembly, Top with labels 31 99A0675 Parts Packet, Screw 32 99A0677 Parts Packet, Washer (Top Frame Clamp) 33 99A0719 Clamp, Top Frame Mounting 34 99A0676 Parts Packet, Nut (Base Mounting) 35 99A0677 Parts Packet, Washer (Base Mounting) 36 99A0675 Parts Packet, Screw (Base Mounting) 37 99A0663 Pulley, Idler 38 99A0664 Belt, Drive 39 99A1807 Cable, AC Internal Wiring 40 99A0676 Parts Packet, Nut (2-56 Switch Mounting) 41 99A0653 Switch, Lower Limit Microswitch 42 99A0676 Parts Packet, Nut (Power Supply Ground) 43 99A0677 Parts Packet, Washer (Motor Plate Mtg) 44 99A1808 Cord, AC External Jumper 45 99A0676 Parts Packet, Nut (Power Supply Cover) 46 99A0714 Cover, Power Supply 47 99A0675 Parts Packet, Screw (Power Supply Bd 48 99A0677 Parts Packet, Washer (Power Supply 49 99A0667 Power Supply Board Lexmark 99A0667 PCBA Power Supply 100-240V 4069-F12 Fully refurbished with 90-day warranty 99A0667 $79.00 50 99A0715 Cable, Low Voltage Power Supply 51 99A0685 Bushing 52 99A0676 Parts Packet, Nut - 2-56 53 99A0654 Switch, Paper Low 54 99A0651 Sensor Assembly, Paper Out/Upper Limit 55 99A0675 Parts Packet, Screw (Support 1 Frame Mtg) 56 99A0659 Frame, Printer Support 1 57 99A0695 Parts Kit, Paper Size Switch Assembly 58 99A0677 Parts Packet, Washer (Sensor Bracket Mtg) 59 99A0675 Parts Packet, Screw (Sensor Bracket Mtg) Parts Catalog 7-65

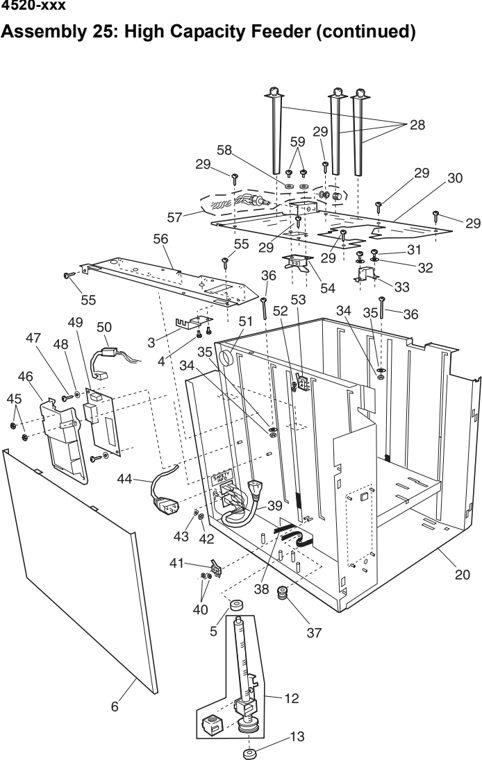

Assembly 25: High Capacity Feeder (continued) 60 99A1793 Parts Packet, Screw w/washer (Motor Mt) 61 99A1794 Parts Packet, Nut & washer 62 99A1795 Motor Assembly, DC 63 99A0672 Parts Packet, Foot (Stabilizer) 64 99A0687 Parts Packet, Mounting Feet 65 99A1796 Belt, DC Motor Drive 66 99A1797 Idler Pulley, Belt Tension 67 99A1798 Plate, Drive Pulley 68 99A1799 AC Receptacle, Lower AC 69 99A1800 Pulley, Drive 70 99A1801 Retainer, C-Clip 71 99A1802 AC Receptacle, Upper AC 72 99A1803 Cover, Top LVPS 73 99A1804 Nut w/lock washer, Top LVPS Cover 74 99A1804 Nut w/lock washer, Top LVPS Cover 75 99A1805 Grommet, Top LVPS Cover 76 99A0281 Cable, 250 Auto Connect 77 99A0279 Bearing, Drive Shaft 78 99A0273 Gear, Bevel 79 99A0263 Parts Packet, Screw (Frame Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 80 99A0276 Roll Assembly, Drive 250 Option 81 99A0451 Roll, Skew Backup 82 99A0267 Parts Packet, Retainer (Roller) 83 99A0675 Parts Packet, Screw (Wear Plate Mounting) 84 99A0277 Plate Wear, Pass Thru 85 99A0445 Stud Assembly, 250 Frame Lexmark 99A0445 Stud Assembly 250-Sheet Frame New 99A0445 (New) Contact for Details 86 99A0280 Bearing, Drive Shaft Low 87 99A0275 Spring, Power Takeoff 88 99A0272 Shaft, 250 Drive 89 99A0446 Aligner Assembly, Paper Parts Catalog 7-67

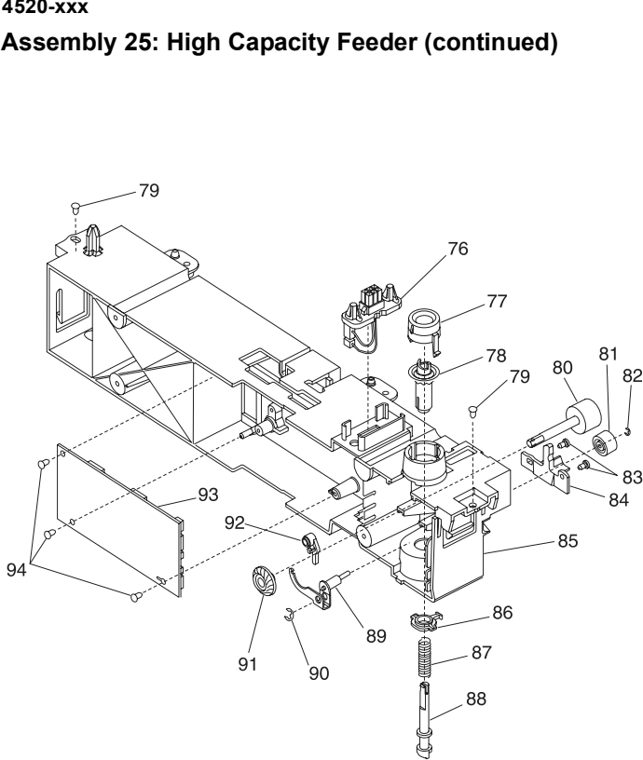

Assembly 25: High Capacity Feeder (continued) 90 99A0267 Parts Packet, Retainer (Aligner Assembly) 91 99A0274 Gear, Feed Roll 92 99A0278 Bellcrank, Roller Release 93 99A1967 Card Assembly, 2000 Tray Option Lexmark 99A1967 Tray Board (ITC) Fully refurbished with 90-day warranty 99A1967 $10.14 94 99A0263 Parts Packet, Screw (Tray Option Card Mtg) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details NS 99A0675 Parts Packet, Screw (Door to Door Frame NS 99A0676 Parts Packet, Nut Support Frame 1Hex, NS 99A0677 Parts Packet, Washer (Support Frame 1 NS 99A0684 Cable, HCIT-14Pin Flex Lexmark 99A0684 Cable HCIT-14 pin flex New 99A0684 (New) $26.96 NS 99A0286 Spring, Backup Roller Parts Catalog 7-69

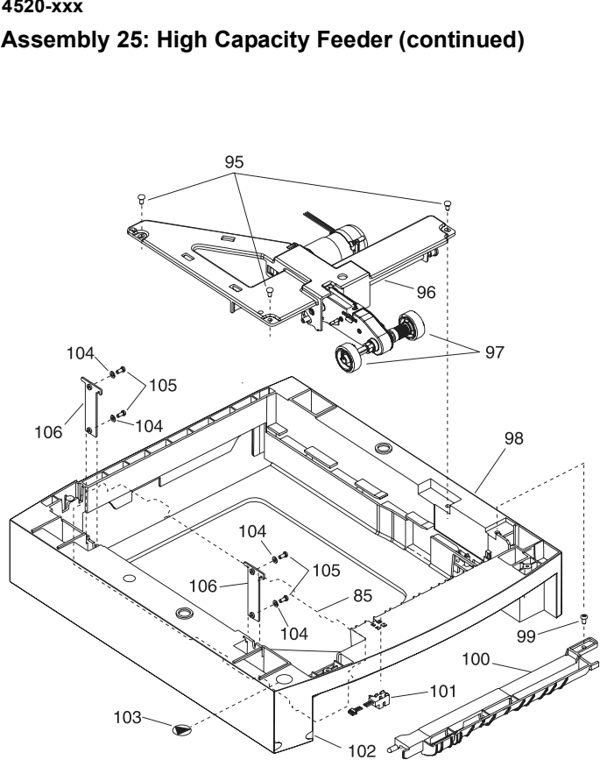

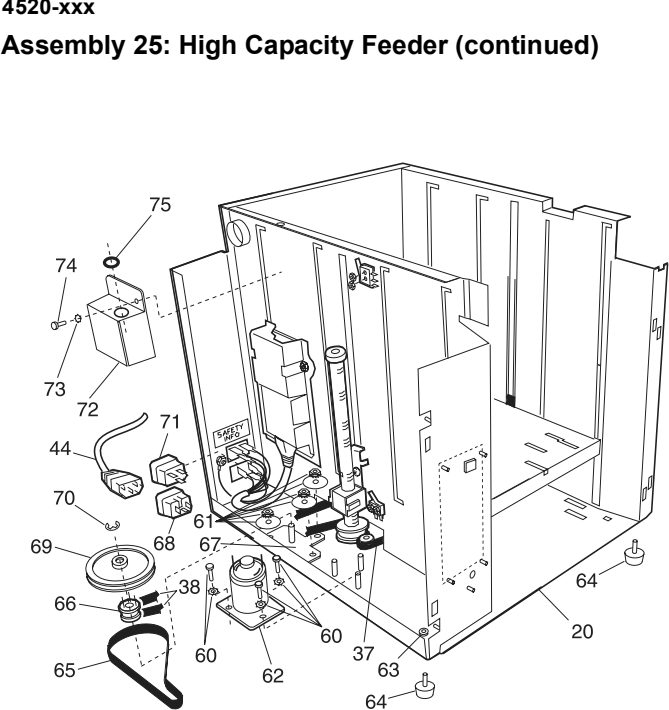

Assembly 25: High Capacity Feeder (continued) 95 99A0263 Parts Packet, Screw Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 96 99A1055 Arm Assembly, Pick 2000 Lexmark 99A1055 Pick Arm Assembly 2000-Sheet Drawer Fully refurbished with 90-day warranty 99A1055 $68.70 97 99A0070 Roll Assembly, Pick Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 98 99A0692 Base, 2000 Option 99 99A0263 Parts Packet, Screw (Deflector Mounting) Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 100 99A0678 Deflector, Base 101 99A0288 Sensor, Pass Thru Lexmark 99A0288 Pass Thru Sensor Fully refurbished with 90-day warranty 99A0288 $19.71 102 99A1812 Label, Tray Option Number 103 99A1666 Label, Options 104 99A0677 Parts Packet, Washer 105 99A0263 Parts Packet, Screw Lexmark 99A0263 Screws Parts Packet New 99A0263 (New) Contact for Details 106 99A0679 Bracket, 250 Frame Retention Lexmark 99A0679 Bracket 250-Sheet Frame Retention New 99A0679 (New) Contact for Details NS 99A0717 Cable, Paper Low Switch NS 99A0720 Cable, Lower Limit Switch Parts Catalog 7-71

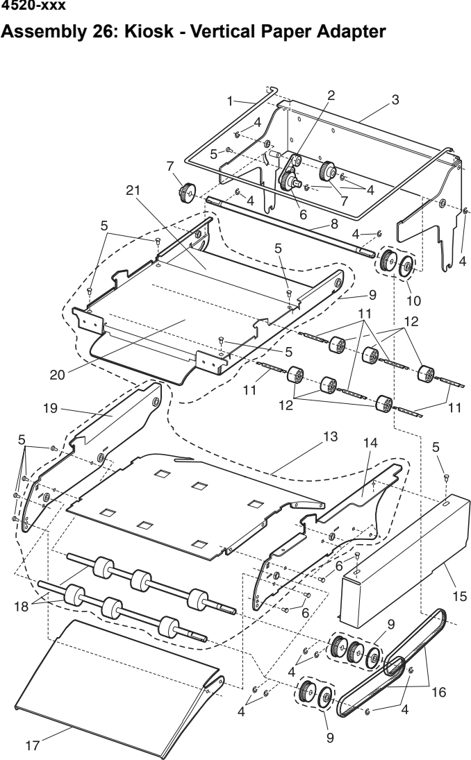

Assembly 26: Kiosk - Vertical Paper Adapter 1 99A0231 Bail, Support 2 99A1646 Arm Assembly, Pivot Lexmark 99A1646 Arm Assembly Pivot New 99A1646 (New) $360.65 3 99A1819 Mounting, Frame Assembly Lexmark 99A1819 Mounting Frame Assembly New 99A1819 (New) Contact for Details 4 99A0240 Parts Packet, Retainer 5 99A0234 Parts Packet, Screw 6 99A1705 Gear, Idler Lexmark 99A1705 Gear, Idler New 99A1705 (New) $21.64 7 99A1704 Gear, Idler Lexmark 99A1704 Gear Idler New 99A1704 (New) $46.05 8 99A0197 Shaft, Drive Rear 9 99A0079 Tray Assembly, Backup Roller 10 99A0208 Parts Packet, Pulley 11 99A0087 Spring, Backup Roller 12 99A0086 Roller, Backup Lexmark 99A0086 Roller backup New 99A0086 (New) $24.71 13 99A1706 Tray Assembly, Drive Roller Lexmark 99A1706 Tray Assembly Drive Roller New 99A1706 (New) $40.17 14 99A0125 Frame Assembly, Right Side 15 99A0232 Cover, Right 16 99A1820 Belt, 185G Lexmark 99A1820 Belt Main Drive New 99A1820 (New) Contact for Details Lexmark 99A1820 Belt, 185G Fully refurbished with 90-day warranty 99A1820 Contact for Details 17 99A0226 Guide, Paper Exit 18 99A0122 Shaft Assembly, Drive Roller 19 99A0137 Frame Assembly, Left Side 20 99A0088 Cover, Backup Tray 21 99A0085 Tray, Backup Roller Parts Catalog 7-73

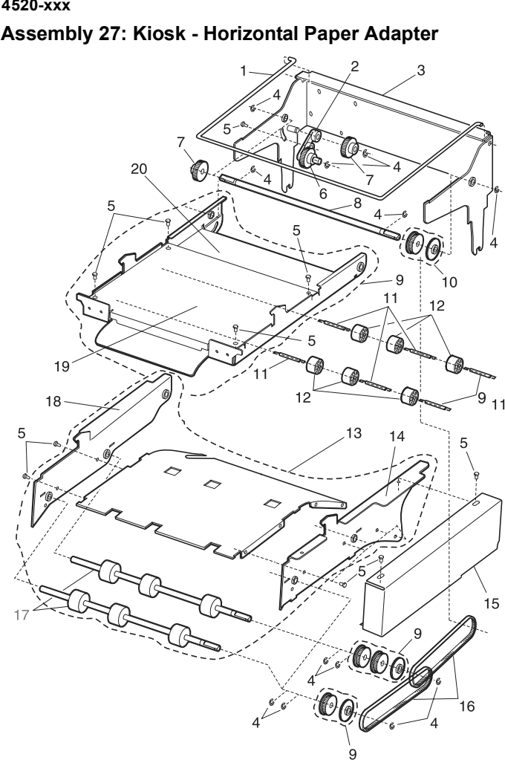

Assembly 27: Kiosk - Horizontal Paper Adapter 1 99A0231 Bail, Support 2 99A1646 Arm Assembly, Pivot Lexmark 99A1646 Arm Assembly Pivot New 99A1646 (New) $360.65 3 99A1819 Mounting, Frame Assembly Lexmark 99A1819 Mounting Frame Assembly New 99A1819 (New) Contact for Details 4 99A2409 Parts Packet, Retainer 5 99A0234 Parts Packet, Screw 6 99A1705 Gear, Idler Lexmark 99A1705 Gear, Idler New 99A1705 (New) $21.64 7 99A1704 Gear, Idler Lexmark 99A1704 Gear Idler New 99A1704 (New) $46.05 8 99A0197 Shaft, Drive Rear 9 99A0079 Tray Assembly, Backup Roller 10 99A0208 Parts Packet, Pulley 11 99A0087 Spring, Backup Roller 12 99A0086 Roller, Backup Lexmark 99A0086 Roller backup New 99A0086 (New) $24.71 13 99A1707 Tray Assembly, Drive Roller 14 99A0907 Frame Assembly, Right Side 15 99A0232 Cover, Right 16 99A1820 Belt, 185G Lexmark 99A1820 Belt Main Drive New 99A1820 (New) Contact for Details Lexmark 99A1820 Belt, 185G Fully refurbished with 90-day warranty 99A1820 Contact for Details 17 99A0122 Shaft Assembly, Drive Roller 18 99A0906 Frame Assembly, Left Side 19 99A0088 Cover, Backup Tray 20 99A0085 Tray, Backup Roller Parts Catalog 7-75

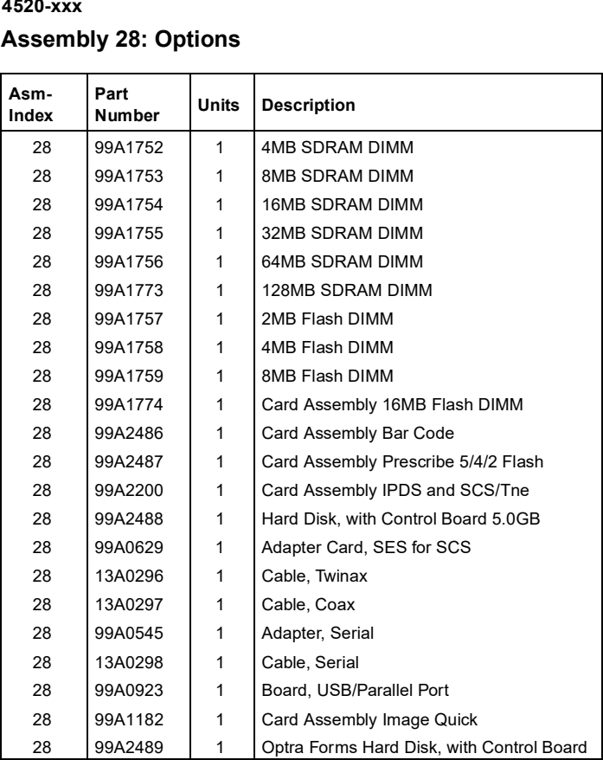

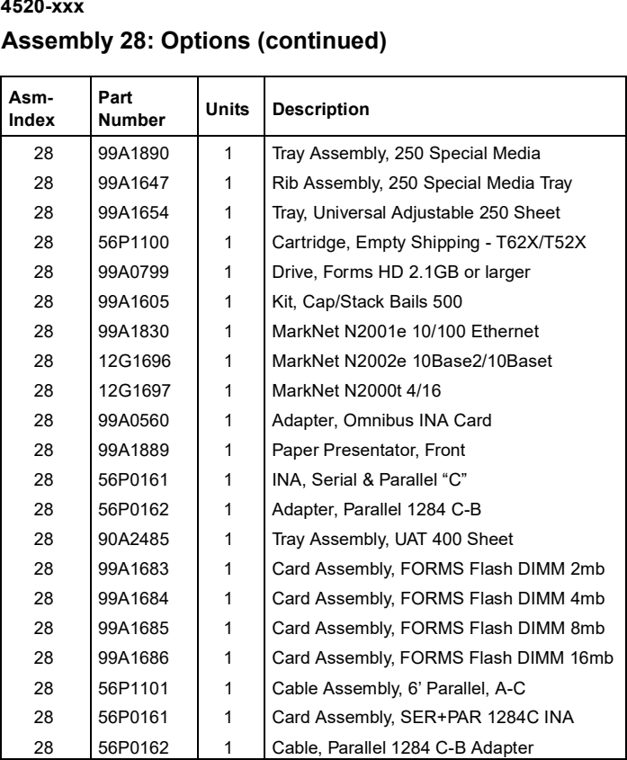

Assembly 28: Options 28 99A1752 4MB SDRAM DIMM Lexmark 99A1752 4MB SDRAM Fully refurbished with 90-day warranty 99A1752 $5.00 28 99A1753 8MB SDRAM DIMM Lexmark 99a1753 8MB Memory Fully refurbished with 90-day warranty 99a1753 $33.67 28 99A1754 16MB SDRAM DIMM Lexmark 99a1754 16MB Memory Fully refurbished with 90-day warranty 99a1754 $123.17 28 99A1755 32MB SDRAM DIMM Lexmark 99A1755 32MB Memory Fully refurbished with 90-day warranty 99A1755 $8.00 28 99A1756 64MB SDRAM DIMM 28 99A1773 128MB SDRAM DIMM Lexmark 99A1773 128MB Memory Fully refurbished with 90-day warranty 99A1773 $11.00 28 99A1757 2MB Flash DIMM Lexmark 99A1757 2MB Flash Memory Fully refurbished with 90-day warranty 99A1757 $9.00 28 99A1758 4MB Flash DIMM 28 99A1759 8MB Flash DIMM 28 99A1774 Card Assembly 16MB Flash DIMM 28 99A2486 Card Assembly Bar Code Lexmark 99A2486 Bar Code SIMM Fully refurbished with 90-day warranty 99A2486 Contact for Details 28 99A2487 Card Assembly Prescribe 5/4/2 Flash 28 99A2200 Card Assembly IPDS and SCS/Tne 28 99A2488 Hard Disk, with Control Board 5.0GB Lexmark 99A2488 Hard Drive With Attach Card Fully refurbished with 90-day warranty 99A2488 Contact for Details 28 99A0629 Adapter Card, SES for SCS Lexmark 99A0629 Coax/Twinax Interface Fully refurbished with 90-day warranty 99A0629 $61.46 28 13A0296 Cable, Twinax 28 13A0297 Cable, Coax 28 99A0545 Adapter, Serial 28 13A0298 Cable, Serial 28 99A0923 Board, USB/Parallel Port 28 99A1182 Card Assembly Image Quick 28 99A2489 Optra Forms Hard Disk, with Control Board
Assembly 28: Options (continued) 28 99A1890 Tray Assembly, 250 Special Media 28 99A1647 Rib Assembly, 250 Special Media Tray Lexmark 99A1647 Rib assembly 250-sheet special media tray New 99A1647 (New) $38.69 28 99A1654 Tray, Universal Adjustable 250 Sheet Lexmark 99A1654 250-Sheet (UAT) Tray New 99A1654 (New) $122.91 28 56P1100 Cartridge, Empty Shipping - T62X/T52X 28 99A0799 Drive, Forms HD 2.1GB or larger 28 99A1605 Kit, Cap/Stack Bails 500 28 99A1830 MarkNet N2001e 10/100 Ethernet 28 12G1696 MarkNet N2002e 10Base2/10Baset 28 12G1697 MarkNet N2000t 4/16 28 99A0560 Adapter, Omnibus INA Card Lexmark 99A0560 Tri-Port Adapter (Serial, LocalTalk and Infrared) New 99A0560 (New) Contact for Details 28 99A1889 Paper Presentator, Front Lexmark 99A1889 Paper Presentator Front New 99A1889 (New) $391.64 28 56P0161 INA, Serial & Parallel “C” Card Assembly, SER+PAR 1284C INA 28 56P0162 Adapter, Parallel 1284 C-B Cable, Parallel 1284 C-B Adapter Parts Catalog 7-77 28 90A2485 Tray Assembly, UAT 400 Sheet 28 99A1683 Card Assembly, FORMS Flash DIMM 2mb Lexmark 99A1683 OptraForms 2MB Fully refurbished with 90-day warranty 99a1683 $107.25 28 99A1684 Card Assembly, FORMS Flash DIMM 4mb Lexmark 99A1684 Optra Forms 4MB Flash Memory Fully refurbished with 90-day warranty 99a1684 $115.24 28 99A1685 Card Assembly, FORMS Flash DIMM 8mb 28 99A1686 Card Assembly, FORMS Flash DIMM 16mb 28 56P1101 Cable Assembly, 6’ Parallel, A-C

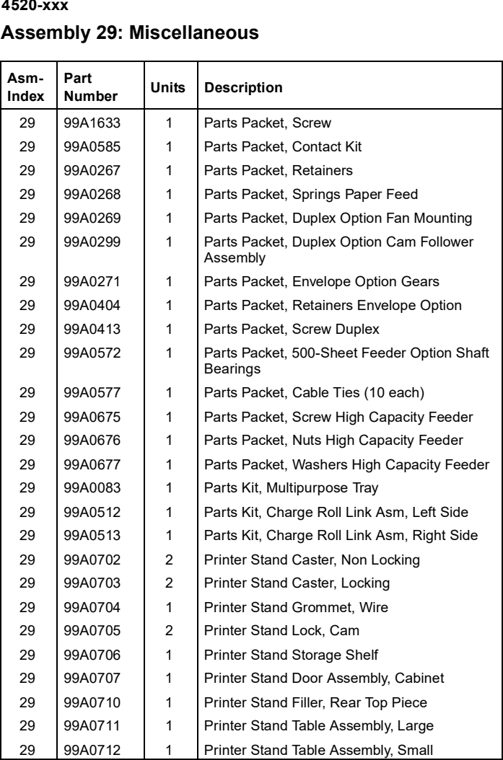

Assembly 29: Miscellaneous 29 99A1633 Parts Packet, Screw 29 99A0585 Parts Packet, Contact Kit 29 99A0267 Parts Packet, Retainers 29 99A0268 Parts Packet, Springs Paper Feed 29 99A0269 Parts Packet, Duplex Option Fan Mounting 29 99A0299 Parts Packet, Duplex Option Cam Follower 29 99A0271 Parts Packet, Envelope Option Gears 29 99A0404 Parts Packet, Retainers Envelope Option 29 99A0413 Parts Packet, Screw Duplex 29 99A0572 Parts Packet, 500-Sheet Feeder Option Shaft 29 99A0577 Parts Packet, Cable Ties (10 each) 29 99A0675 Parts Packet, Screw High Capacity Feeder 29 99A0676 Parts Packet, Nuts High Capacity Feeder 29 99A0677 Parts Packet, Washers High Capacity Feeder 29 99A0083 Parts Kit, Multipurpose Tray 29 99A0512 Parts Kit, Charge Roll Link Asm, Left Side 29 99A0513 Parts Kit, Charge Roll Link Asm, Right Side 29 99A0702 Printer Stand Caster, Non Locking Lexmark 99A0702 Stand Caster Non-Locking New 99A0702 (New) $33.21 29 99A0703 Printer Stand Caster, Locking Lexmark 99A0703 Printer Stand Caster Locking New 99A0703 (New) Contact for Details 29 99A0704 Printer Stand Grommet, Wire 29 99A0705 Printer Stand Lock, Cam 29 99A0706 Printer Stand Storage Shelf Lexmark 99A0706 Printer Stand Storage Shelf New 99A0706 (New) Contact for Details 29 99A0707 Printer Stand Door Assembly, Cabinet 29 99A0710 Printer Stand Filler, Rear Top Piece Lexmark 99A0710 Printer Stand Filler Rear Top Piece New 99A0710 (New) Contact for Details 29 99A0711 Printer Stand Table Assembly, Large Lexmark 99A0711 Printer Stand Table Assembly Large New 99A0711 (New) Contact for Details 29 99A0712 Printer Stand Table Assembly, Small Lexmark 99A0712 Printer Stand Table Assembly Small New 99A0712 (New) Contact for Details

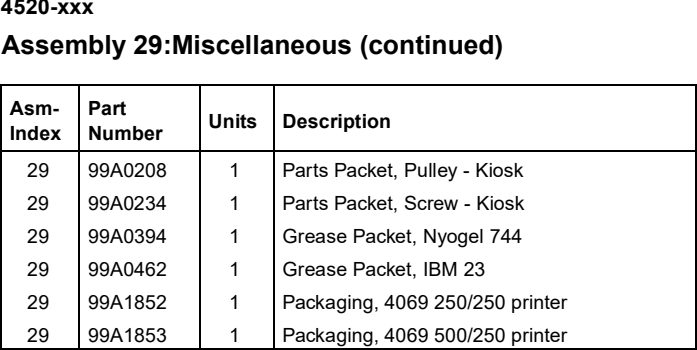

Assembly 29: Miscellaneous (continued) 29 99A0208 Parts Packet, Pulley - Kiosk 29 99A0234 Parts Packet, Screw - Kiosk 29 99A0394 Grease Packet, Nyogel 744 Lexmark 99A0394 IBM #23 Oil Fully refurbished with 90-day warranty 99A0394 Contact for Details 29 99A0462 Grease Packet, IBM 23 Lexmark 99A0462 #23 Nyogel Grease New 99A0462 (New) $14.72 29 99A1852 Packaging, 4069 250/250 printer 29 99A1853 Packaging, 4069 500/250 printer Parts Catalog 7-79
Other listed parts 40X0306 High Voltage Contact Kit Lexmark 40X0306 High Voltage Contact Kit New 40X0306 99a0585 (New) $34.71 53P8226 Restraint Pad 53P8226 Restraint Pad Fully refurbished with 90-day warranty 53P8226 $20.00 53P8227 Clip, 250 Tray Wear 53P8228 Plate Snap-In 53P8228 Plate Snap-In Fully refurbished with 90-day warranty 53P8228 $20.00 53P8229 Finger Autosize 53P8229 Finger Autosize Fully refurbished with 90-day warranty 53P8229 $20.00 53P8230 Cam 53P8230 Cam Fully refurbished with 90-day warranty 53P8230 Contact for Details 53P8331 Roller Skewed Backup Sale53P8331 Roller Skewed Backup New 53P8331 99a0451 (New) ~~$12.00~~ $8.00 53P8446 Paper Tray 250-sheet 53P8446 Paper Tray 250-sheet Fully refurbished with 90-day warranty 53P8446 $43.00 53P8473 Latch Back Restraint 53P8473 Latch Back Restraint Fully refurbished with 90-day warranty 53P8473 99a1601 $19.00 53P8483 Label, Tray Option Number 53P8823 Restraint, Side 250 Sheet Tray 53P9135 Restraint, back 500 53P9135 Restraint, back 500 Fully refurbished with 90-day warranty 53P9135 99a2093 Contact for Details 53P9136 Restraint, Back 250 Sheet Tray 56P0164 Lexmark T522N RIP Board Lexmark 56P0164 Lexmark T522N RIP Board Fully refurbished with 90-day warranty 56P0164 $51.71 Retired, no longer available: Contact for alternatives 56P0177 Lexmark T522 RIP Board Lexmark 56P0177 Lexmark T522 RIP Board Fully refurbished with 90-day warranty 56P0177 Advanced Exchange $49.71 Retired, no longer available: Contact for alternatives 56P0178 Lexmark T522N RIP Board Lexmark 56P0178 Lexmark T522N RIP Board Fully refurbished with 90-day warranty 56P0178 Retired, no longer available: Contact for alternatives Contact for Details 56P0190 Lexmark T522 RIP Board Lexmark 56P0190 Lexmark T522 RIP Board Fully refurbished with 90-day warranty 56P0190 L $49.71 Retired, no longer available: Contact for alternatives 56P0191 Lexmark T522N RIP Board Lexmark 56P0191 Lexmark T522N RIP Board Fully refurbished with 90-day warranty 56P0191 L Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details 56P1279 Wear Strips 56P1352 MPF Pad/Separator Arm Asm 56p1352 MPF Pad/Separator Arm Asm Fully refurbished with 90-day warranty 99a0083 53p8219 56p1352 Contact for Details 99A2088 T522 RIP Board Lexmark 99A2088 T522 RIP Board Fully refurbished with 90-day warranty 99A2088 Advanced Exchange $49.71 Retired, no longer available: Contact for alternatives Lexmark 99A2088 T522 RIP Board Fully refurbished with 90-day warranty 99A2088 Retired, no longer available: Contact for alternatives Contact for Details 99A2089 T522N RIP Board Lexmark 99A2089 T522N RIP Board Fully refurbished with 90-day warranty 99A2089 Advanced Exchange $51.71 Retired, no longer available: Contact for alternatives 99A2420 Maintenance Kit T520 T522 Lexmark 99A2420 Maintenance Kit T520 T522 Fully refurbished with 90-day warranty 99a2420 Retired, no longer available: Contact for alternatives Contact for Details 99A2451 HVPS High Voltage Power Supply Lexmark 99A2451 HVPS High Voltage Power Supply Fully refurbished with 90-day warranty 99A2451 Contact for Details 99A2452 LVPS 110v 4069-520/620 Lexmark 99A2452 LVPS 110v 4069-520/620 Fully refurbished with 90-day warranty 99A2452 Contact for Details FUN0020 T522 RIP Board Lexmark FUN0020 T522 RIP Board Fully refurbished with 90-day warranty FUN0020 Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details FUN0021 T522N RIP Board Lexmark FUN0021 T522N RIP Board Fully refurbished with 90-day warranty FUN0021 Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details FUN0041 T522N RIP Board Lexmark FUN0041 T522N RIP Board Fully refurbished with 90-day warranty FUN0041 Advanced Exchange Retired, no longer available: Contact for alternatives Contact for Details
