IBM Infoprint 1534 & 1634 (4926 & 4931) Parts






Looking for whole machines? Click here




IBM 4931-4D1 Infoprint Color 1634dn Printer
Fully refurbished with 90-day warranty
4931-4d1 39V1741
$699.00


IBM 4931-301 Infoprint Color 1634n Printer
Fully refurbished with 90-day warranty
4931-301 39V1739
$499.00

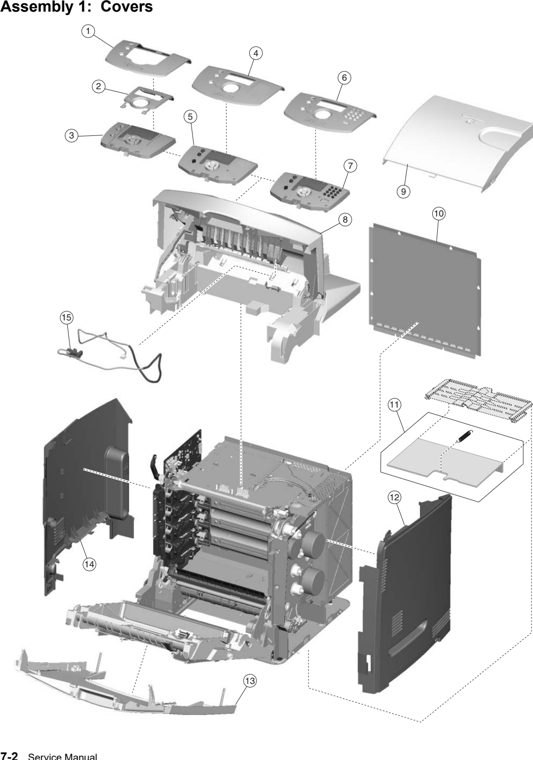

Assembly 1: Covers

1-1 40X1415 Outer bezel, Infoprint Color 1534

2 40X1448 Inner bezel, Infoprint Color 1534

3
40X1414 Operator Panel Assembly
New
40X1414 I (New)
$105.64

Retired, no longer available: Contact for alternatives



6

6
40X3588 Bezel (Duplex, Network)
New
40X3588 (New)
$16.65



1634 (duplex, network)
7
40X3583 Operator Panel Assembly 1634
New
40X3583 I (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$115.00



8

40X1451 Top Access Cover Assembly (Network) 2X
Fully refurbished with 90-day warranty
40X1451



8

40X3604 Top Access Cover Assembly (Network) 3X
Fully refurbished with 90-day warranty
40x3604



8
40X3605 Duplex Top Access Assembly 3X
New
40X3605 (New)
$162.66



9

40X1422 Exit Tray Cover 2X
Fully refurbished with 90-day warranty
40X1422



9

10

40X1427 Rear cover
Fully refurbished with 90-day warranty
40X1427



11

12

40X1425 Right cover
Fully refurbished with 90-day warranty
40X1425



13



13



13

13

40X3581 Front Access Door Cover Assembly (Non-Duplex Network) 3X
Fully refurbished with 90-day warranty
40X3581
$31.98



14

40X1426 Left cover
Fully refurbished with 90-day warranty
40X1426



15 40X3601 Bin full sensor with cable, Infoprint Color 1634

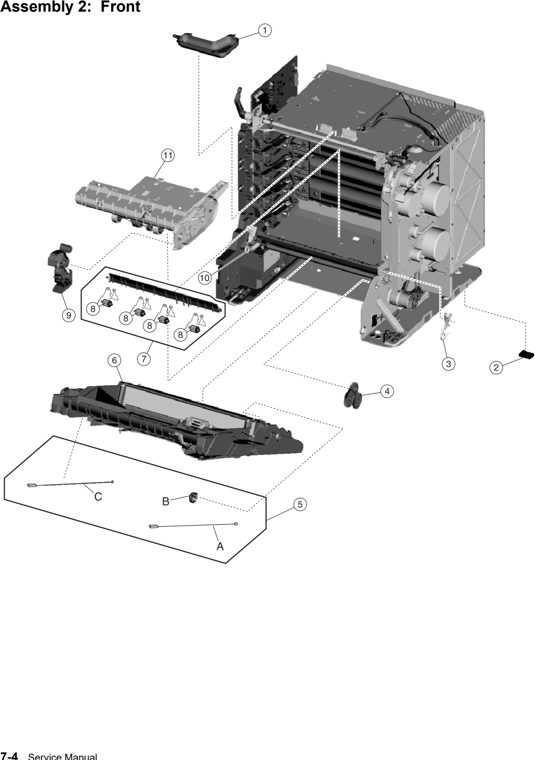

Assembly 2: Front

1 Fuser cable cover, included in parts packet (P/N 40X1430), Infoprint Color 1534

1 Fuser cable cover, included in parts packet (P/N 40X3598), Infoprint Color 1634

2 Printer pad, included in parts packet , screws (P/N 40X1431)

3 40X1446 Right bellcrank assembly

4 40X1432 Bump aligner gear kit, including:
Align idler gear (1)
First reduction gear (1)
Second reduction gear (1)
Grease packet (1)
Washers (3)

5

40X1420 Front Door Parts Packet 2X
Fully refurbished with 90-day warranty
40x1420



including
A Right cable assembly
B Front door cap
C Left cable assembly
5 40X3593 Front door parts packet 1634, including
A Right cable assembly
B Front door cap
C Left cable assembly

6
40X1419 Duplex Front Door Assembly (Duplex Network) 2X
New
40X1419 (New)
$168.72

Retired, no longer available: Contact for alternatives



40X1419 Duplex Front Door Assembly (Duplex Network) 2X
Fully refurbished with 90-day warranty
40X1419
$144.71



1534dn
6

40X1418 Front Door Assembly (Network) 2X
Fully refurbished with 90-day warranty
40X1418



1534n
6
40X3592 Duplex Front Door Assembly 3X
New
40X3592 (New)
$115.85



40X3592 Duplex Front Door Assembly 3X
Fully refurbished with 90-day warranty
40X3592
$96.49



1634dn
6

40X3590 Front Door Assembly (Network) 3X
Fully refurbished with 90-day warranty
40X3590
$25.00



1634n
7
40X3615 Deflector Assembly 3X
New
40X3615 (New)
$17.38



8 40X3614 Bump aligner roller and spring

9
40X1435 Mpf Swing Arm Assembly 2X
New
40X1435 (New)
$12.22



40X1435 Mpf Swing Arm Assembly 2X
Fully refurbished with 90-day warranty
40X1435
$6.47



10 40X1447 Left bellcrank assembly

11

40X1405 Paper Pick Mechanism Assembly 2X
Fully refurbished with 90-day warranty
40X1405
$25.00



11

12 40X3614 Bump aligner roller and spring

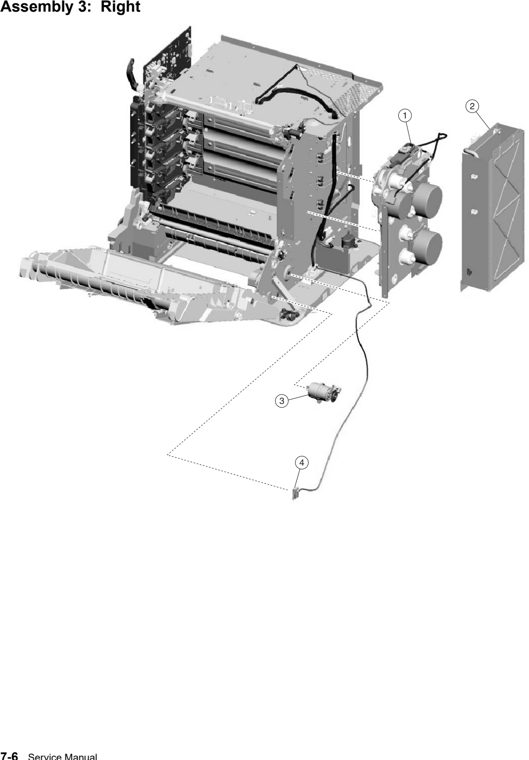

Assembly 3: Right

3-1

40X1409 Ep Drive Assembly 2X
Fully refurbished with 90-day warranty
40X1409



1
40X3578 EP Drive Assembly 3X
New
40X3578 (New)
$71.21



40X3578 Ep Drive Assembly 3X
Fully refurbished with 90-day warranty
40X3578



2

40X3574 Low Voltage Power Supply 115/230 V
Fully refurbished with 90-day warranty
40X3574
$64.71



3
40X1433 Bump Aligner Motor
New
40X1433 (New)
$18.29



4

40X1445 Ground contact plate
New
40X1445 (New)
$7.73

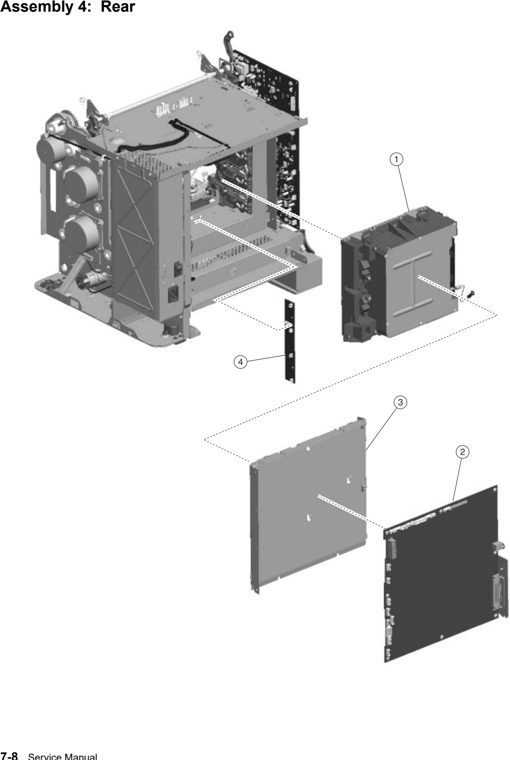

Assembly 4: Rear

1
40X1417 Printhead Assembly 2X
New
40X1417 40X2167 (New)

Retired, no longer available: Contact for alternatives



40X1417 Printhead Assembly 2X
Fully refurbished with 90-day warranty
40X1417 40X2167
$89.71



1534
1
40X3589 Printhead Assembly 3X
New
40X3589 40X2168 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED



40X3589 Printhead Assembly 3X
Fully refurbished with 90-day warranty
40X3589 40X2168 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED



1634
2
40X3576 System Card (Network) 1634
New
40X3576 40X3617 I Matched Set (New)
$279.00



1634 network
2
40X4218 System Card (Network) 1534n C524N C524Dn
New
40X4218 I (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$526.45



40X4218 System Card (Network), 1534n C524N C524Dn
New
40X4218 Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED

Retired, no longer available: Contact for alternatives



1534 network
3
40X3577 I System Card (Network, Duplex) 1634
New
40X3577 40X3618 I (matched set) (New)



1634 duplex, network
3
40X3597 System Card Support Shield 3X
New
40X3597 (New)
$17.21



1634
3
40X1429 System Card Support Shield 2X
New
40X1429 (New)
$18.68



1534
4
40X1410 Smart Chip Card C52X
New
40X1410 (New)
$22.50

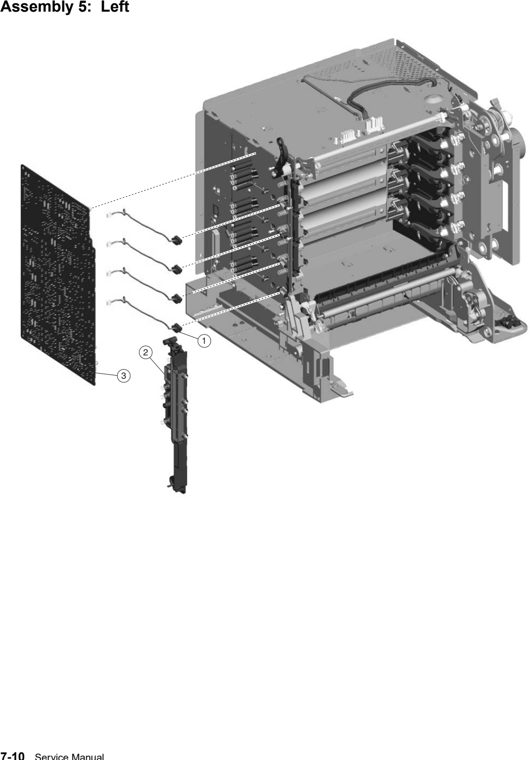

Assembly 5: Left

2

3

40X3579 High Voltage Power Supply 3X HVPS
Fully refurbished with 90-day warranty
40X3579 36B1226
$45.21

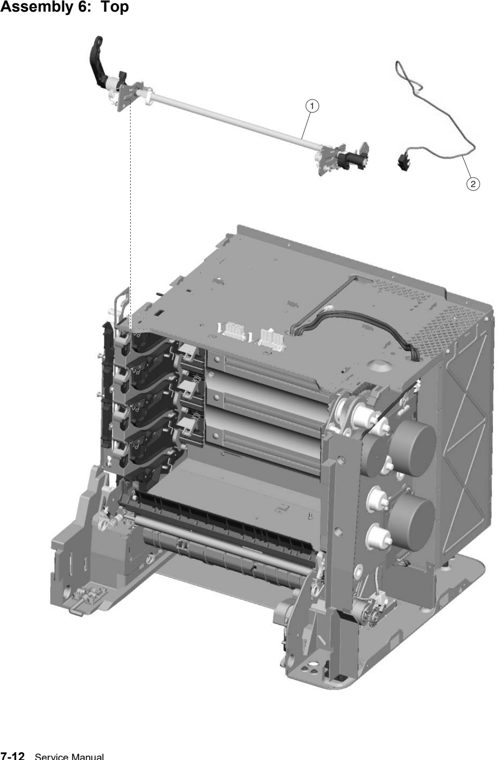

Assembly 6: Top

6-1
40X3613 Top Cover Camshaft Assembly
New
40X3613 40X3619 (New)
$19.21

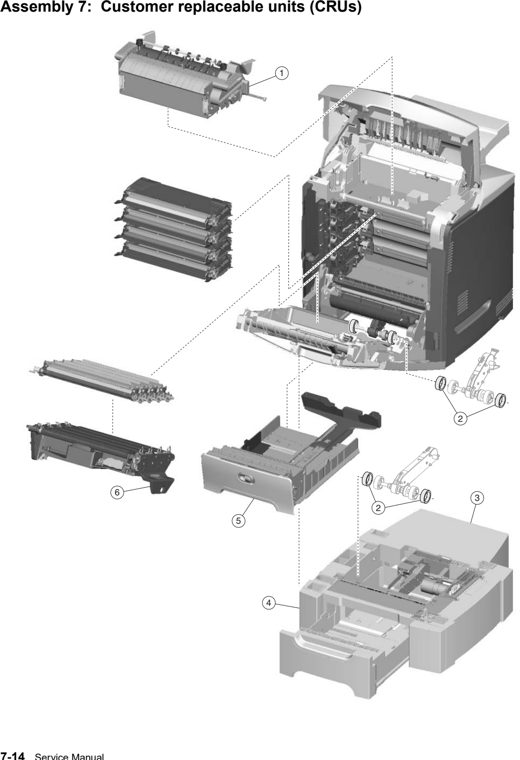

Assembly 7: CRUs

7-1
40X3569 Fuser Assembly
Fully refurbished with 90-day warranty
40X3569



40X3569 Fuser Assembly
New
40X3569 I (New)

Retired, no longer available: Contact for alternatives



2
40X3607 Pick Arm Roll
New
40X3607 (New)
$12.68



3

40X1439 Option Tray Assembly 500-Sheet Option (Includes Tray) 2X
Fully refurbished with 90-day warranty
40X1439
$374.71





4
40X1423 Tray Assembly 500-Sheet 2x
New
40X1423 (New)
$55.45



40X1423 Tray Assembly 500-Sheet 2x
Fully refurbished with 90-day warranty
40X1423
$45.21



4
40X3595 Tray Assembly 550-Sheet 3X
New
40X3595 (New)
$52.80



5
40X1404 Mpf Paper Tray Assembly 250-Sheet 2x
New
40X1404 (New)

Retired, no longer available: Contact for alternatives



40X1404 Mpf Paper Tray Assembly 250-Sheet 2x
Fully refurbished with 90-day warranty
40X1404
$68.34





5

40X3596 Paper Tray Assembly Single Feeder (Network) 3X
Fully refurbished with 90-day warranty
40X3596 40x2073
$42.19



6
40X3572 Transfer Belt Maintenance Kit ITU 3X
New
40X3572 (New)
$349.00

Retired, no longer available: Contact for alternatives



40X1401 Transfer Belt ITU 2x
New
40X1401 (New)
$189.71



40X1401 Transfer Belt ITU 2x
Fully refurbished with 90-day warranty
40X1401
$190.00



NS 40X0297 Power cord USA

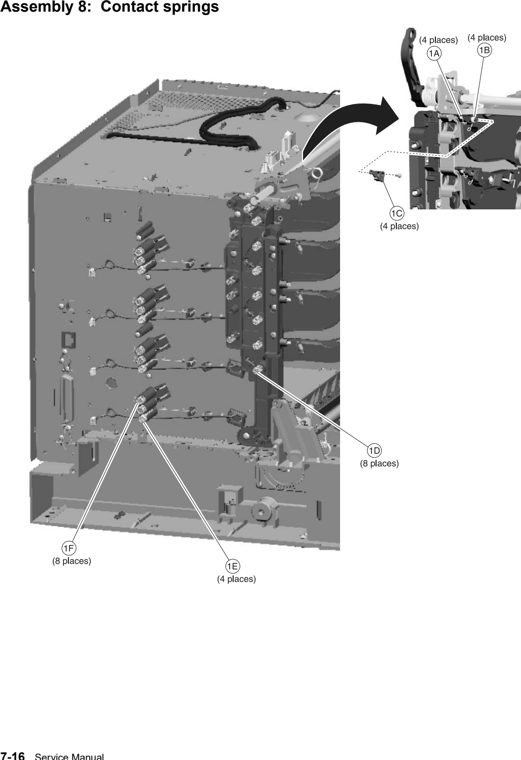

Assembly 8: Contact springs

8-1 40X1434 Contact springs kit, including:
A Torsion PCD contact spring (4)
B Torsion CR contact spring (4)
C Contact spring cap (4)
D Charge roll contact spring (8)
E HVPS TAR contact spring (4)
F HVPS doctor/developer contact spring (8)

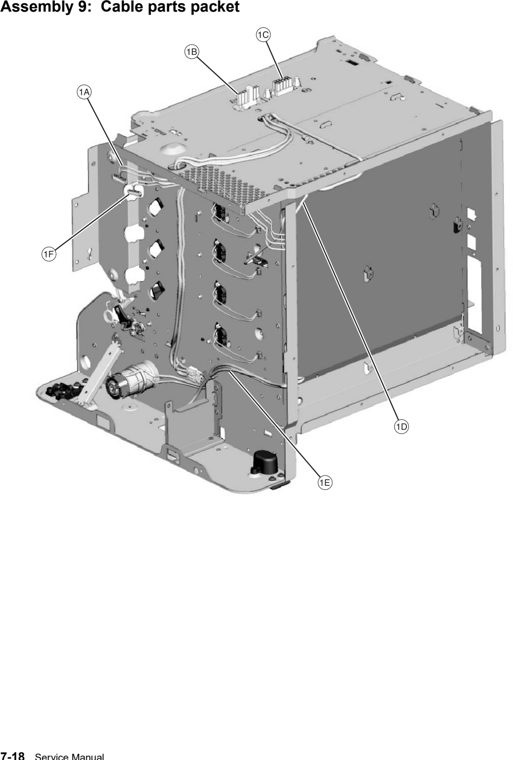

Assembly 9: Cable parts packet

9-1 40X1430 Cables, Infoprint Color 1534, including
- A-Cartridge motor cable
- B-Fuser AC cable
- C-Fuser DC cable
- D-Smart chip cable
- E-Option cable
- Fuser cable cover
- Duplex cable

2 40X3598 Cables, Infoprint Color 1634 , including
- A-Cartridge motor cable
- B-Fuser AC cable
- C-Fuser DC cable
- E-Option cable
- F-Transport motor cable
- Fuser cable cover
- Duplex cable
