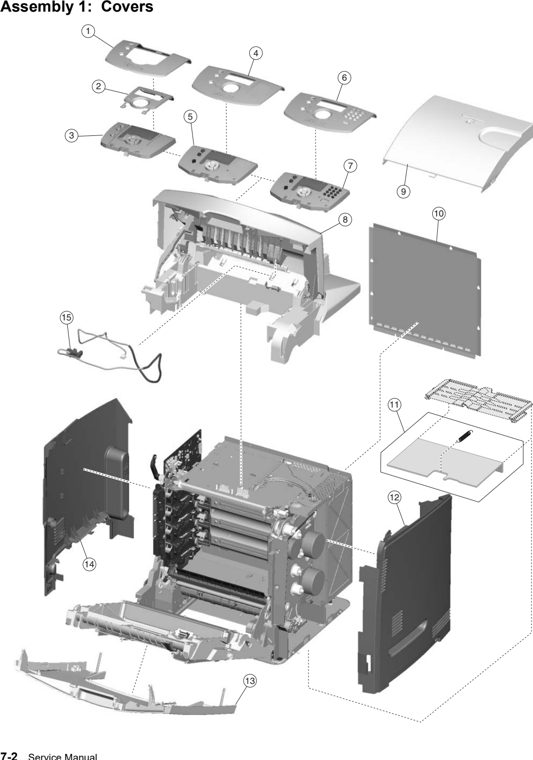

Lexmark C530 Parts







4 40X3608 Bezel, C530dn

5
40X3582 Operator Panel Assembly
Fully refurbished with 90-day warranty
40X3582 Repair - send yours in and we'll repair it
$82.71





C530dn/C532n/C532dn
8

8
40X3605 Duplex Top Access Assembly 3X
New
40X3605 (New)
$162.67



C530dn/C532dn/C534dn
9

10

11

12

13

C530dn/C532dn/C534dn
14

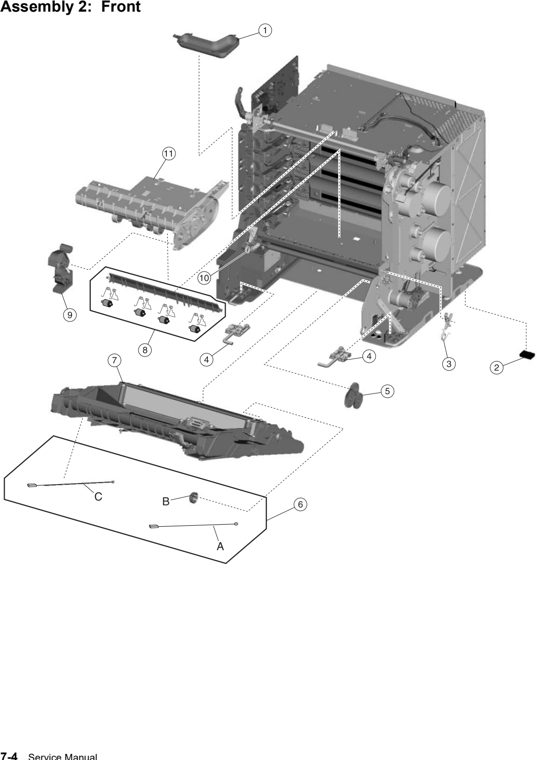

15 40X3601 Bin full sensor with cable, C53x
2

1 Fuser cable cover, included in parts packet (P/N 40X3598), C53x

2 Printer pad, included in parts packet, screws (P/N 40X1431)

3 40X1446 Right bellcrank assembly

4 40X1432 Bump aligner gear kit, including:
Align idler gear (1)
First reduction gear (1)
Second reduction gear (1)
Grease packet (1)
Washers (3)

5 40X3593 Front door parts packet, C53x, including
A Right cable assembly (1)
B Front door cap (1)
C Left cable assembly (1)

6
40X3592 Duplex Front Door Assembly 3X
New
40X3592 (New)
$115.85



C530dn/C532dn/C534dn
7
40X3615 Deflector Assembly 3X
New
40X3615 (New)
$17.38



9 40X1447 Left bellcrank assembly

10

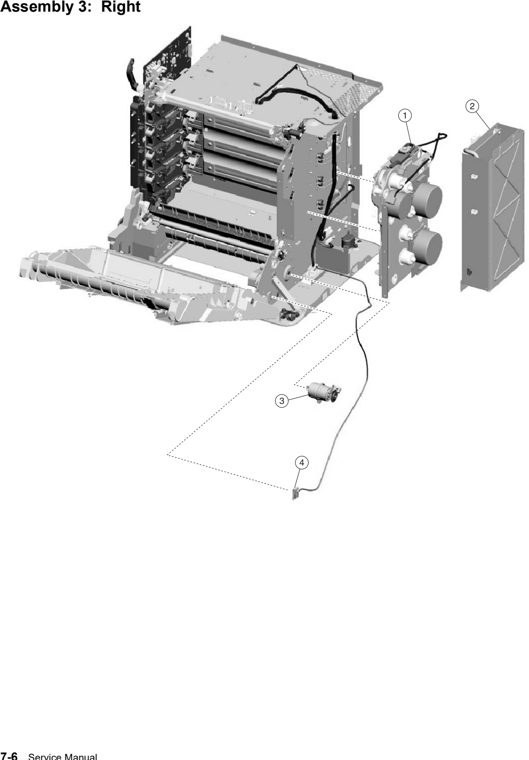

C53x
3

1
40X3578 EP Drive Assembly 3X
New
40X3578 (New)
$71.21



C53x
2

3
40X1433 Bump Aligner Motor
New
40X1433 (New)
$18.30



4
4

1
40X2168 Printhead Assembly
New
40X2168 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$359.17



C53x
2

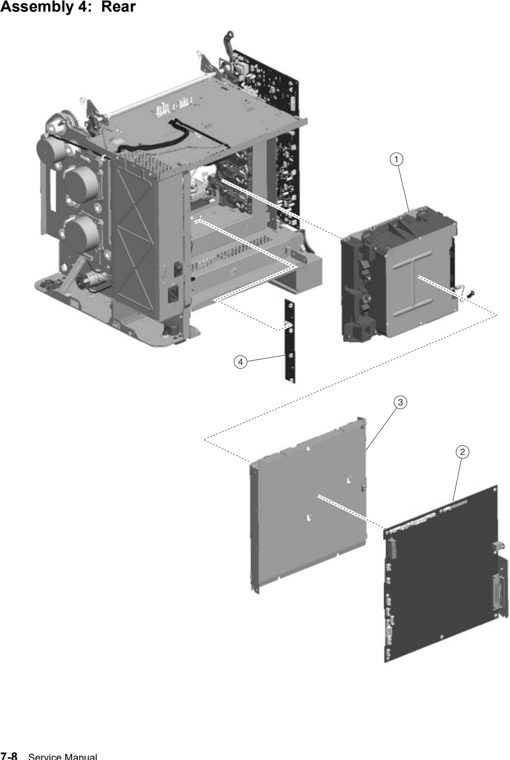

40X3616 System Network Card, C530dn, C532n, C532dn
New
40X3616 40X3575 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED

Retired, no longer available: Contact for alternatives



C530dn/C532n/C532dn
3
40X3597 System Card Support Shield 3X
New
40X3597 (New)
$17.21



53x

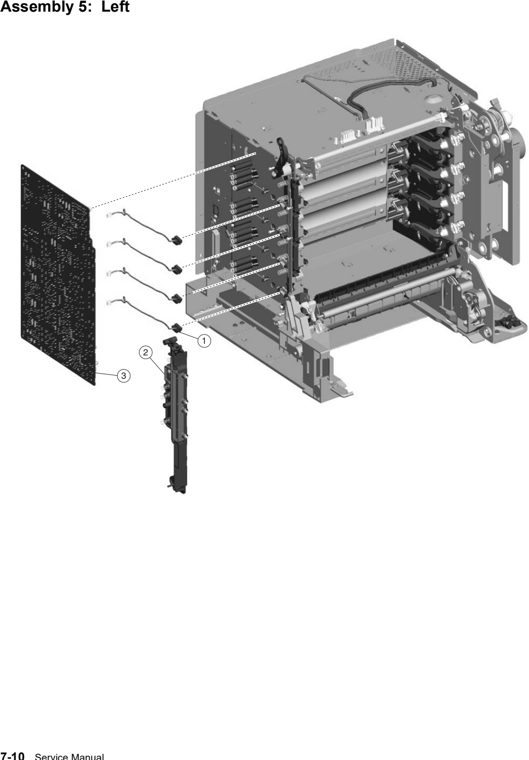

5-1
40X1416 Toner Level Sensor
Fully refurbished with 90-day warranty
40X1416
$13.78



2

3

C53x

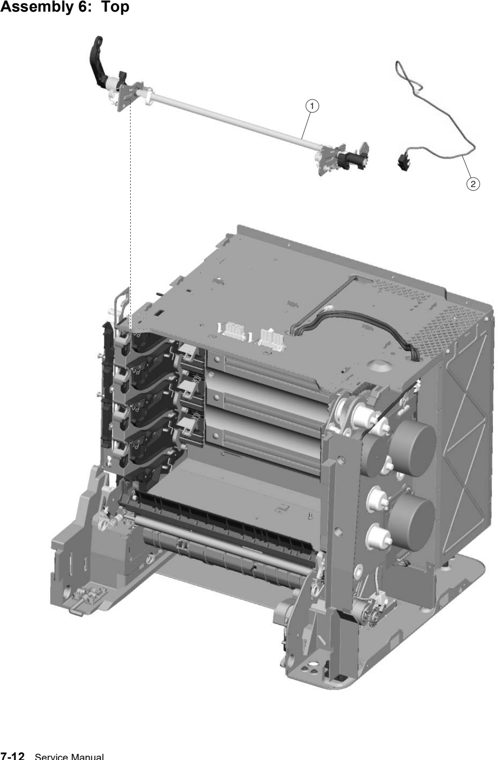

6-1
40X3613 Top Cover Camshaft Assembly
New
40X3613 40X3619 (New)
$19.21



2 40X1437 Top access door 24 V interlock switch
7

1

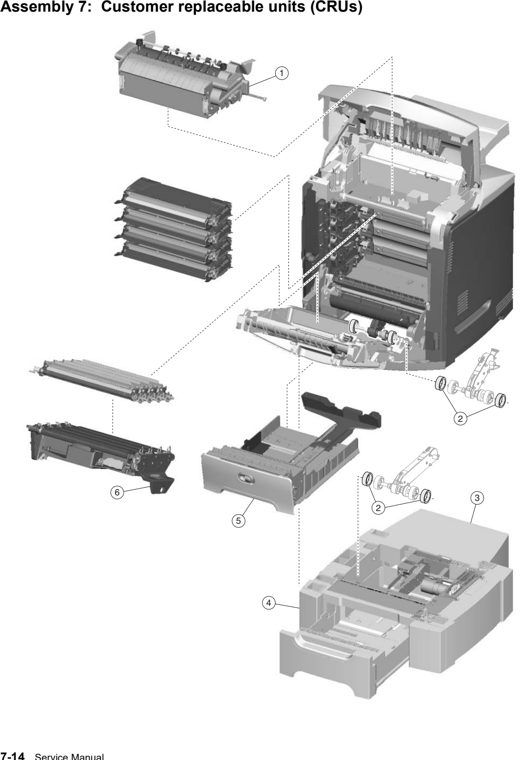

40X3569 C52x C53x Fuser Assembly
New
40X3569 L (New)

Retired, no longer available: Contact for alternatives



40X3569 Fuser Assembly
Fully refurbished with 90-day warranty
40X3569



C53x (also can be used in C52x)
2
40X3607 Pick Arm Roll
New
40X3607 (New)
$12.69



3

C532n/C532dn/ C534n/C534dn
4
40X3595 Tray Assembly 550-Sheet 3X
New
40X3595 (New)
$52.80



C532n/C532dn/C534n/C534dn

5

C530dn/C532dn/C534n/C534dn
5

C532n
6
40X3572 Transfer Belt Maintenance Kit ITU 3X
New
40X3572 (New)
$349.00

Retired, no longer available: Contact for alternatives



C53x

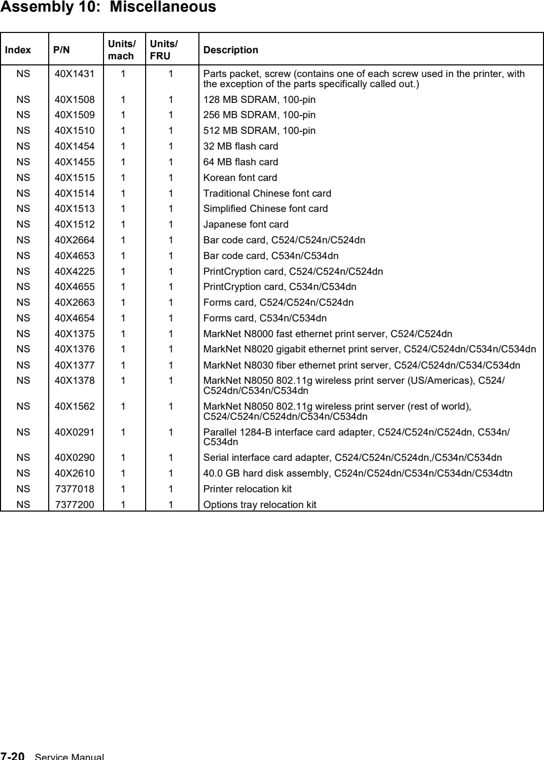

NS 40X0297 Power cord USA

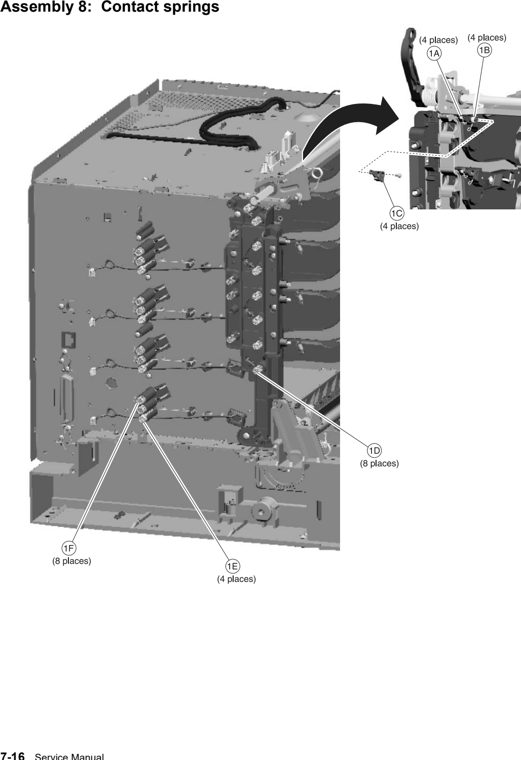

8-1 40X1434 Contact springs kit, including:
A Torsion PCD contact spring (4)
B Torsion CR contact spring (4)
C Contact spring cap (4)
D Charge roll contact spring (8)
E HVPS TAR contact spring (4)
F HVPS doctor/developer contact spring (8)
9

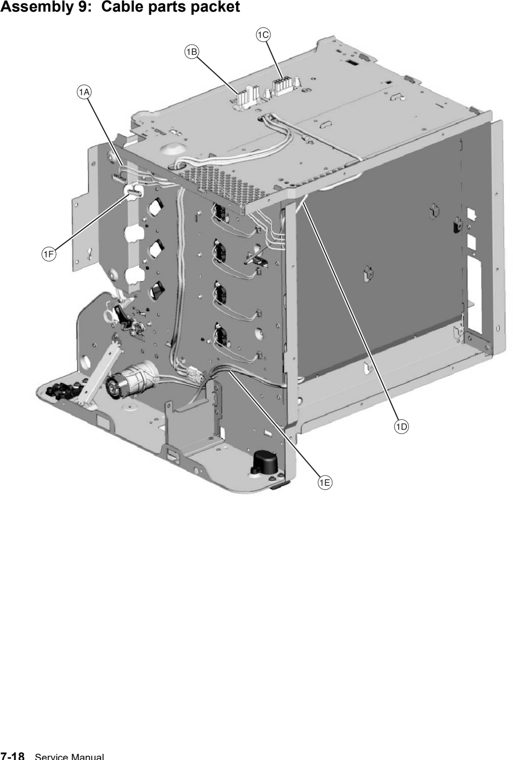

2 40X3598 Cables, C53x, including
A Cartridge motor cable (1)
B Fuser AC cable (1)
C Fuser DC cable (1)
E Option cable (1)
F Transport motor cable (1)
Fuser cable cover (1) (see Front on page 7-4 for part identification and location) Duplex cable (1)
