Lexmark C524 Parts







Please call for parts assistance

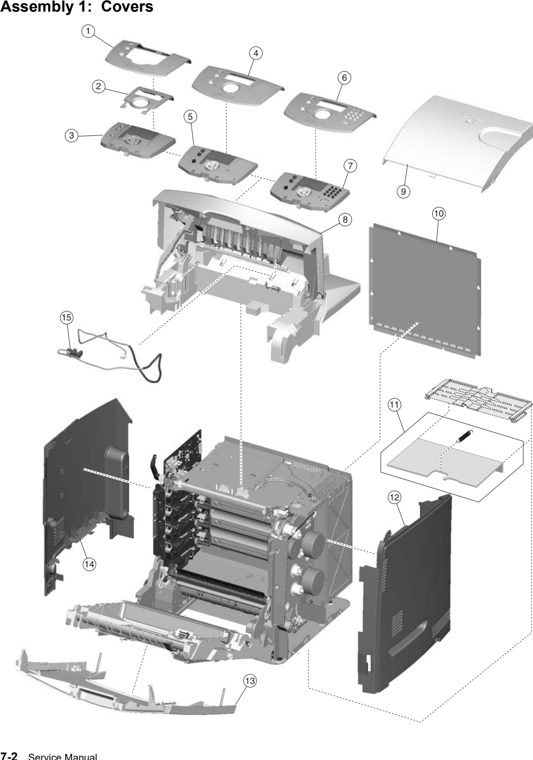

1-1 40X1415 Outer bezel, C52x

2 40X1448 Inner bezel, C524/C524n/C524dn

3
40X1414 Operator Panel Assembly
New
40X1414 I (New)
$105.64

Retired, no longer available: Contact for alternatives



C52x
8

C520n/C522n/C524n/C524dn
8

9

C52x
10

12

13
C524dn only
13

C520n/C522n/C524/C524n
14

15 40X1440 Bin full sensor with cable, C520n/C522n/C524n/C524dn

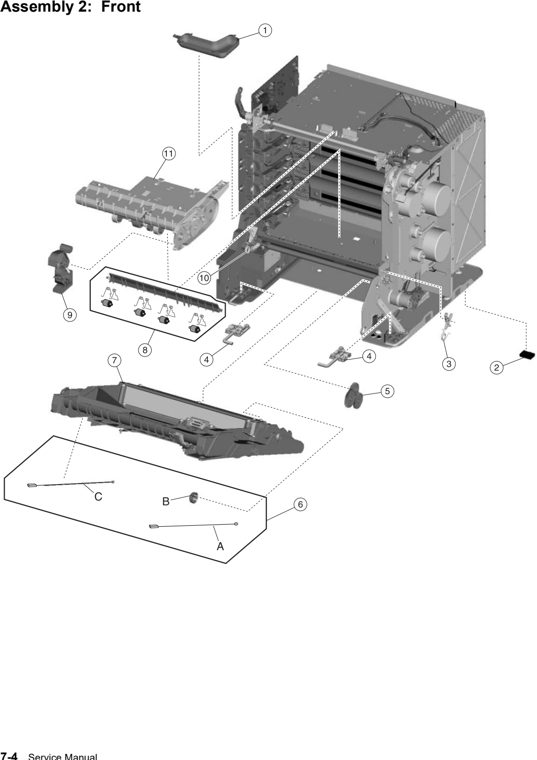

2-1 Fuser cable cover, included in parts packet (P/N 40X1430), C52x

2 Printer pad, included in parts packet, screws (P/N 40X1431)

3 40X1446 Right bellcrank assembly

4 40X1432 Bump aligner gear kit, including:
Align idler gear (1)
First reduction gear (1)
Second reduction gear (1)
Grease packet (1)
Washers (3)

5 40X1420 Front door parts packet, C52x, including
A Right cable assembly (1)
B Front door cap (1)
C Left cable assembly (1)

6
40X1419 Duplex Front Door Assembly (Duplex Network) 2X
New
40X1419 (New)
$168.72

Retired, no longer available: Contact for alternatives



C524dn
6

C520n/C522n/C524n
8
40X1435 Mpf Swing Arm Assembly 2X
New
40X1435 (New)
$12.22



C52x
9 40X1447 Left bellcrank assembly

10

C52x

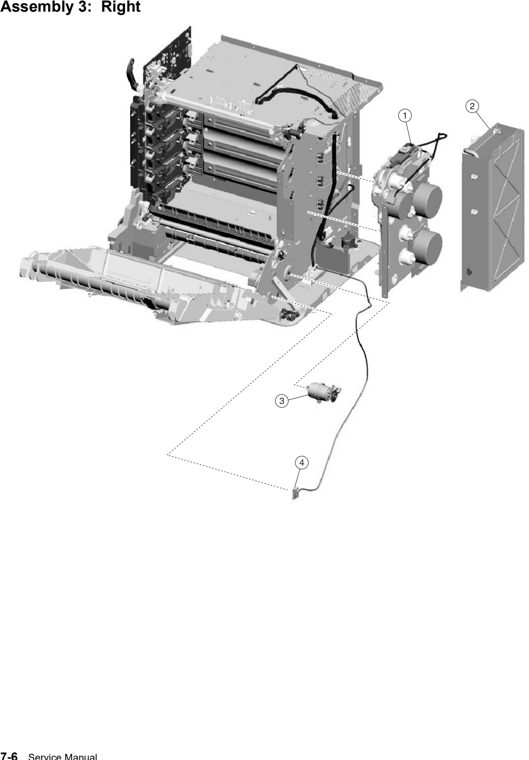

3-1

C52x
2

3
40X1433 Bump Aligner Motor
New
40X1433 (New)
$18.29



4

NS
40X1445 Ground contact plate
New
40X1445 (New)
$7.73



C52x

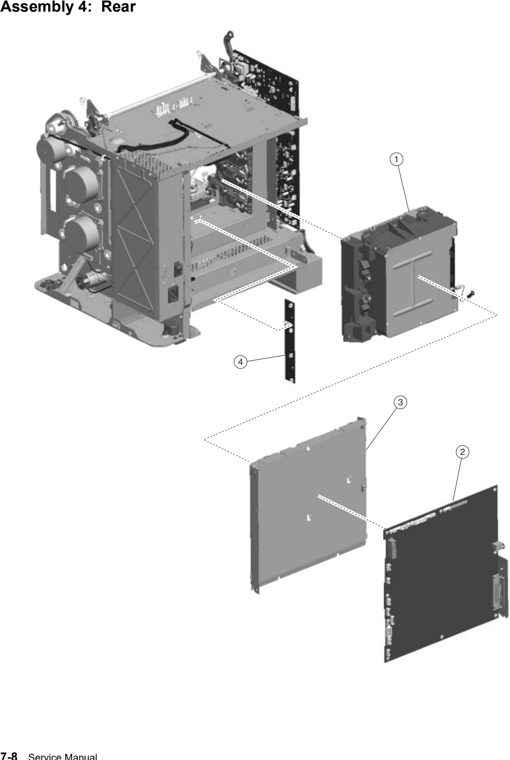

4-1
40X2167 Printhead Assembly, C52x
New
40X2167 (New)

Retired, no longer available: Contact for alternatives



C52x
2
40X4218 System Card (Network), 1534n C524N C524Dn
New
40X4218 Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED

Retired, no longer available: Contact for alternatives



C524n/C524dn
2
40X4217 System card, C524
New
40X4217 (New)
$429.13



C524
3 40X1429 System card support shield, C52x

4
40X1410 Smart Chip Card C52X
New
40X1410 (New)
$22.50



C52x only

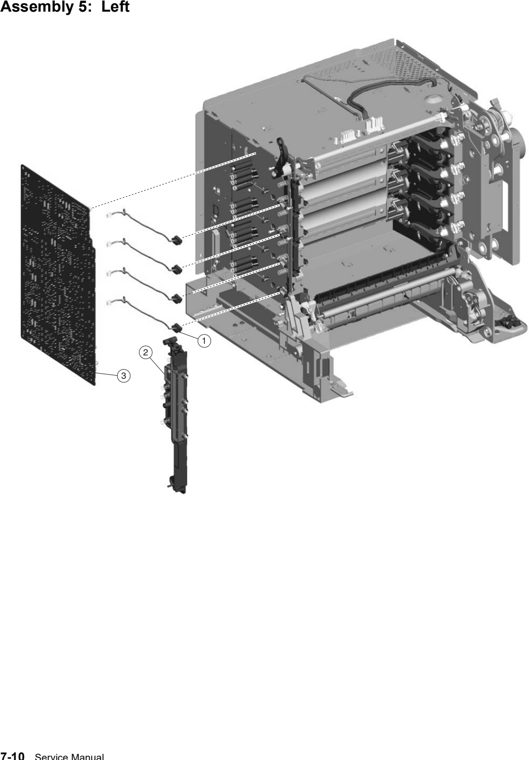

5-1
40X1416 Toner Level Sensor
Fully refurbished with 90-day warranty
40X1416
$13.77



2

2
40X1411 High Voltage Power Supply 2X
New
40X1411 (New)
$61.46



C52x

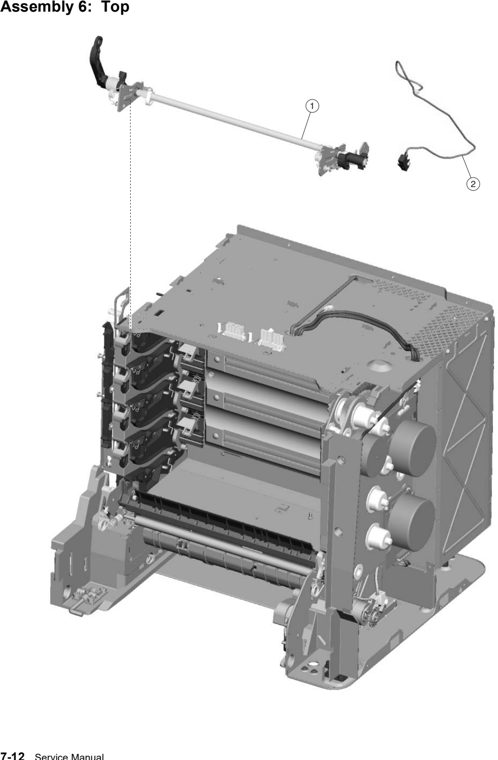

6-1
40X3613 Top Cover Camshaft Assembly
New
40X3613 40X3619 (New)
$19.21



2 40X1437 Top access door 24 V interlock switch

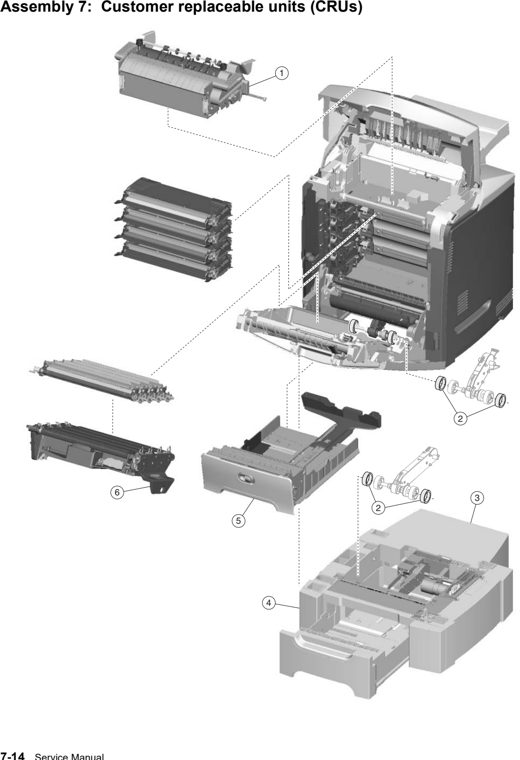

7-1
40X1400 Fuser Unit C522 C524 C530 C532 C534
New
40X1400 40X3569 (New)

Retired, no longer available: Contact for alternatives



C52x
1
40X3569 C52x C53x Fuser Assembly
New
40X3569 L (New)

Retired, no longer available: Contact for alternatives



40X3569 Fuser Assembly
Fully refurbished with 90-day warranty
40X3569



C53x (also can be used in C52x)
2
40X3607 Pick Arm Roll
New
40X3607 (New)
$12.68



3

C522n/C524
4
40X1423 Tray Assembly 500-Sheet 2x
New
40X1423 (New)
$55.45



C522n/C524/C524n/C524dn
5
40X1404 Mpf Paper Tray Assembly 250-Sheet 2x
New
40X1404 (New)

Retired, no longer available: Contact for alternatives



C524/C524n/C524dn
6
40X1401 Transfer Belt ITU 2x
New
40X1401 (New)
$189.71



C52x
NS 40X0297 Power cord USA

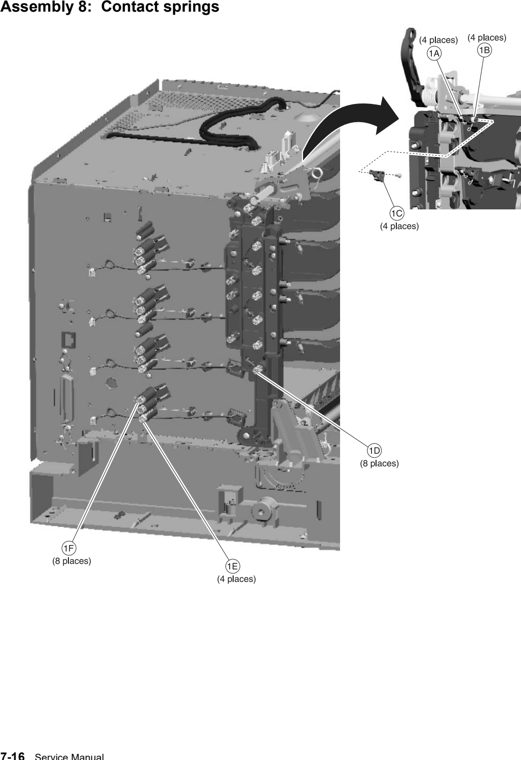

8-1 40X1434 Contact springs kit, including:
A Torsion PCD contact spring (4)
B Torsion CR contact spring (4)
C Contact spring cap (4)
D Charge roll contact spring (8)
E HVPS TAR contact spring (4)
F HVPS doctor/developer contact spring (8)

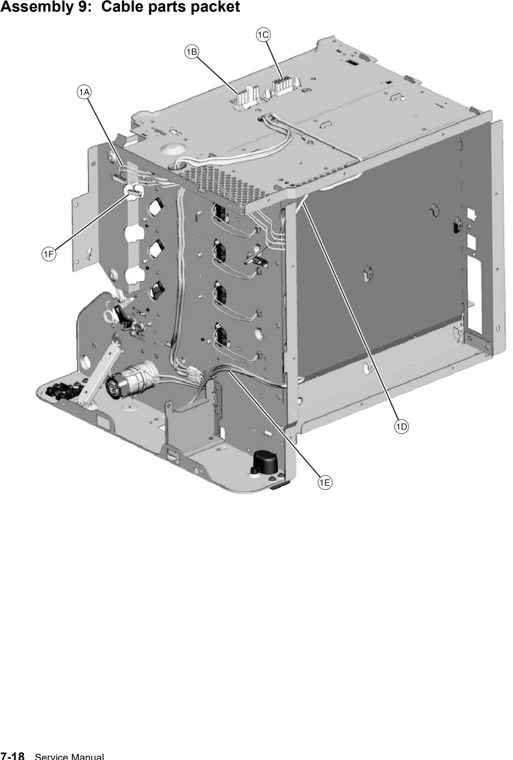

9-1 40X1430 Cables, C52x, including
A Cartridge motor cable (1)
B Fuser AC cable (1)
C Fuser DC cable (1)
D Smart chip cable (1)
E Option cable (1)
Fuser cable cover (1)
Duplex cable (1)
