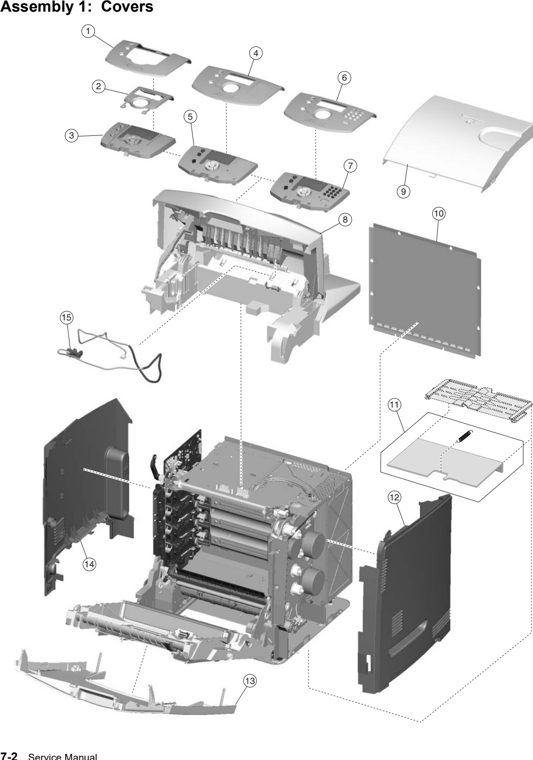

Assembly 1: Covers 1 40X1415 Outer bezel, C52x 2 40X1448 Inner bezel, C524/C524n/C524dn 2 40X1449 Inner bezel, C522n 2 40X1450 Inner bezel, C520n 3 40X1414 Operator panel assembly, C52x Lexmark 40X1414 Operator Panel Assembly New 40X1414 (New) $114.00 Retired, no longer available: Contact for alternatives 4 40X3608 Bezel, C530dn 4 40X3585 Bezel, C532n 4 40X3586 Bezel, C532dn 5 40X3582 Operator panel assembly, C530dn/C532n/C532dn Lexmark 40X3582 Operator Panel Assembly C530dn, C532n, C532dn New 40X3582 (New) Contact for Details Lexmark 40X3582 Operator Panel Assembly Fully refurbished with 90-day warranty 40X3582 Repair - send yours in and we'll repair it Contact for Details 6 40X3587 Bezel, C534n 6 40X3588 Bezel, C534dn Lexmark 40X3588 Bezel (Duplex, Network) New 40X3588 (New) $16.65 7 40X3583 Operator panel assembly, C534n/C534dn Lexmark 40X3583 Operator Panel Assembly C534 New 40X3583 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $85.75 8 40X1451 Top access cover assembly (network), C520n/C522n/C524n/C524dn Lexmark 40X1451 Top Access Cover Assembly (Network) 2X New 40X1451 (New) Contact for Details 8 40X1412 Top access cover assembly (non-network), C524 8 40X3604 Top access cover assembly (network), C532n/C534n 8 40X3605 Duplex top access assembly (network), C530dn/C532dn/C534dn Lexmark 40X3605 Duplex Top Access Assembly 3X New 40X3605 (New) $162.67 9 40X1422 Exit tray cover, C52x Lexmark 40X1422 Exit Tray Cover 2X New 40X1422 (New) Contact for Details 9 40X3594 Exit tray cover, C53x 10 40X1427 Rear cover Lexmark 40X1427 Rear cover New 40X1427 (New) Contact for Details 11 40X3612 Paper tray dust cover with dust cover spring, C53x 12 40X1425 Right cover Lexmark 40X1425 Right cover New 40X1425 (New) Contact for Details Lexmark 40X1425 Right cover Fully refurbished with 90-day warranty 40X1425 Contact for Details 13 40X1443 Front access door cover assembly (duplex), C524dn only 13 40X1413 Front access door cover assembly (non-duplex), C520n/C522n/C524/ Lexmark 40X1413 Front Access Door Cover Assembly (Non-Duplex) 2X New 40X1413 (New) Contact for Details 13 40X3602 Front access door cover assembly (duplex), C530dn/C532dn/C534dn Lexmark 40X3602 Front Access Door Cover Assembly (Duplex) 3X New 40X3602 (New) $44.66 13 40X3581 Front access door cover assembly (non-duplex), C532n/C534n Lexmark 40X3581 Front Access Door Cover Assembly (Non-Duplex Network) 3X New 40X3581 (New) $23.44 Lexmark 40X3581 Front Access Door Cover Assembly (Non-Duplex Network) 3X Fully refurbished with 90-day warranty 40X3581 $31.98 14 40X1426 Left cover Lexmark 40X1426 Left cover New 40X1426 (New) Contact for Details Lexmark 40X1426 Left cover Fully refurbished with 90-day warranty 40X1426 Contact for Details 15 40X1440 Bin full sensor with cable, C520n/C522n/C524n/C524dn 15 40X3601 Bin full sensor with cable, C53x Parts catalog 7-3

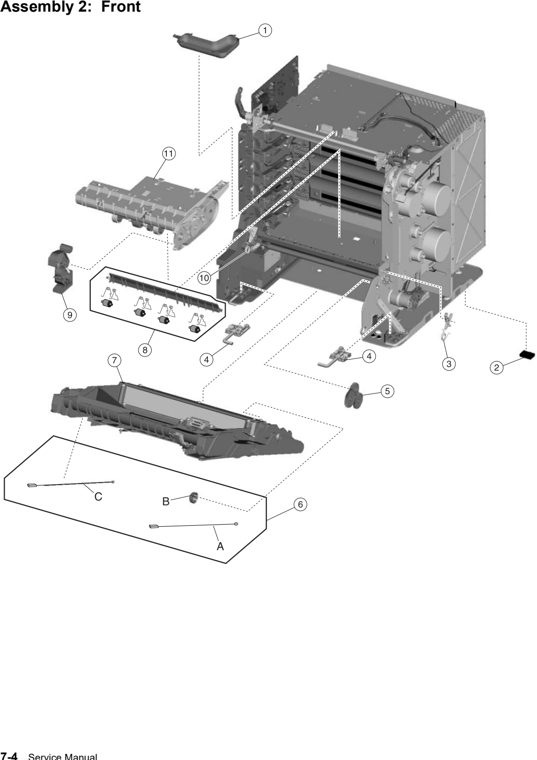

Assembly 2: Front 3 40X1446 Right bellcrank assembly 4 40X1875 Front door hinges Lexmark 40X1875 Front Door Hinges New 40X1875 (New) Contact for Details 5 40X1432 Bump aligner gear kit, including: • Align idler gear (1) • First reduction gear (1) • Second reduction gear (1) • Grease packet (1) • Washers (3) 6 40X1420 Front door parts packet, C52x, including • A—Right cable assembly (1) • B—Front door cap (1) • C—Left cable assembly (1) Lexmark 40X1420 Front Door Parts Packet 2X New 40x1420 (New) Contact for Details 6 40X3593 Front door parts packet, C53x, including • A—Right cable assembly (1) • B—Front door cap (1) • C—Left cable assembly (1) 7 40X1419 Duplex front door assembly, C524dn Lexmark 40X1419 Duplex Front Door Assembly (Duplex Network) 2X New 40X1419 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X1419 Duplex Front Door Assembly (Duplex Network) 2X Fully refurbished with 90-day warranty 40X1419 Contact for Details 7 40X1418 Front door assembly, C520n/C522n/C524n Lexmark 40X1418 Front Door Assembly (Network) 2X New 40X1418 (New) Contact for Details 7 40X3592 Duplex front door assembly, C530dn/C532dn/C534dn Lexmark 40X3592 Duplex Front Door Assembly 3X New 40X3592 (New) $115.85 Lexmark 40X3592 Duplex Front Door Assembly 3X Fully refurbished with 90-day warranty 40X3592 $96.49 7 40X3590 Front door assembly, C532n/C534n Lexmark 40X3590 Front Door Assembly (Network) 3X New 40X3590 (New) $24.71 Lexmark 40X3590 Front Door Assembly (Network) 3X Fully refurbished with 90-day warranty 40X3590 $25.00 8 40X1872 Deflector assembly, C53x Lexmark 40X1872 Deflector Assembly New 40X1872 (New) $18.02 Lexmark 40X1872 Deflector Assembly Fully refurbished with 90-day warranty 40X1872 $11.69 8 40X1873 Deflector assembly with single feeder tray, C532n 9 40X1435 MPF swing arm assembly, C52x Lexmark 40X1435 Mpf Swing Arm Assembly 2X New 40X1435 (New) $12.23 10 40X1447 Left bellcrank assembly 11 40X1405 Paper pick mechanism assembly, C52x Lexmark 40X1405 Paper Pick Mechanism Assembly 2X New 40X1405 (New) $24.71 11 40X3573 Paper pick mechanism assembly, C53x Parts catalog 7-5 Lexmark 40X3573 Paper Pick Mechanism Assembly 3X New 40X3573 (New) $78.50 Lexmark 40X3573 Paper Pick Mechanism Assembly 3X Fully refurbished with 90-day warranty 40X3573 Contact for Details

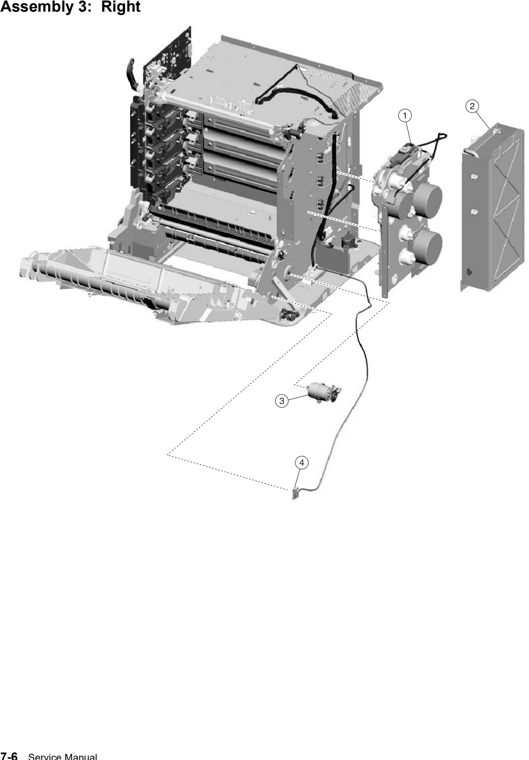

Assembly 3: Right 1 40X1409 EP drive assembly, C52x Lexmark 40X1409 Ep Drive Assembly 2X New 40X1409 (New) Contact for Details 1 40X3578 EP drive assembly, C53x Lexmark 40X3578 EP Drive Assembly 3X New 40X3578 (New) $71.21 Lexmark 40X3578 Ep Drive Assembly 3X Fully refurbished with 90-day warranty 40X3578 Contact for Details 2 40X3574 Low voltage power supply, 115/230 V, C53x Lexmark 40X3574 Low Voltage Power Supply 115/230 V New 40X3574 (New) $64.71 Lexmark 40X3574 Low Voltage Power Supply 115/230 V Fully refurbished with 90-day warranty 40X3574 Contact for Details 2 40X1406 Low voltage power supply, 115/230 V, C52x 3 40X1433 Bump aligner motor Lexmark 40X1433 Bump Aligner Motor New 40X1433 (New) $18.30 4 40X1436 Front door 5 V interlock switch Lexmark 40X1436 Front door 5 V interlock switch New 40X1436 (New) Contact for Details Lexmark 40X1436 Front door 5 V interlock switch Fully refurbished with 90-day warranty 40X1436 Contact for Details NS 40X1445 Ground contact plate, C52x only Parts catalog 7-7 Lexmark 40X1445 Ground contact plate New 40X1445 (New) $11.60 Lexmark 40X1445 Ground contact plate Fully refurbished with 90-day warranty 40X1445 Contact for Details

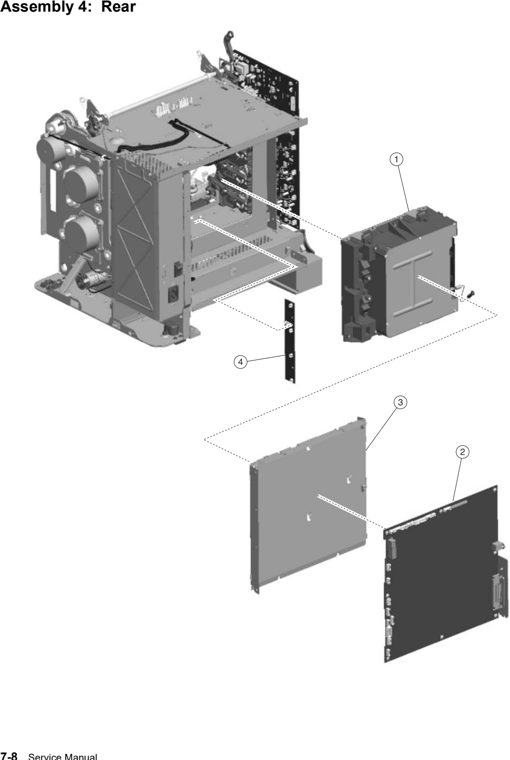

Assembly 4: Rear 1 40X2167 Printhead assembly, C52x Lexmark 40X2167 Printhead Assembly, C52x New 40X2167 (New) Retired, no longer available: Contact for alternatives Contact for Details 1 40X2168 Printhead assembly, C53x Lexmark 40X2168 Printhead Assembly New 40X2168 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X2168 Printhead Assembly Fully refurbished with 90-day warranty 40X2168 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 2 40X4218 System card (network), C524n/C524dn Lexmark 40X4218 System Card (Network) 1534n C524N C524Dn New 40X4218 I (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $526.46 2 40X4219 System card (network), C520n/C522n Lexmark 40X4219 System card (network), C520n/C522n New 40X4219 Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 2 40X4217 System card, C524 Lexmark 40X4217 System card, C524 New 40X4217 (New) $429.14 2 40X3616 System card (network), C530dn/C532n/C532dn Lexmark 40X3616 System Network Card, C530dn, C532n, C532dn New 40X3616 40X3575 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Retired, no longer available: Contact for alternatives Contact for Details 2 40X3617 System card (network), C534n Lexmark 40X3617 System card (network), C534n New 40X3617 Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $460.24 2 40X3618 System card (network), C534dn Lexmark 40X3618 System Card (Network) C534dn C534dtn New 40X3618 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $556.85 3 40X1429 System card support shield, C52x Lexmark 40X1429 System Card Support Shield 2X New 40X1429 (New) $18.69 3 40X3597 System card support shield, C53x Lexmark 40X3597 System Card Support Shield 3X New 40X3597 (New) $17.21 4 40X1410 Smart chip card, C52x only Parts catalog 7-9 Lexmark 40X1410 Smart Chip Card C52X New 40X1410 (New) $22.50

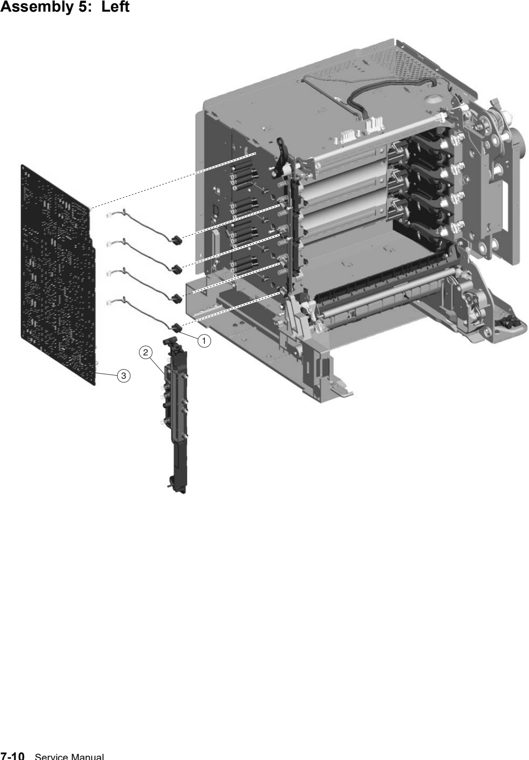

Assembly 5: Left 1 40X1416 Toner level sensor Lexmark 40X1416 Toner Level Sensor Fully refurbished with 90-day warranty 40X1416 $13.00 2 40X1428 Transfer contact assembly Lexmark 40X1428 Transfer Contact Assembly New 40X1428 (New) Contact for Details 3 40X1411 High voltage power supply, C52x Lexmark 40X1411 High Voltage Power Supply 2X New 40X1411 (New) $61.46 3 40X3579 High voltage power supply, C53x Parts catalog 7-11 Lexmark 40X3579 High Voltage Power Supply 3X HVPS Fully refurbished with 90-day warranty 40X3579 36B1226 $45.21

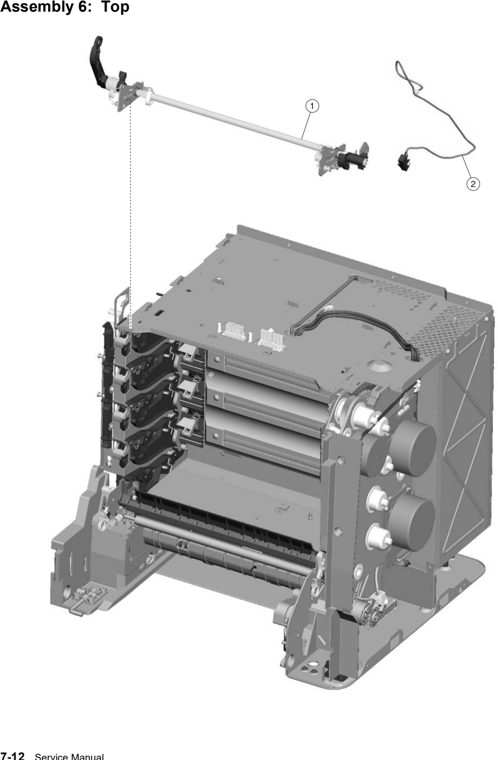

Assembly 6: Top 1 40X3619 Top cover camshaft assembly Lexmark 40X3619 Top cover camshaft assembly Fully refurbished with 90-day warranty 40X3619 $26.87 2 40X1437 Top access door 24 V interlock switch Parts catalog 7-13

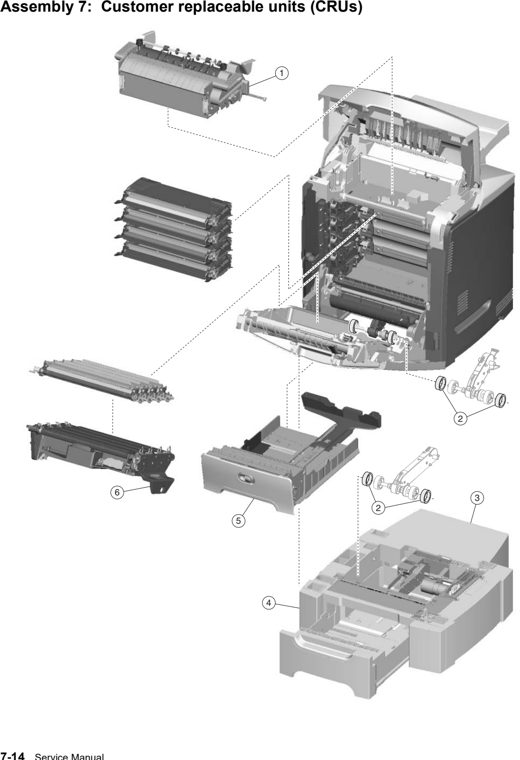

Assembly 7: CRUs 1 40X1400 Fuser assembly, 115 V, C52x Lexmark 40X1400 Fuser Unit New 40X1400 40X3569 (New) $299.00 1 40X1402 Fuser assembly, 230 V, C52x 1 40X1403 Fuser assembly, 100 V, C52x 1 40X3569 Fuser assembly, 115 V, C53x (also can be used in C52x) Lexmark 40X3569 Fuser Assembly New 40X3569 L (New) $299.00 Lexmark 40X3569 Fuser Assembly Fully refurbished with 90-day warranty 40X3569 Contact for Details 1 40X3570 Fuser assembly, 230 V, C53x (also can be used in C52x) 1 40X3571 Fuser assembly, 100 V, C53x (also can be used in C52x) 2 40X3607 Pick arm roll Lexmark 40X3607 Pick Arm Roll New 40X3607 (New) $12.69 3 40X1439 Option tray assembly, 500-sheet option (includes tray), C522n/C524/ Lexmark 40X1439 Option Tray Assembly 500-Sheet Option (Includes Tray) 2X New 40X1439 (New) Contact for Details 3 40X3600 Option tray assembly, 550-sheet option (includes tray), C532n/C532dn/ Lexmark 40X3600 Option Tray Assembly 550-Sheet Option (Includes Tray) New 40X3600 (New) $314.71 4 40X1423 Tray assembly, 500-sheet, C522n/C524/C524n/C524dn Lexmark 40X1423 Tray Assembly 500-Sheet 2x New 40X1423 (New) $55.46 4 40X3595 Tray assembly, 550-sheet, C532n/C532dn/C534n/C534dn Lexmark 40X3595 Tray Assembly 550-Sheet 3X New 40X3595 (New) $52.80 Lexmark 40X3595 Tray Assembly 550-Sheet 3X Fully refurbished with 90-day warranty 40X3595 $43.05 5 40X1404 MPF paper tray assembly, 250-sheet, C524/C524n/C524dn Lexmark 40X1404 Mpf Paper Tray Assembly 250-Sheet 2x New 40X1404 (New) Retired, no longer available: Contact for alternatives Contact for Details 5 40X1424 Paper tray assembly, single feeder, C520n/C522n Lexmark 40X1424 250-Sheet Paper Tray With Single Sheet Feeder Assembly, C520, C522 New 40X1424 (New) Contact for Details 5 40X3599 MPF paper tray assembly, 250-sheet, C530dn/C532dn/C534n/C534dn Lexmark 40X3599 MPF Paper Tray Assembly 250-Sheet (N and DN versions) New 40X3599 (New) $69.20 Lexmark 40X3599 MPF Paper Tray Assembly 250-Sheet (N and DN versions) Fully refurbished with 90-day warranty 40X3599 $56.44 5 40X2073 Paper tray assembly, single feeder tray, C532n 6 40X1401 Transfer belt assembly, C52x Lexmark 40X1401 Transfer Belt ITU 2x New 40X1401 (New) $189.72 6 40X3572 Transfer belt assembly, C53x Lexmark 40X3572 Transfer Belt Maintenance Kit ITU 3X New 40X3572 120000 Page Yield (New) $288.00 Retired, no longer available: Contact for alternatives NS 40X0297 Power cord—USA, Canada, Bolivia, Peru Lexmark 40X0297 Power cord; 1.8 m, 6 ft. Straight, US, Canada, Latin America, AP Fully refurbished with 90-day warranty 40X0297 Contact for Details Lexmark 40X0297 Power cord; 1.8 m, 6 ft. Straight, US, Canada, Latin America, AP New 40X0297 (New) Contact for Details NS 40X0288 Power cord—Argentina Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina New 40x0288 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X0296 Power cord—Australia, New Zealand NS 40X0278 Power cord—Austria, Belgium, Catalan, Czechoslovakia, Finland, France, NS 40X0286 Power cord—Hong Kong, Ireland, United Kingdom NS 40X3611 Power cord—Brazil NS 40X0287 Power cord—Chile, Uruguay NS 40X0282 Power cord—China NS 40X0279 Power cord—Denmark, Finland, Norway, Sweden NS 40X0275 Power cord—Israel Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel New 40x0275 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X3609 Power cord—Japan Lexmark 40X3609 Power cord; 2.5m, 8ft. Straight, Japan New 40X3609 (New) Contact for Details NS 40X0280 Power cord—Korea NS 40X0276 Power cord—South Africa NS 40X0274 Power cord—Switzerland NS 40X3610 Power cord—Taiwan Parts catalog 7-15

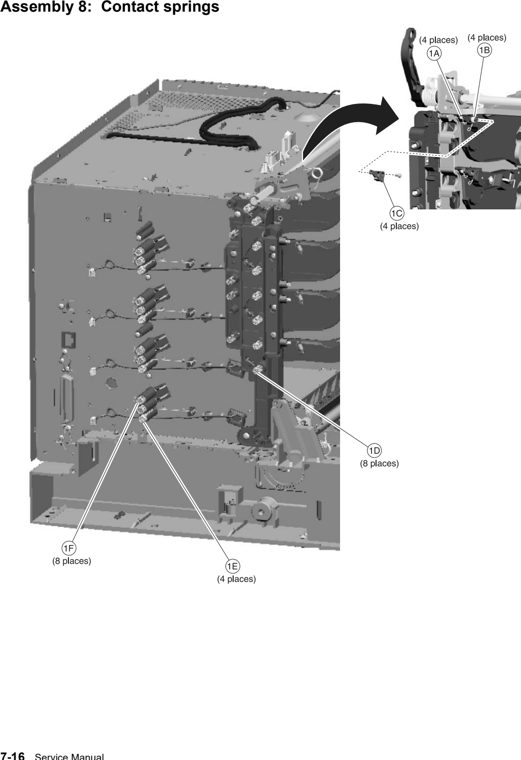

Assembly 8: Contact springs 1 40X1434 Contact springs kit, including: • A—Torsion PCD contact spring (4) • B—Torsion CR contact spring (4) • C—Contact spring cap (4) • D—Charge roll contact spring (8) • E—HVPS TAR contact spring (4) • F—HVPS doctor/developer contact spring (8) Parts catalog 7-17

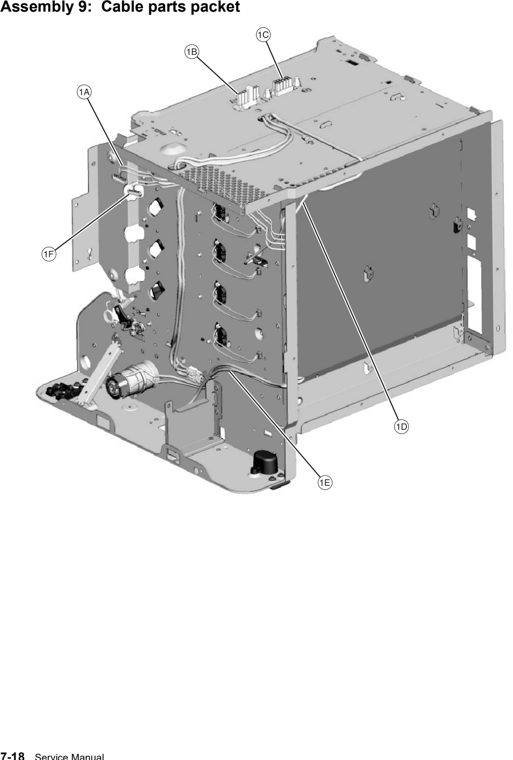

Assembly 9: Cable parts packet 1 40X1430 Cables, C52x, including • A—Cartridge motor cable (1) • B—Fuser AC cable (1) • C—Fuser DC cable (1) • D—Smart chip cable (1) • E—Option cable (1) • Fuser cable cover (1) (see“Front” on page7-4 for part identification and location) • Duplex cable (1) 2 40X3598 Cables, C53x, including • A—Cartridge motor cable (1) • B—Fuser AC cable (1) • C—Fuser DC cable (1) • E—Option cable (1) • F—Transport motor cable (1) • Fuser cable cover (1) (see“Front” on page7-4 for part identification and location) • Duplex cable (1) Parts catalog 7-19

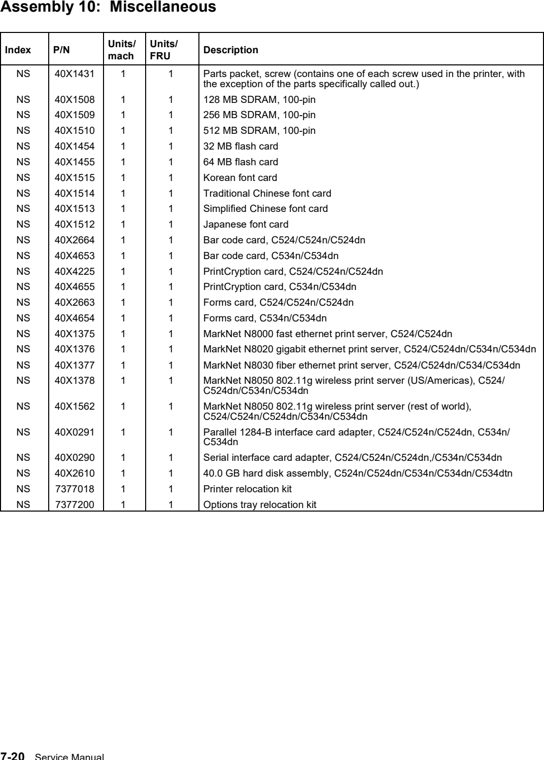

Assembly 10: Miscellaneous NS 40X1431 Parts packet, screw (contains one of each screw used in the printer, with the exception of the parts specifically called out.) NS 40X1508 128 MB SDRAM, 100-pin Lexmark 40X1508 Lexmark Brand 128MB Memory New 40X1508 (New) $27.50 Lexmark 40X1508 Lexmark Brand 128MB Memory Fully refurbished with 90-day warranty 40X1508 $24.50 NS 40X1509 256 MB SDRAM, 100-pin Lexmark 40X1509 Lexmark Brand 256 MB DIMM New 40X1509 (New) $71.21 Lexmark 40X1509 Lexmark Brand 256 MB DIMM Fully refurbished with 90-day warranty 40X1509 $69.71 NS 40X1510 512 MB SDRAM, 100-pin Lexmark 40x1510 512MB DDR Memory New 40X1510 40X5939 (New) $199.00 Lexmark 40x1510 512MB DDR Memory Fully refurbished with 90-day warranty 40X1510 40X5939 Compatible $49.00 NS 40X1454 32 MB flash card Lexmark 40X1454 32MB Flash Memory Card New 40X1454 (New) $174.72 Lexmark 40X1454 32MB Flash Memory Card Fully refurbished with 90-day warranty 40X1454 $175.00 NS 40X1455 64 MB flash card Lexmark 40X1455 64MB Flash Memory Card New 40X1455 (New) Contact for Details Lexmark 40X1455 64MB Flash Memory Card Fully refurbished with 90-day warranty 40X1455 Contact for Details NS 40X1515 Korean font card NS 40X1514 Traditional Chinese font card NS 40X1513 Simplified Chinese font card NS 40X1512 Japanese font card NS 40X2664 Bar code card, C524/C524n/C524dn NS 40X4653 Bar code card, C534n/C534dn NS 40X4225 PrintCryption card, C524/C524n/C524dn NS 40X4655 PrintCryption card, C534n/C534dn NS 40X2663 Forms card, C524/C524n/C524dn NS 40X4654 Forms card, C534n/C534dn NS 40X1375 MarkNet N8000 fast ethernet print server, C524/C524dn Lexmark 40X1375 MarkNet N8000 Fast Ethernet Fully refurbished with 90-day warranty 40X1375 $195.00 NS 40X1376 MarkNet N8020 gigabit ethernet print server, C524/C524dn/C534n/C534dn Lexmark 40X1376 MarkNet N8020 GigaBit Ethernet New 40X1376 (New) $175.00 Lexmark 40X1376 MarkNet N8020 GigaBit Ethernet Fully refurbished with 90-day warranty 40X1376 $125.00 NS 40X1377 MarkNet N8030 fiber ethernet print server, C524/C524dn/C534/C534dn Lexmark 40X1377 MarkNet N8030 Fiber Ethernet 100BaseTX New 40X1377 (New) Contact for Details Lexmark 40X1377 MarkNet N8030 Fiber Ethernet 100BaseTX Fully refurbished with 90-day warranty 40X1377 Contact for Details NS 40X1378 MarkNet N8050 802.11g wireless print server (US/Americas), C524/ C524dn/C534n/C534dn Lexmark 40X1378 MarkNet N8050 802.11g Wireless Print Server US New 40X1378 (New) Contact for Details Lexmark 40X1378 MarkNet N8050 802.11g Wireless Print Server US Fully refurbished with 90-day warranty 40X1378 Contact for Details NS 40X1562 MarkNet N8050 802.11g wireless print server (rest of world), C524/C524n/C524dn/C534n/C534dn Lexmark 40X1562 MarkNet N8050 802.11g Wireless Print Server Not-US New 40X1562 (New) Contact for Details Lexmark 40X1562 MarkNet N8050 802.11g Wireless Print Server Not-US Fully refurbished with 90-day warranty 40X1562 Contact for Details NS 40X0291 Parallel 1284-B interface card adapter, C524/C524n/C524dn, C534n/ C534dn Lexmark 40X0291 Parallel 1284B Card Assembly New 40X0291 (New) $15.00 NS 40X0290 Serial interface card adapter, C524/C524n/C524dn,/C534n/C534dn Lexmark 40X0290 Serial RS232C Card Assembly New 40X0290 56P1436 (New) $15.00 NS 40X2610 40.0 GB hard disk assembly, C524n/C524dn/C534n/C534dn/C534dtn Lexmark 40x2610 Hard disk with adapter - 40+ GB New 40x2610 (New) Contact for Details NS 7377018 Printer relocation kit NS 7377200 Options tray relocation kit
Other listed parts 40X3613 Top Cover Camshaft Assembly Lexmark 40X3613 Top Cover Camshaft Assembly New 40X3613 40X3619 (New) $19.21
